Door Lock Actuator Motor, Left & Right Front & Rear

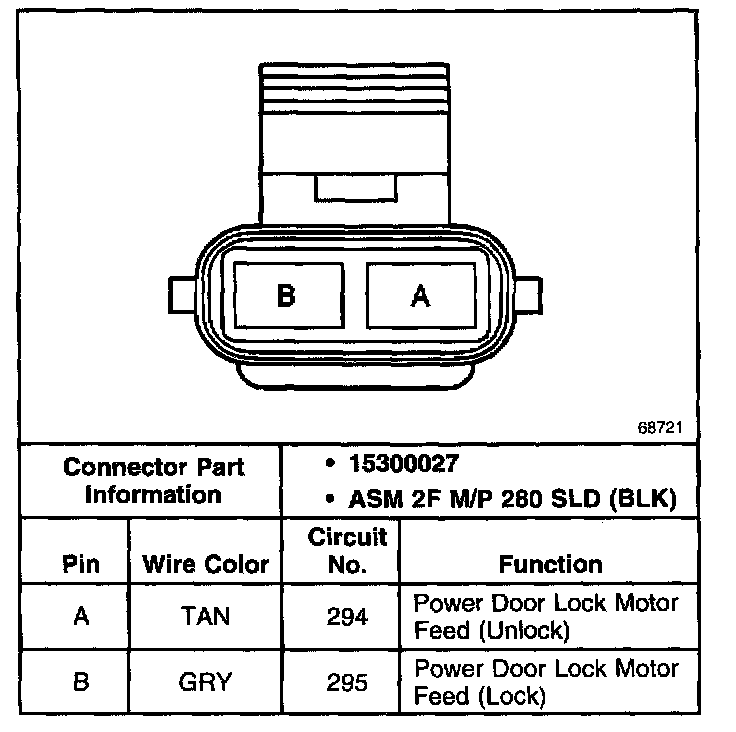

Door Lock Actuator Motor, Left Front, Right Front And Rear Connector:
