Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Heating and Ventilation >> Heater and A/C Controller C2 Connector

Heater and A/C Controller C2 Connector

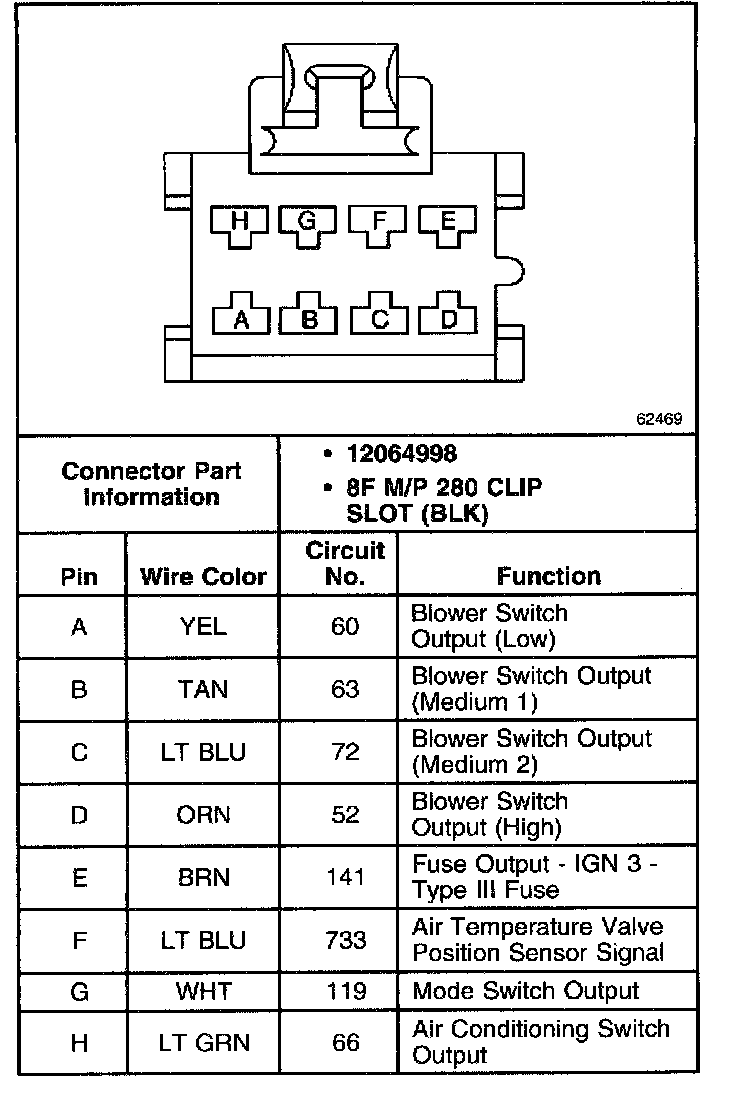

Heater And A/C Controller C2 Connector:
