Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> HVAC System - Manual >> Heater and A/C Control Logic Module Connector

Heater and A/C Control Logic Module Connector

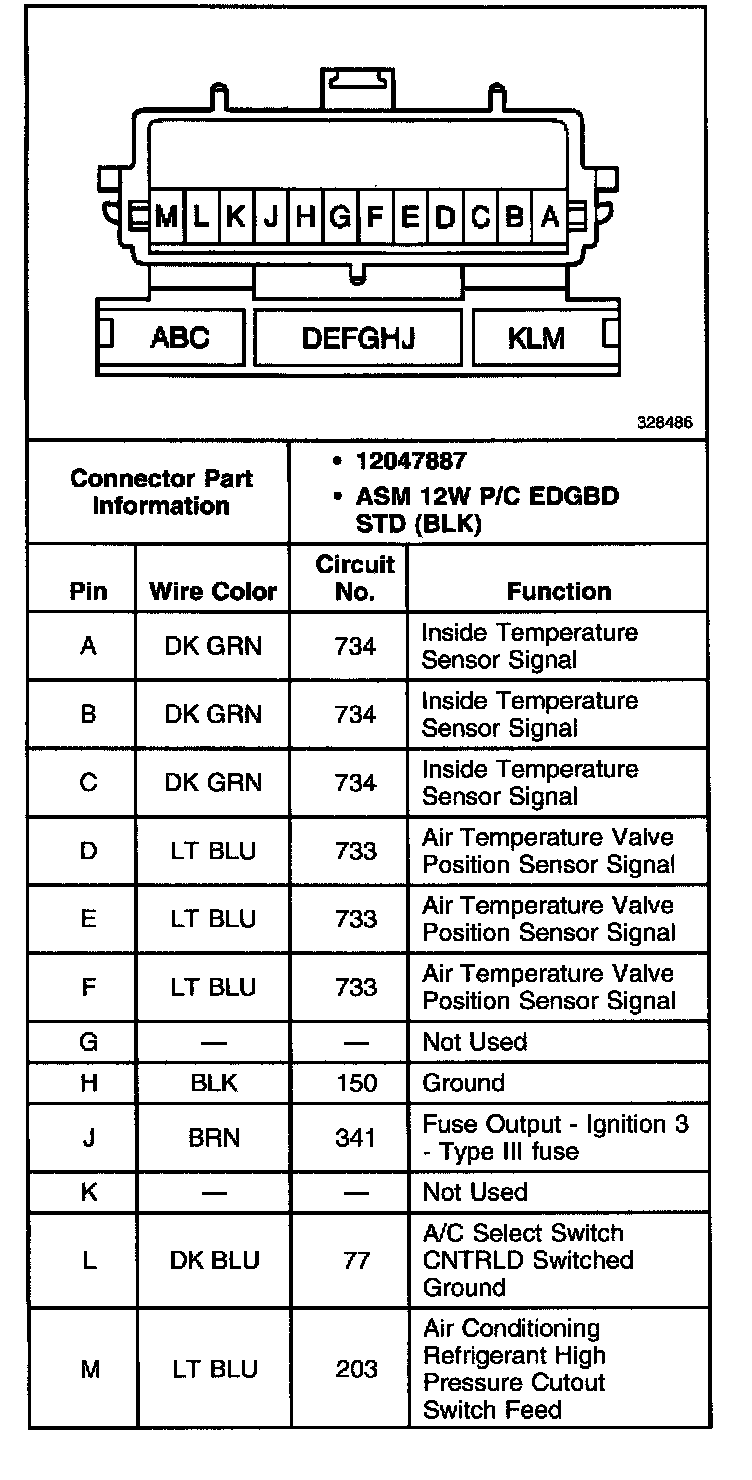

Heater And A/C Control Logic Module Connector:
