Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> HVAC System - Manual >> Front Auxiliary HVAC Control Module Connector >> Cargo

Cargo

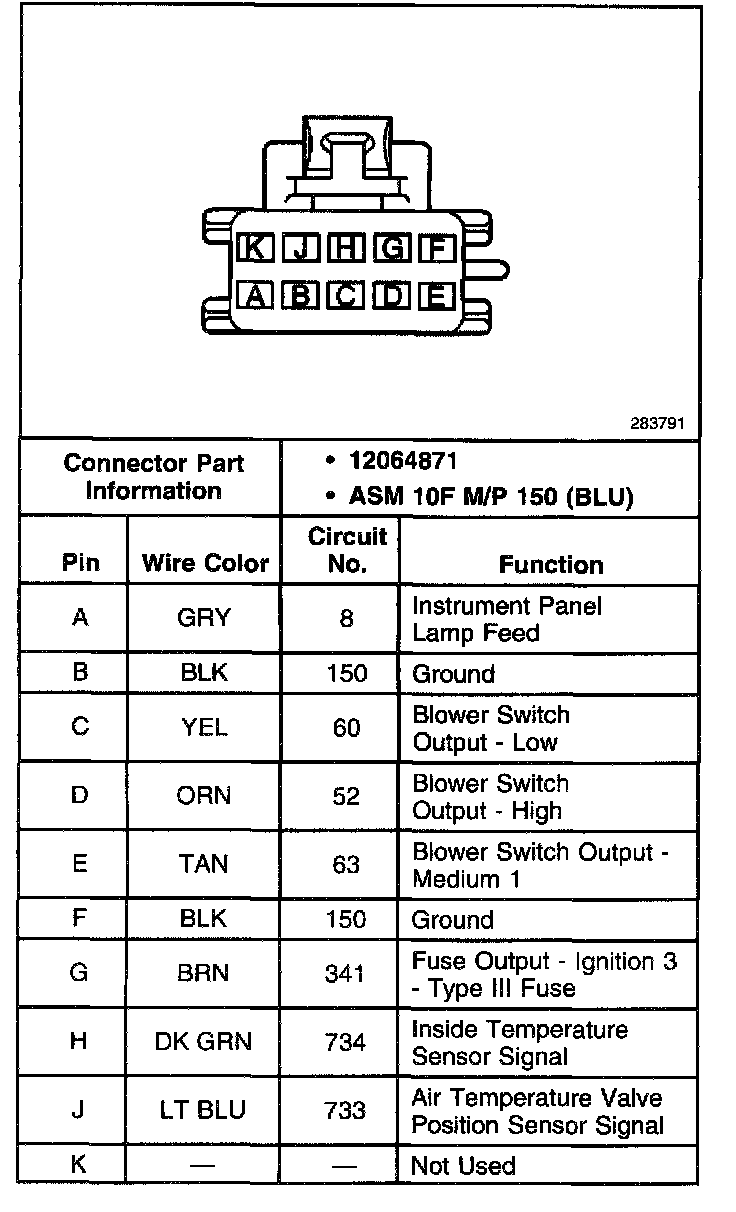

Front Auxiliary HVAC Control Module Connector: Cargo:
