Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C400 (W/O Keyless Entry)

C400 (W/O Keyless Entry)

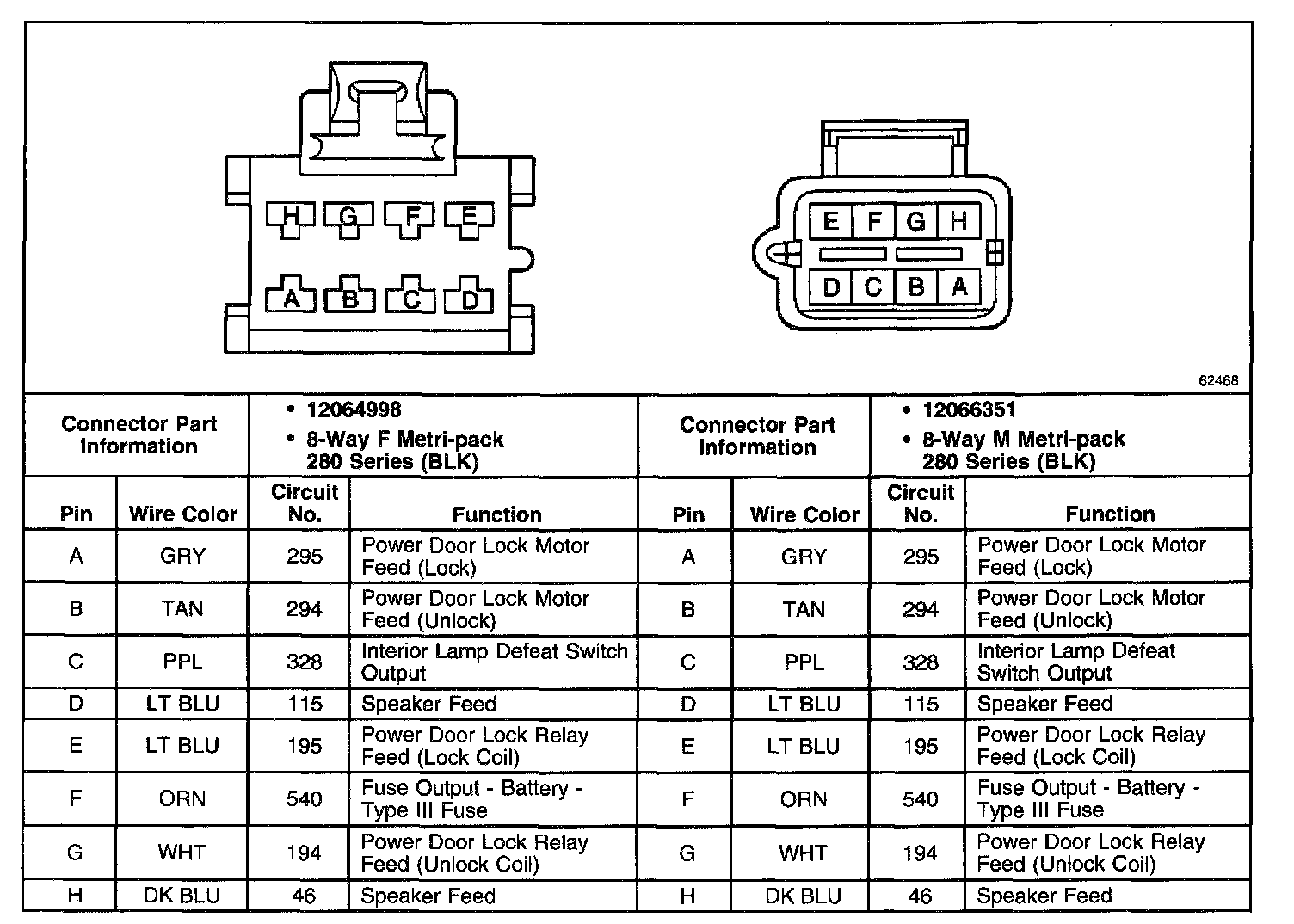

In-line Harness Connector C400 (W/O Keyless Entry):
