C216, Inflatable Restraint IP Module (Right)

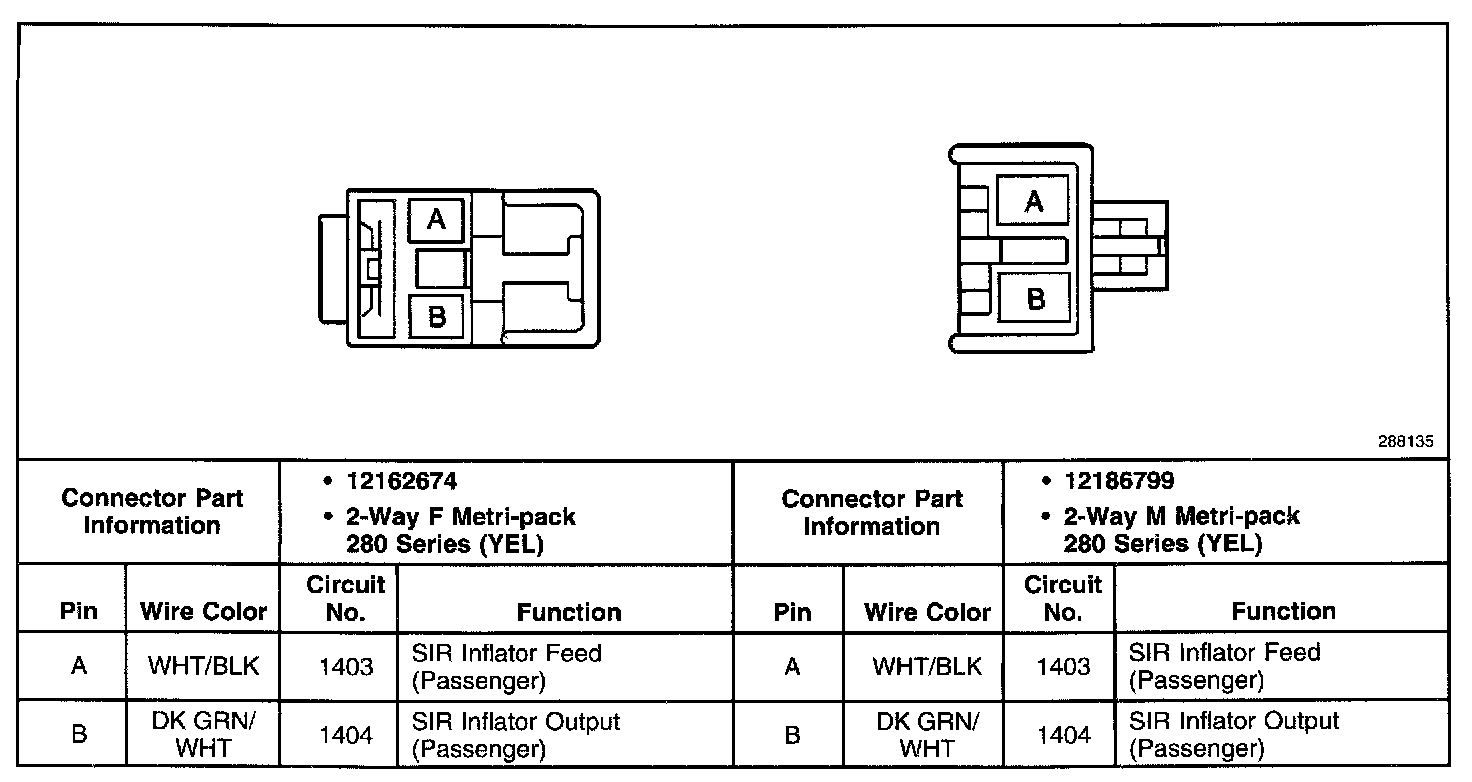

In-line Harness Connector C216, Inflatable Restraint IP Module (Right):
