C200
C200

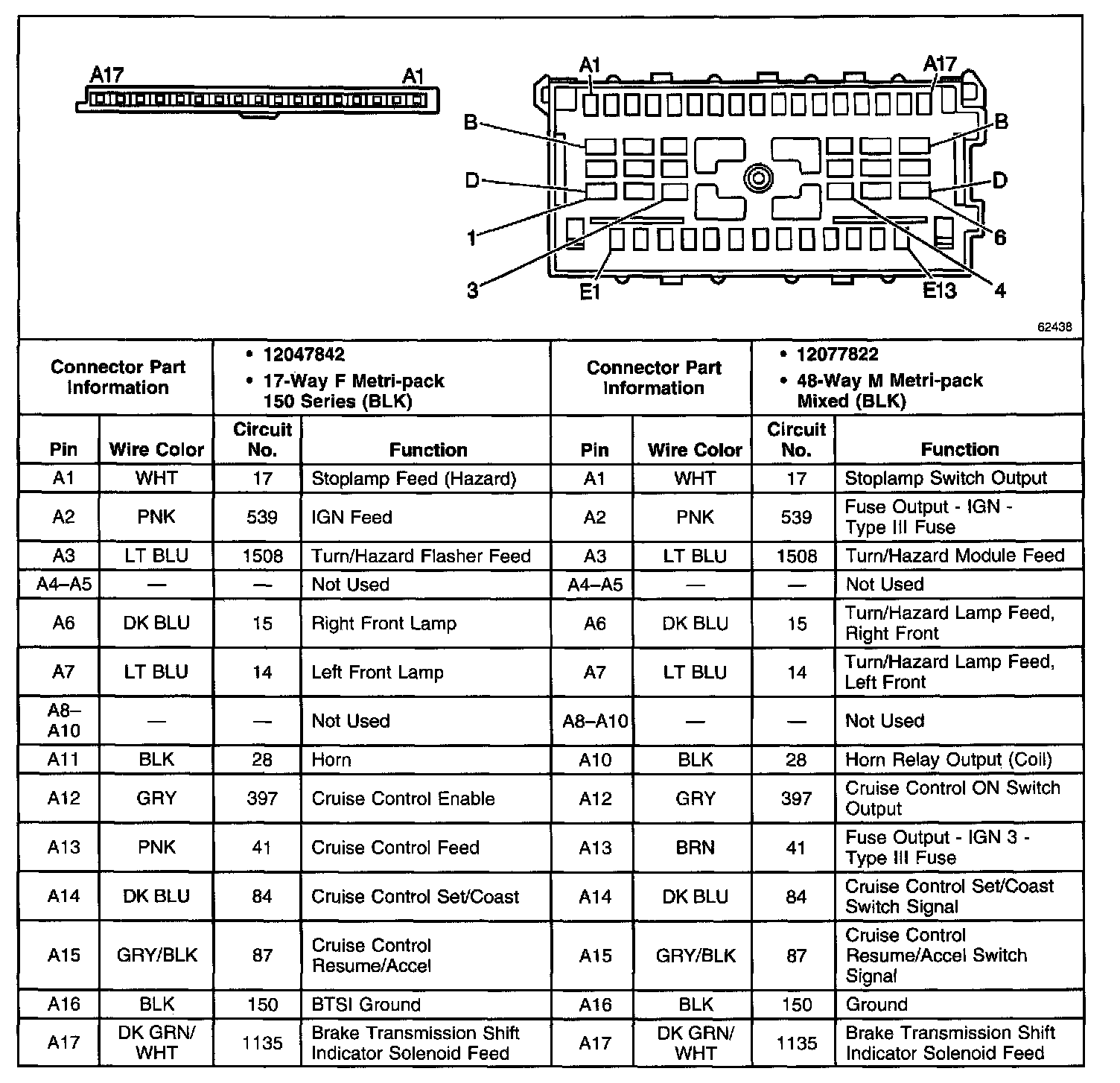

In-line Harness Connector C200 (Gasoline) (Part 1 Of 3):

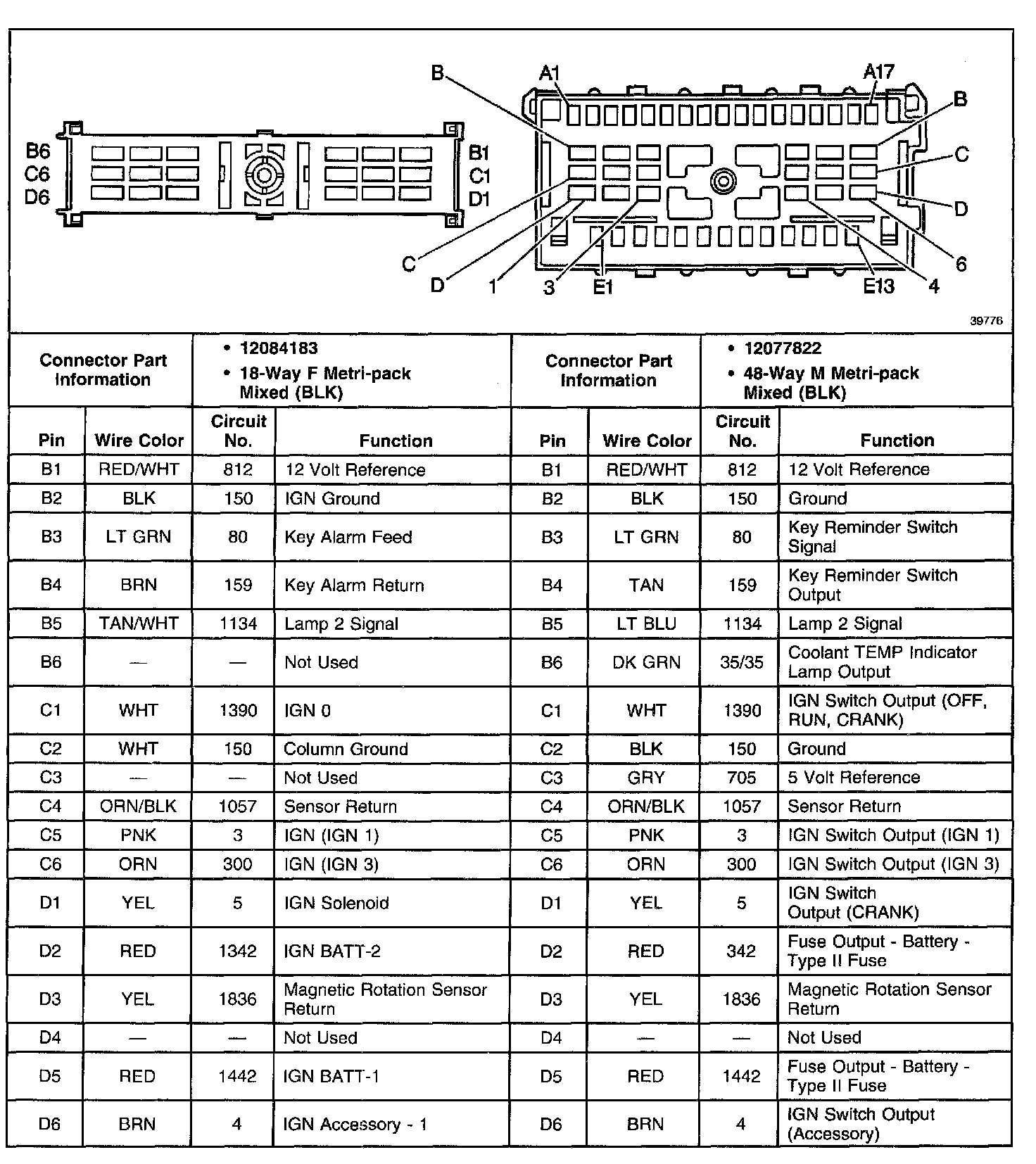

In-line Harness Connector C200 (Gasoline) (Part 2 Of 3):

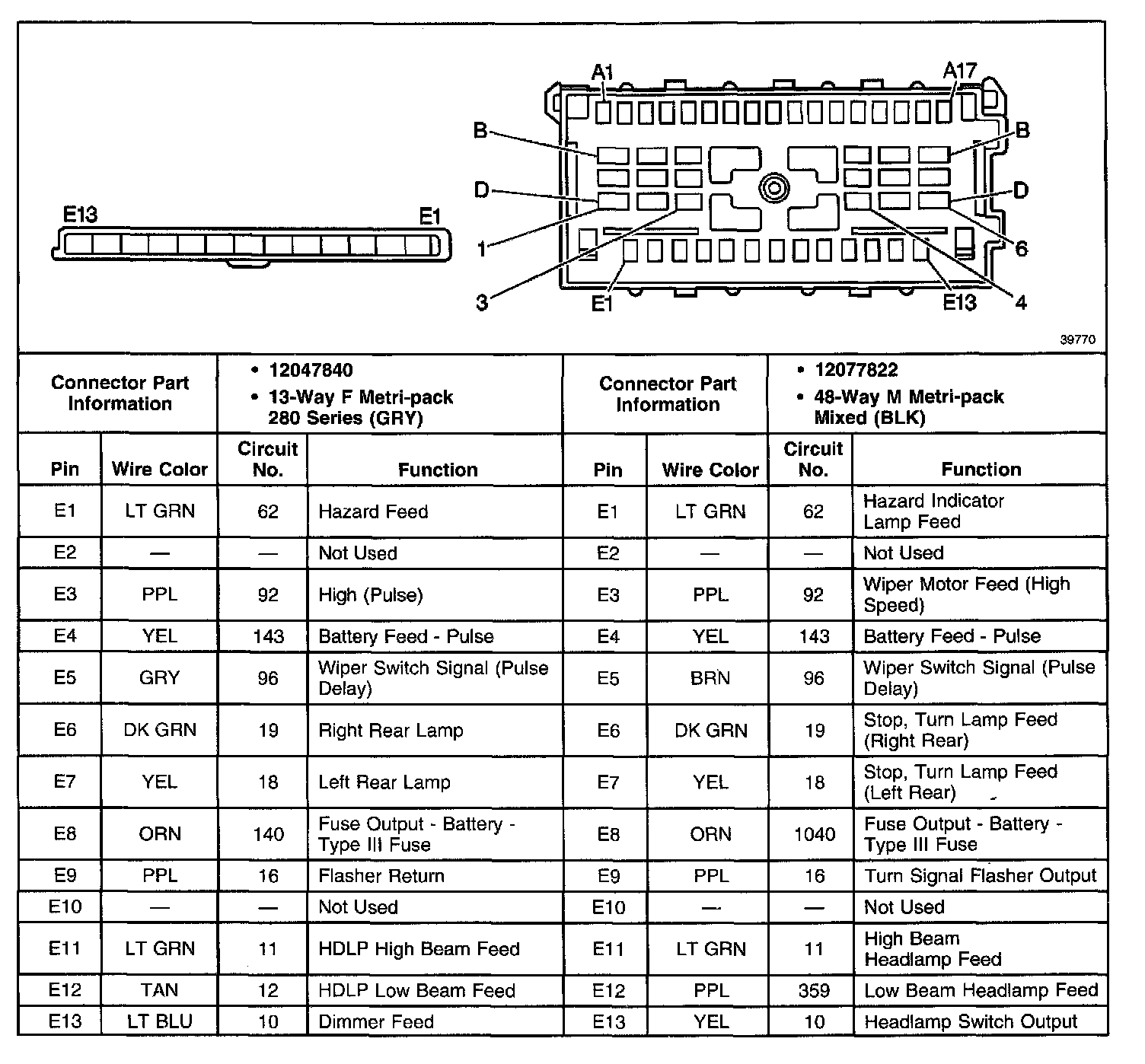

In-line Harness Connector C200 (Gasoline) (Part 3 Of 3):
