Rear Auxiliary Mode Valve And Seal Assembly Connector
Rear Auxiliary Mode Valve And Seal Assembly Connector

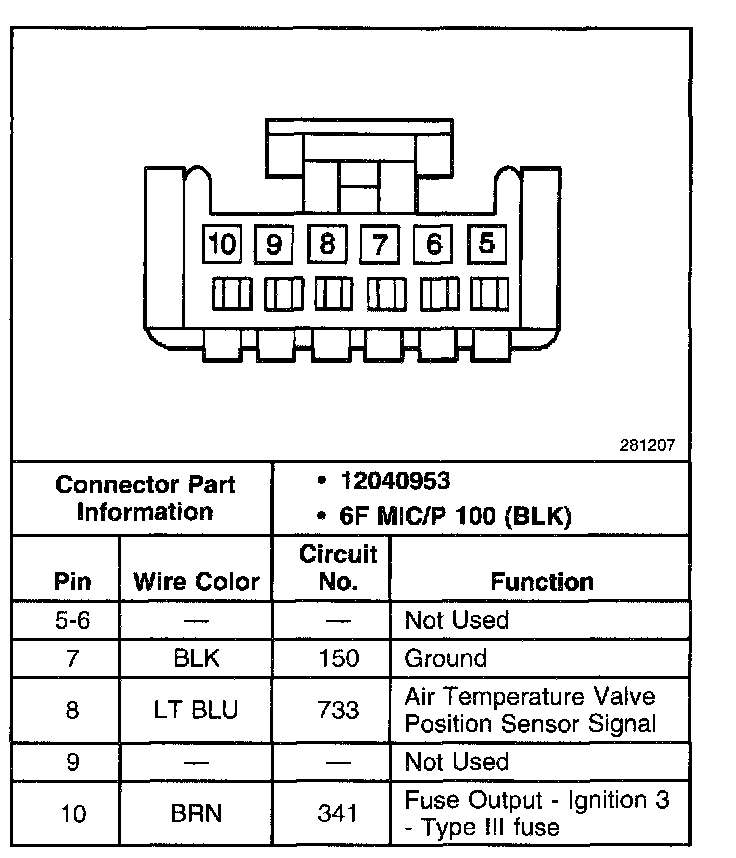

Rear Auxiliary Mode Valve And Seal Assembly Connector:
