Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Inflatable Restraint Steering Wheel Module

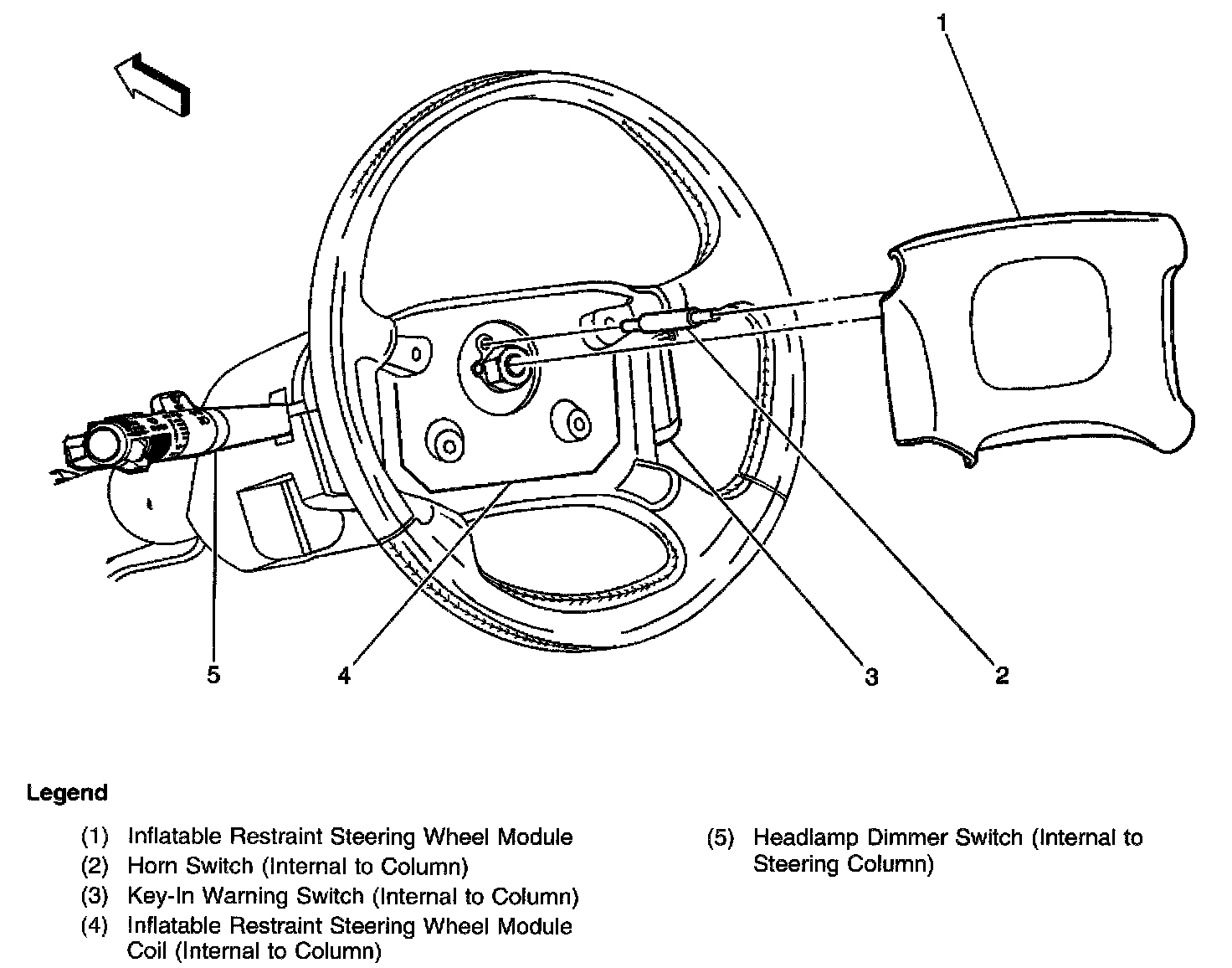

Inflatable Restraint Steering Wheel Module

Inflatable Restraint Steering Wheel Module, Horn Switch, Key-in Warning Switch, Inflatable Restraint Steering Wheel Module Coil, Headlamp Dimmer Switch:
