Vacuum Brake Booster Replacement (Intake Valve)

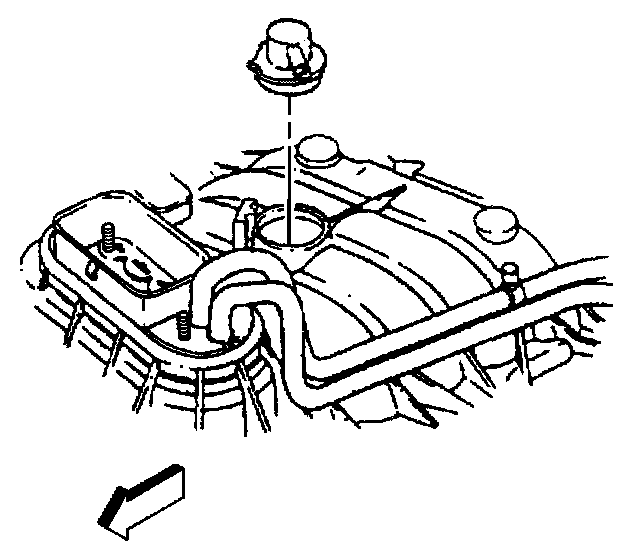

REMOVAL PROCEDURE
1. Remove the vacuum hose from the intake valve.





2. Remove the intake valve by carefully twisting the intake valve counterclockwise off of the retainer.
3. Remove the power brake booster intake valve.

INSTALLATION PROCEDURE
1. Install the power brake booster intake valve.





2. Install the intake valve by carefully twisting the intake valve clockwise onto the retainer.
3. Install the vacuum hose to the intake valve.
