Tube Adapter Replacement

REMOVAL PROCEDURE

IMPORTANT: If you must remove more than one tube adapter at one time, stamp the BPMV with a number (1, 2 or 3) in order to indicate the number of grooves cut into the tube adapters. This procedure will aid proper reassembly.





1. Raise the vehicle and properly support.

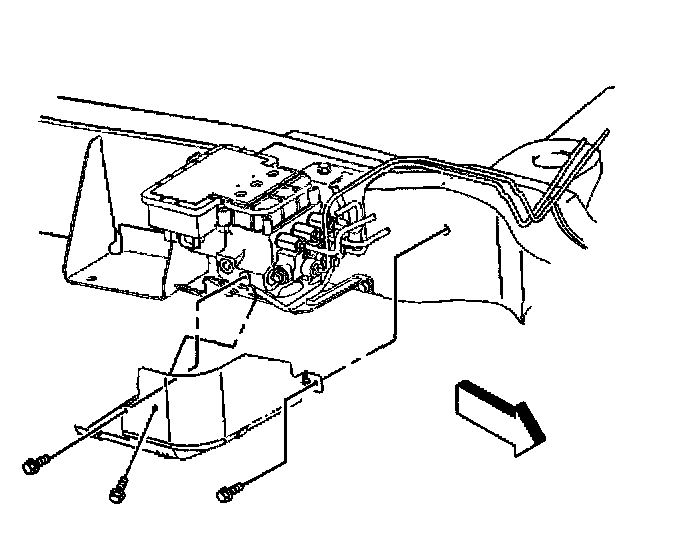

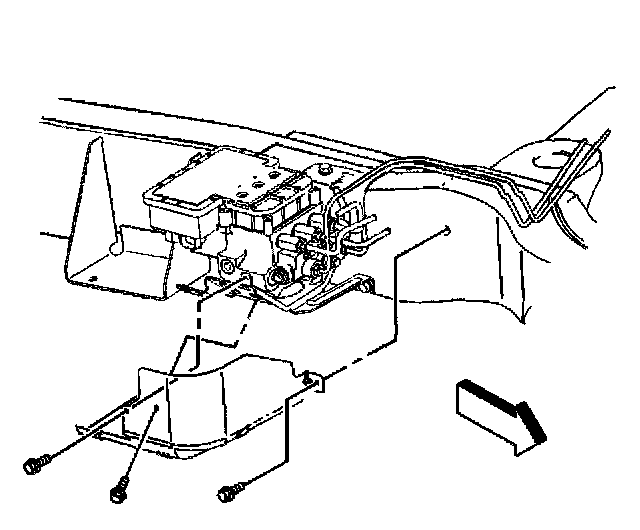

2. Remove the three Electro-Hydraulic Control Unit (EHCU) shield bolts and shield.





3. Remove the appropriate brake line from the tube adapter.

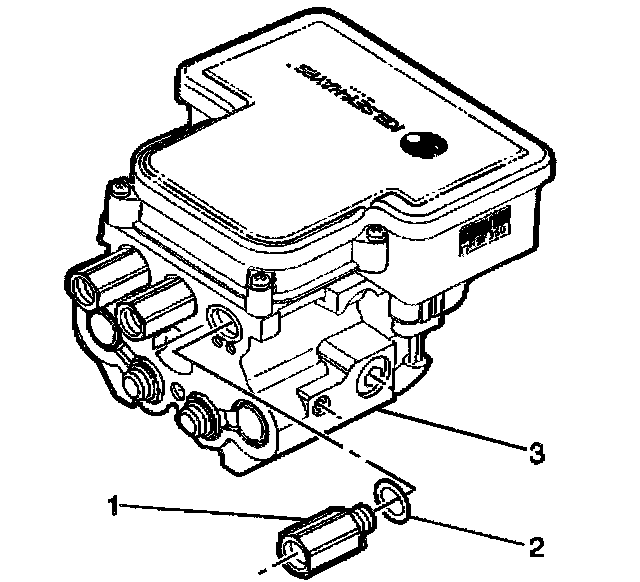

4. Remove the tube adapter (1).

INSTALLATION PROCEDURE

NOTICE: Refer to Fastener Notice in Service Precautions.

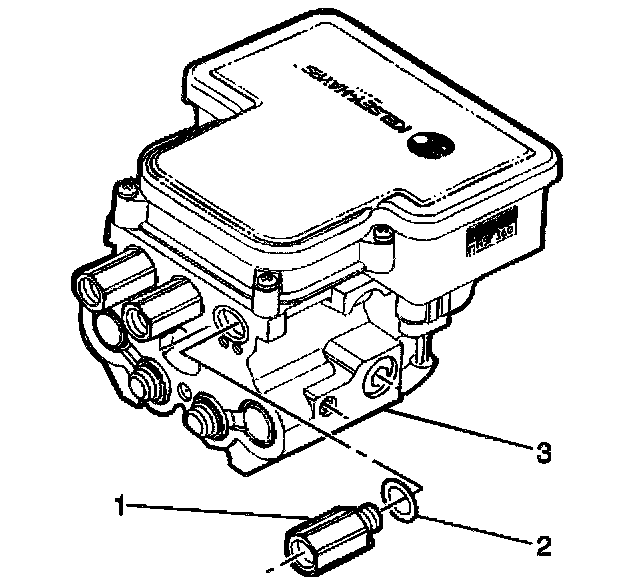

1. Install the new tube adapter (1).

^ Tighten the tube adapter to 31 Nm (23 ft. lbs.).





2. Install the brake line.

^ Tighten the brake line to 30 Nm (22 ft. lbs.).

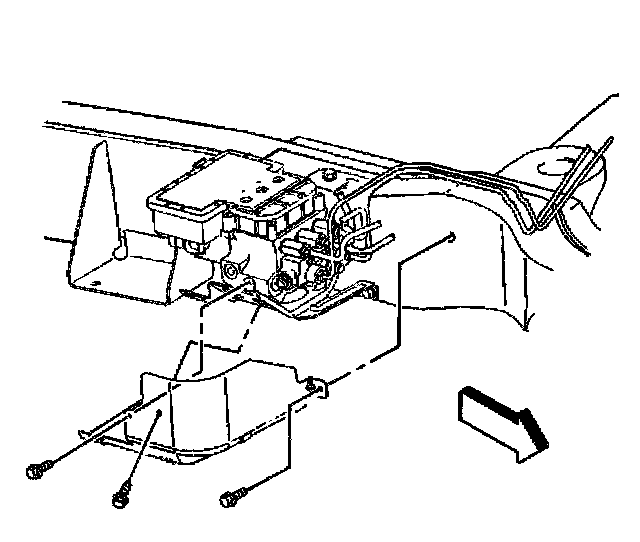

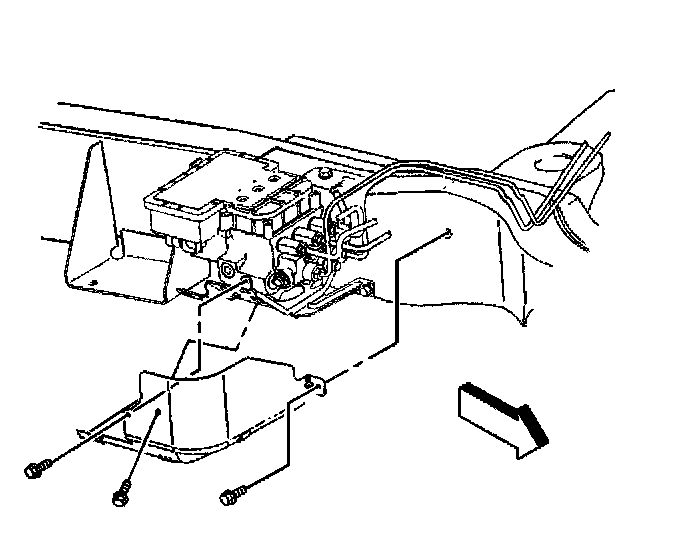

3. Install the three Electro-Hydraulic Control Unit (EHCU) shield bolts and shield.

^ Tighten the EHCU shield bolts to 12 Nm (8 ft. lbs.).

4. Bleed the system.
