Brake Pipe Replacement(Front Brake Pipe)

REMOVAL PROCEDURE

CAUTION: Refer to Brake Pipe Replacement Caution in Service Precautions.

IMPORTANT: Brake pipes that run parallel to each other must maintain a 6 mm (1/4 inch) clearance.

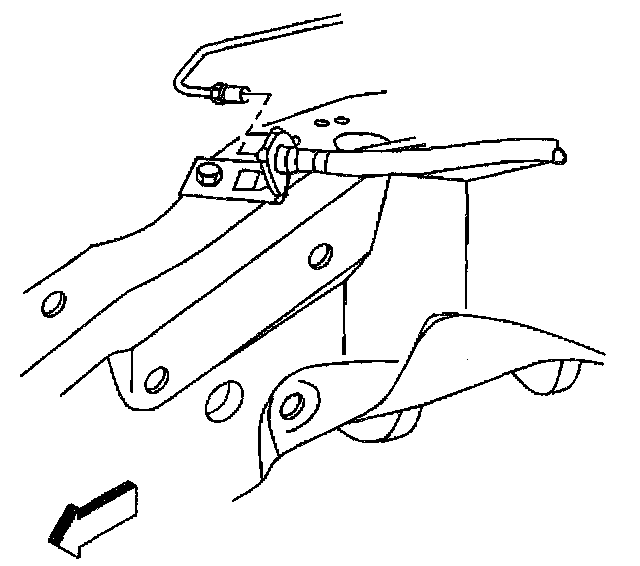

1. Disconnect the front brake pipe from the front brake hose.

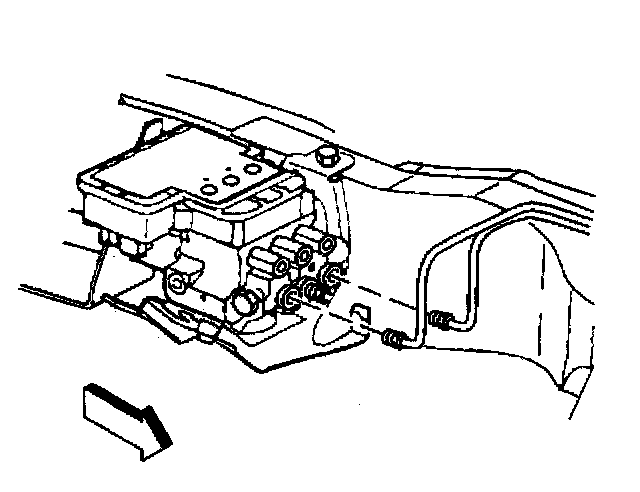

2. Disconnect the front brake pipe from the Electronic Brake Control Module (EBCM) unit.

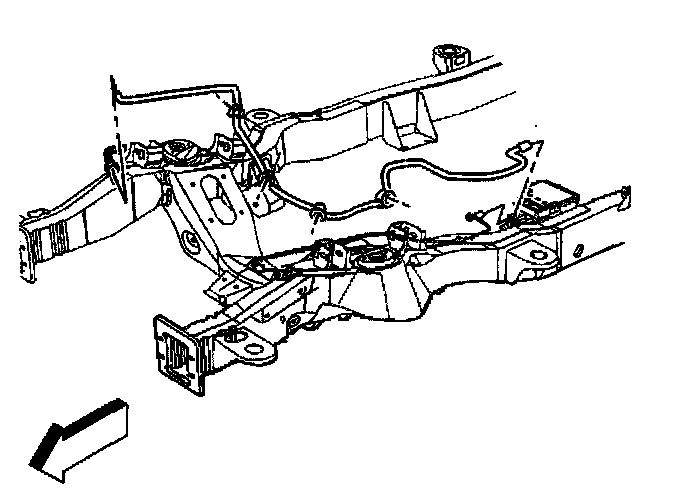

3. Remove the retaining clips of the brake pipe from the frame.
4. Remove the from brake pipe from the vehicle.

INSTALLATION PROCEDURE

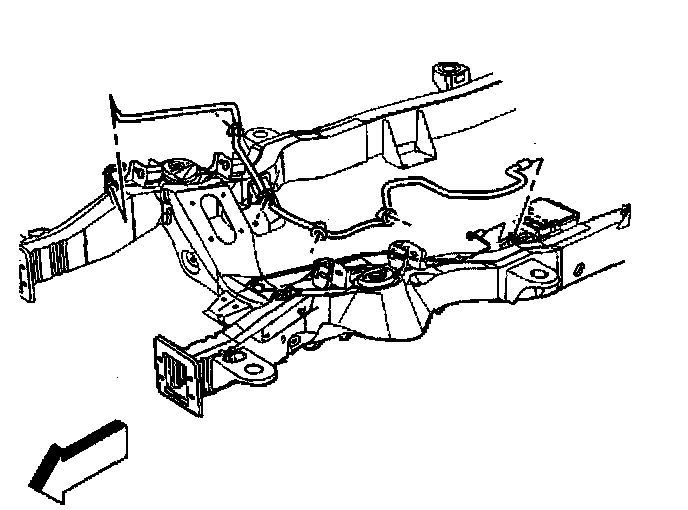

1. Install the front brake pipe to the vehicle.





2. Install the retaining clips of the brake pipe to the frame.

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Connect the brake pipe to the Electronic Brake Control Module (EBCM) unit.

^ Tighten the front brake pipe to the EBCM unit to 20 Nm (15 ft. lbs.).

4. Connect the front brake pipe to the front brake hose.

^ Tighten the front brake pipe to the front brake hose to 20 Nm (15 ft. lbs.).

5. Bleed the brake hydraulic system.
