Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams >> CTSY Fuse, G200, G201

CTSY Fuse, G200, G201

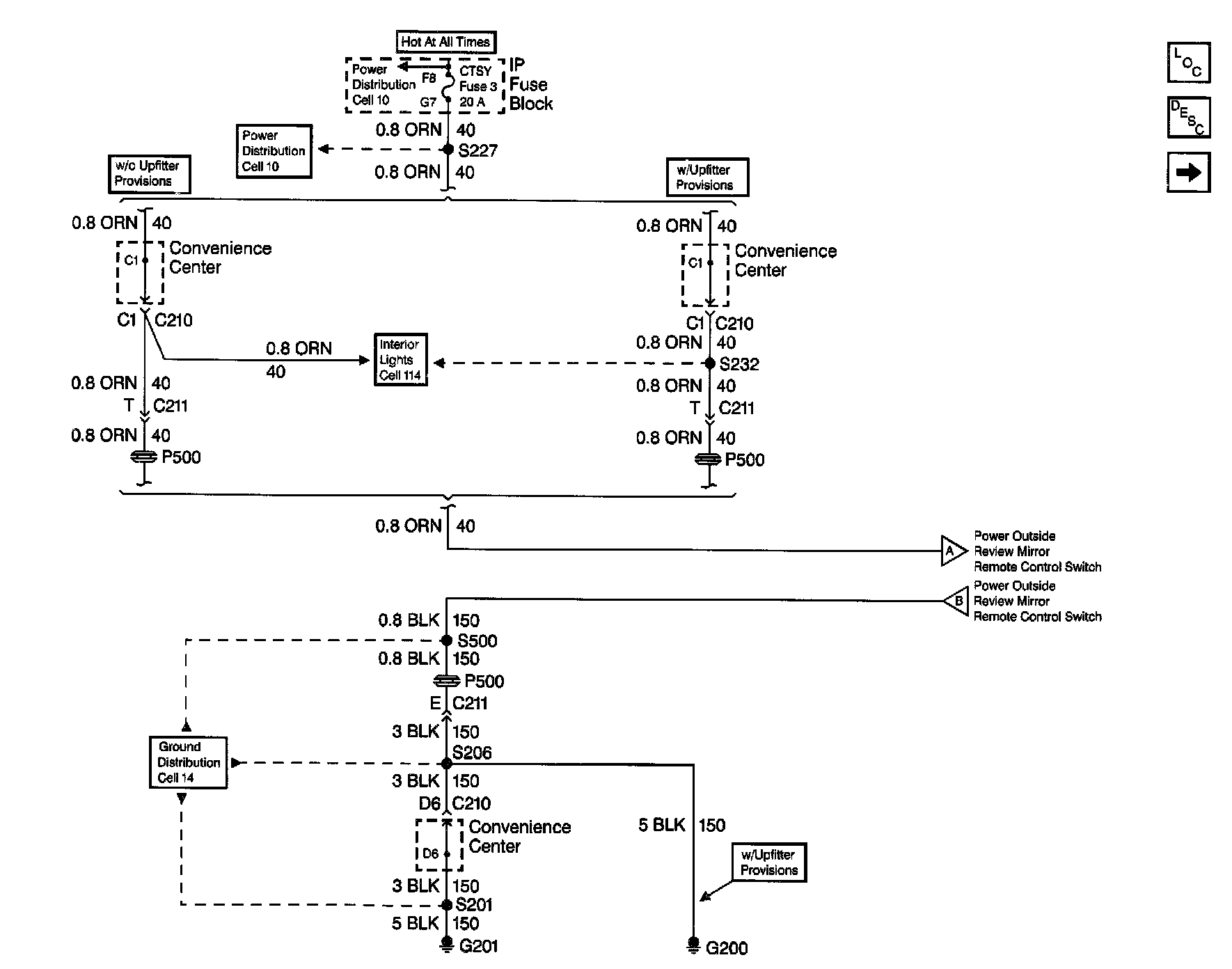

Outside Mirror Schematics: CTSY Fuse, G200, G201:
