Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Diagrams >> Electrical Diagrams >> Power Door Lock Relay

Power Door Lock Relay

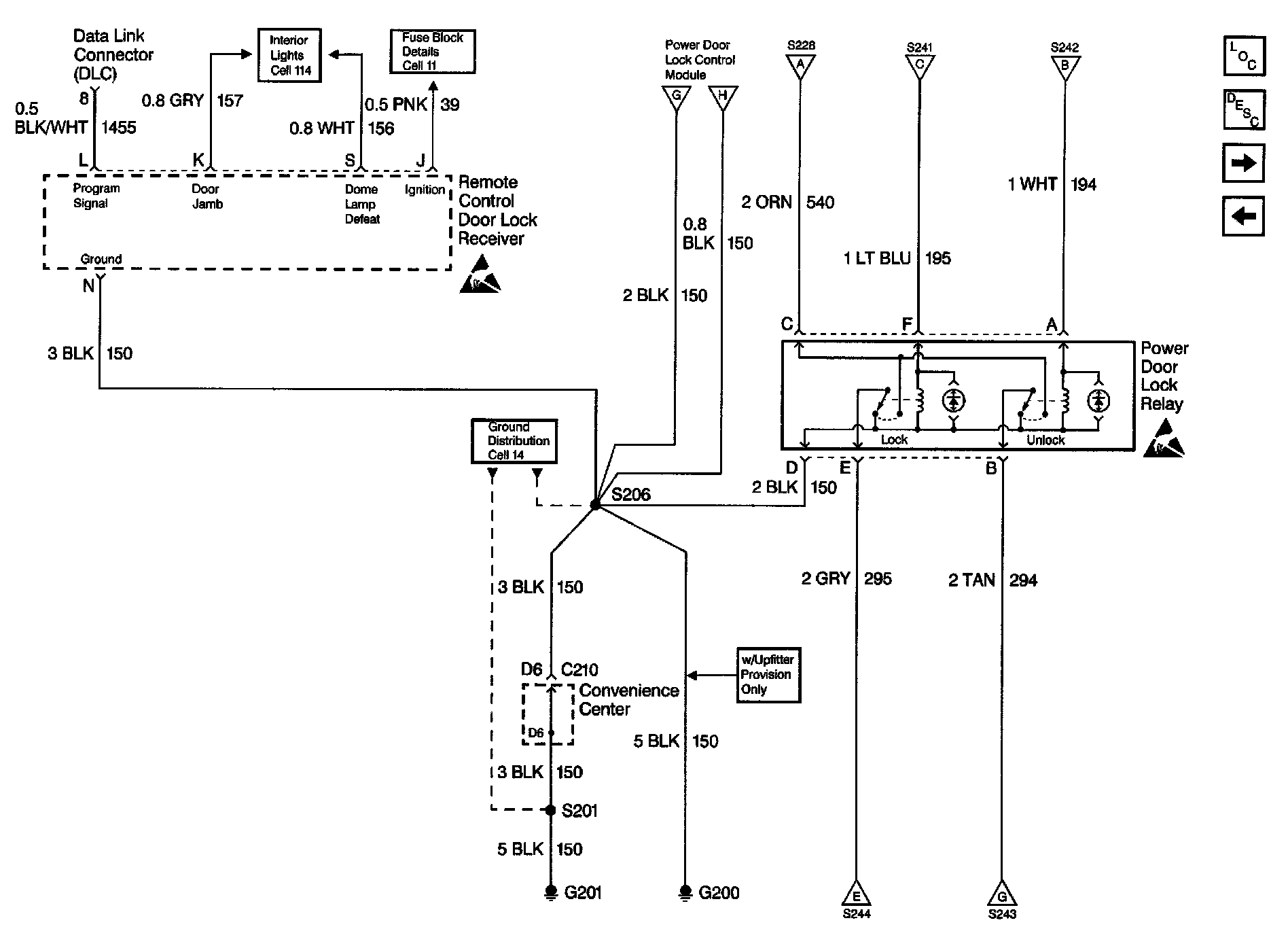

Keyless Entry Schematics: Power Door Lock Relay:
