Lock Cylinder Replacement - Door (Side and Rear Door)

REMOVAL PROCEDURE




1. Remove the side front door trim panel.
2. Remove the side front door outside handle.

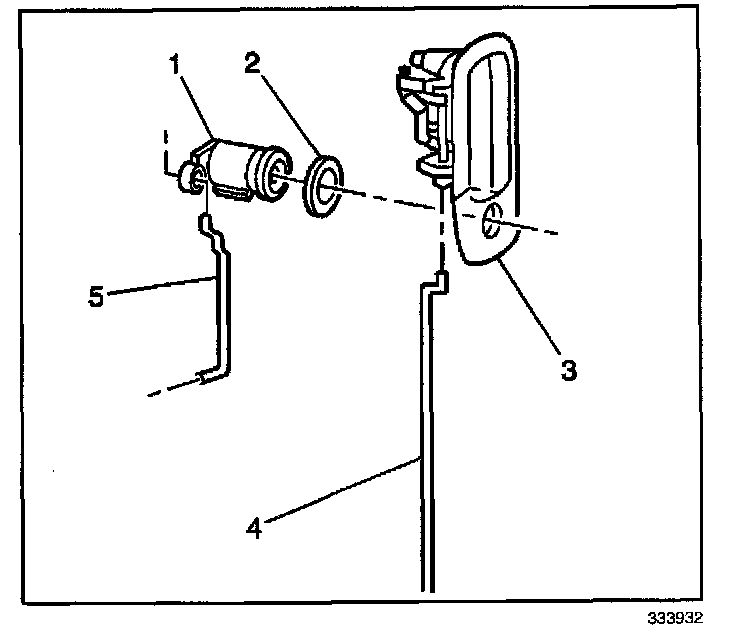

3. Remove the clip that retains the lock cylinder lever to the lock cylinder (1).
4. Press the lock cylinder retainer.
Remove the lock cylinder (1) from the side front door outside handle (3).

INSTALLATION PROCEDURE

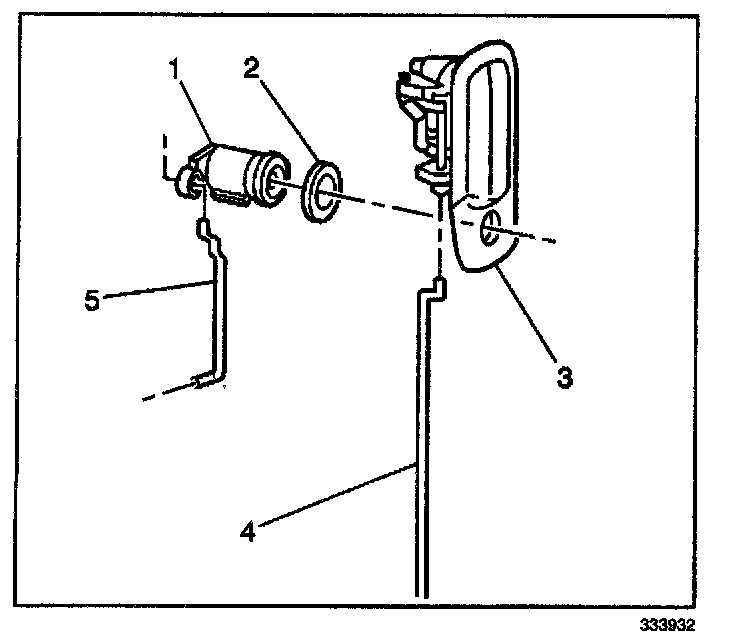

1. Press the lock cylinder (1) into the handle (3) in order to engage the lock cylinder retainer.
2. Install the clip that retains the lock cylinder lever to the lock cylinder (1).
3. Install the side front door outside handle.
4. Install the side front door trim panel.
