(UA6)

REMOVAL PROCEDURE

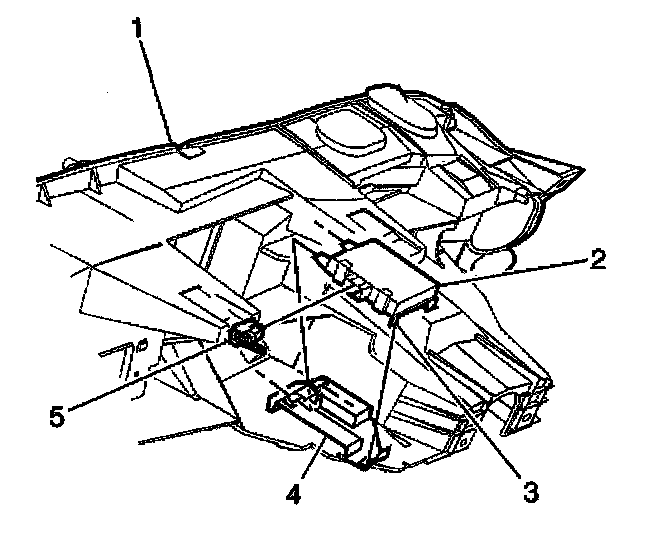

1. Push the tab (3) at the rear of the passlock control module in order to release the module from the passlock control module bracket (4).
2. Slide the passlock control module (2) out of the passlock control module bracket (4).
3. Disconnect the electrical connector (5) from the passlock control module (2).
4. Remove the passlock control module (2) from the vehicle.

INSTALLATION PROCEDURE
1. Install the passlock control module (2) to the vehicle.
2. Connect the electrical connector (5) to the passlock control module (2).
3. Slide the passlock control module (2) in to the passlock control module bracket (4).
4. Push down on the passlock control module (2) in order to engage the retaining tab (3) on the passlock control module to the passlock module bracket (4).
