Antenna Cable: Service and Repair

REMOVAL PROCEDURE




1. Remove the radio.
2. Remove the radio mounting bracket.
3. Remove the engine cover.
4. Disconnect the antenna cable connector at the lower right of the instrument panel.

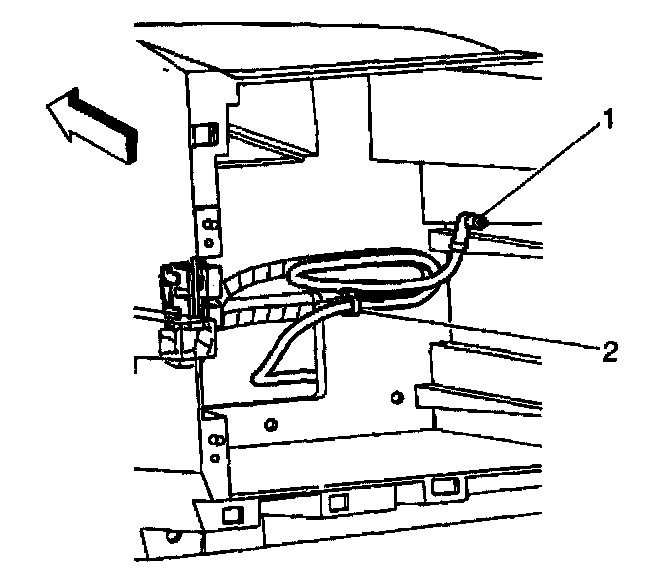

5. Remove the antenna cable (1) from the retaining clips on the instrument panel carrier.




6. Remove the antenna cable (1) from the vehicle.

INSTALLATION PROCEDURE




1. Install the antenna cable (1) to the vehicle.




2. Install the cable (1) to the retaining clips on the instrument panel carrier.
3. Connect the antenna cable connector at the lower right of the instrument panel.
4. Install the engine cover.
5. Install the radio mounting bracket.
6. Install the radio.
