P0154

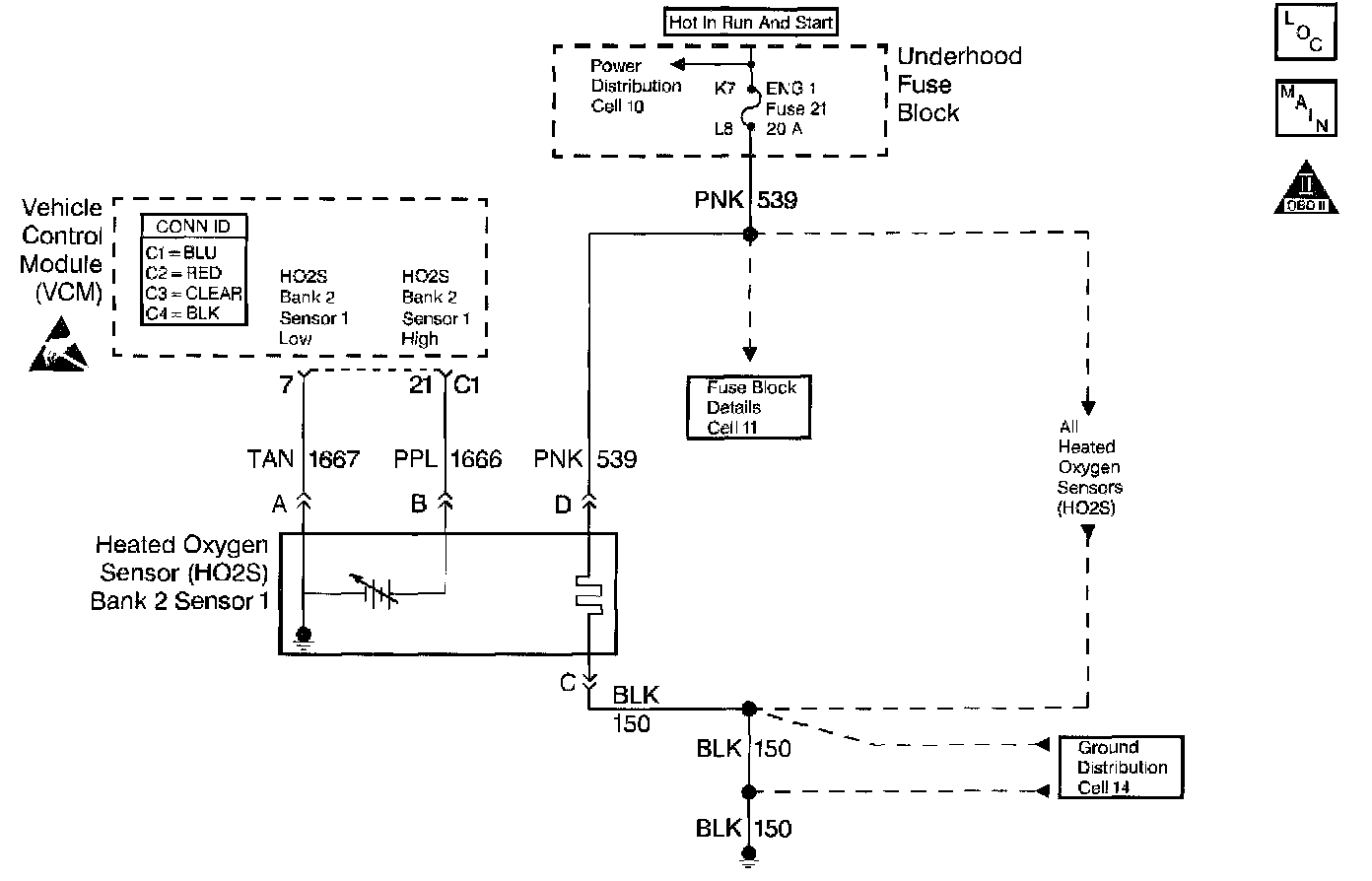

Circuit Description
The Heated Oxygen Sensor (HO2S) is a sensor designed to create a voltage relative to the oxygen content in the engine exhaust stream. The Control Module (PCM/VCM) supplies the HO2S with signal High and Low circuits. Ignition voltage and ground is supplied to the HO2S heater by independent circuits. The oxygen content of the exhaust indicates when the engine is operating lean or rich. When the HO2S detects that the engine is operating rich, the signal voltage is high, and decreases the signal voltage as the engine runs leaner. This oscillation above and below the bias voltage, sometimes referred to as activity or switching, can be monitored with the HO2S signal voltage.

The HO2S contains a heater that is necessary in order to quickly warm the sensor to operating temperature and maintain the operating temperature during extended idle conditions. The HO2S needs to be at a high temperature in order to produce a voltage. Once the HO2S has reached operating temperature, the Control Module monitors the HO2S bias, or reference, voltage as well as the HO2S signal voltage for closed loop fuel control. During normal Closed Loop fuel control operation, the Control Module will add fuel (enriches the mixture) when the HO2S detects a lean exhaust content and subtract fuel (leans-out the mixture) when the HO2S detects a rich exhaust condition.

Certain vehicle models utilize an oxygen sensor after the catalyst converter in order to monitor catalyst efficiency.

This DTC determines if the HO2S is functioning properly by checking for an adequate number of HO2S voltage transitions above and below the bias range of 300-600 mV. This DTC sets when the VCM fails to detect a minimum number of voltage transitions above and below the bias range during the test period. Possible causes of this DTC are listed below.
^ An open or a short to voltage on either the HO2S signal or HO2S low circuits.
^ A malfunctioning HO2S.
^ A problem in the HO2S heater or its circuit.
^ A poor HO2S ground

This DTC determines if the HO2S is functioning properly by checking for an adequate number of HO2S voltage transitions above and below the bias range of 300-600 mV. This DTC sets when the VCM fails to detect a minimum number of voltage transitions above and below the bias range during the test period. Possible causes of this DTC are listed below.
^ An open circuit or a short to voltage on either the HO2S signal or HO2S low circuits
^ A malfunctioning HO2S
^ A problem in the HO2S heater or its circuit
^ A poor HO2S ground

Conditions for Running the DTC
^ No active TP sensor DTCs
^ No active EVAP system DTCs
^ No active IAT sensor DTCs
^ No active MAP sensor DTCs
^ No active ECT sensor DTCs
^ No active MAF sensor DTCs
^ No active misfire DTCs
^ No intrusive tests (i.e., EGR or Catalyst) in progress
^ No device control active
^ The system voltage is between 11.7-18 volts
^ The engine run time is more than 120 seconds
^ DFCO not active
^ The ECT is 58.5°C (137°F) or more
^ The MAF is 13 g/s or more
^ DTC P0155 not active
^ The system is in closed loop

Conditions for Setting the DTC
The O2 sensor voltage is between 300-600 mV for more than 80 seconds

Action Taken When the DTC Sets
^ The Control Module illuminates the Malfunction Indicator Lamp (MIL) if a failure is detected during 2 consecutive key cycles.
^ The Control Module will set the DTC and records the operating conditions at the time the diagnostic fails. The Control Module stores the failure information in the scan tools Freeze Frame and/or the Failure Records.

Conditions for Clearing the MIL/DTC
^ The Control Module turns OFF the MIL after 3 consecutive drive trips when the test has Run and Passed.
^ A history DTC will clear if no fault conditions have been detected for 40 warm-up cycles (coolant temperature has risen 22°C (40°F) from the start-up coolant temperature and the Engine Coolant Temperature is more than 70°C (158°F) during the same ignition cycle).
^ Use the scan tool Clear Information function.

Diagnostic Aids

Important: Never solder the HO2S wires.

Check for the following conditions:
An exhaust leak typically within 30.5 cm (12 in.) up-stream of the HO2S. Refer to Exhaust System inspection.

A malfunctioning HO2S heater or heater circuit
With the ignition ON and the engine OFF, the HO2S voltage displayed on a scan tool should gradually drop to below 0.150 volt, indicating that the heater works properly. If not, disconnect the HO2S and connect a test lamp between the terminals C and D. If the test lamp does not light, repair the open in the HO2S ground circuit or the HO2S ignition positive voltage circuit. If the test lamp lights, replace the HO2S.

The Intermittent Test
Use a scan tool in order to monitor this HO2S signal voltage. Move the related connectors and the wiring harness with a warm engine running at part throttle in Closed Loop. If the failure is induced, the HO2S signal voltage reading changes from its normal fluctuating voltage (above 600 mV and below 300 mV) to a fixed value around 450 mV. This may help to isolate the location of the malfunction.

An intermittent may be caused by any of the following conditions:
^ A poor connection
^ Rubbed through wire insulation
^ A broken wire inside the insulation

Thoroughly check any circuitry that is suspected of causing the intermittent complaint. Refer to Intermittents and Poor Connections Diagnosis. Symptom Related Diagnostic Procedures

Test Description

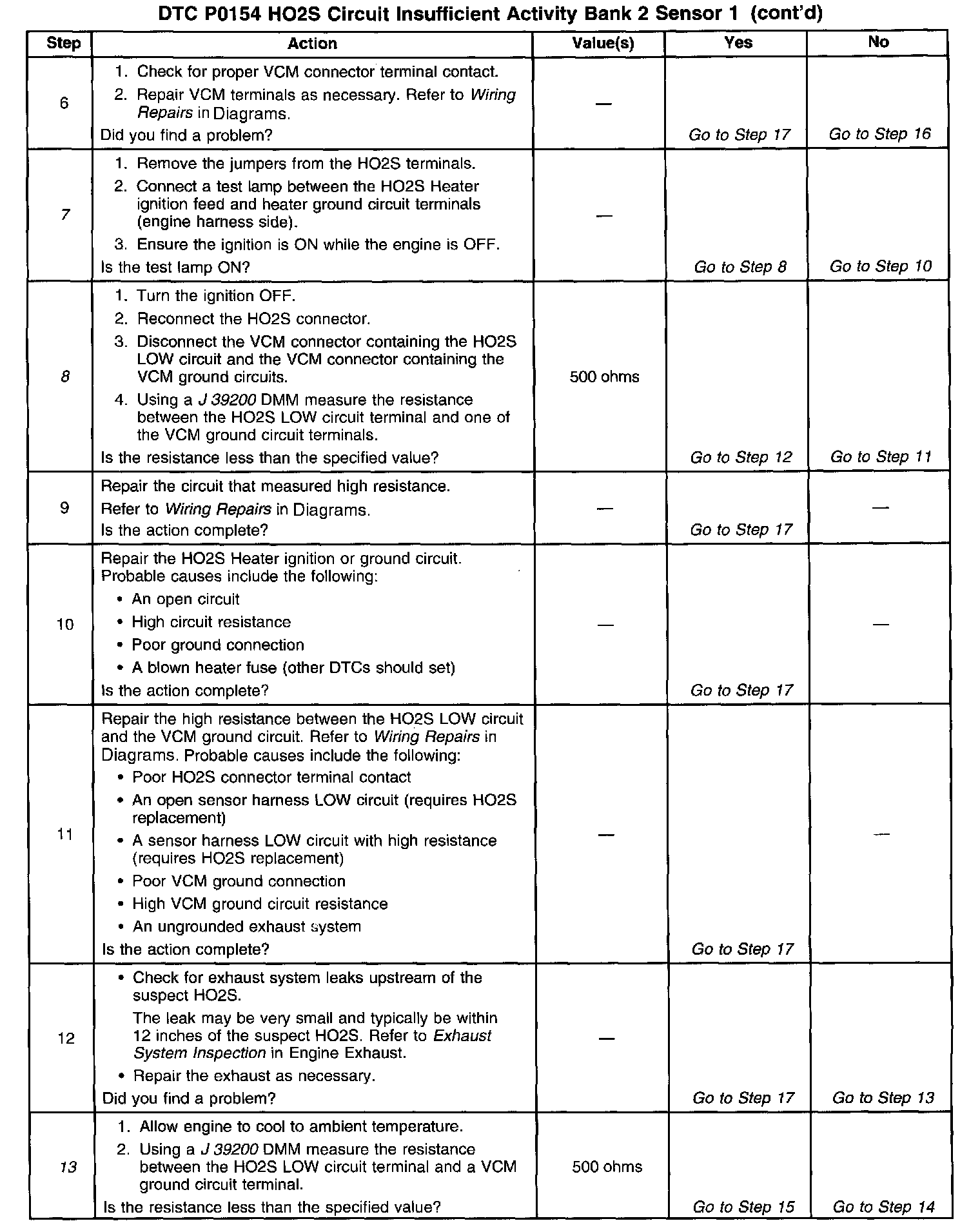

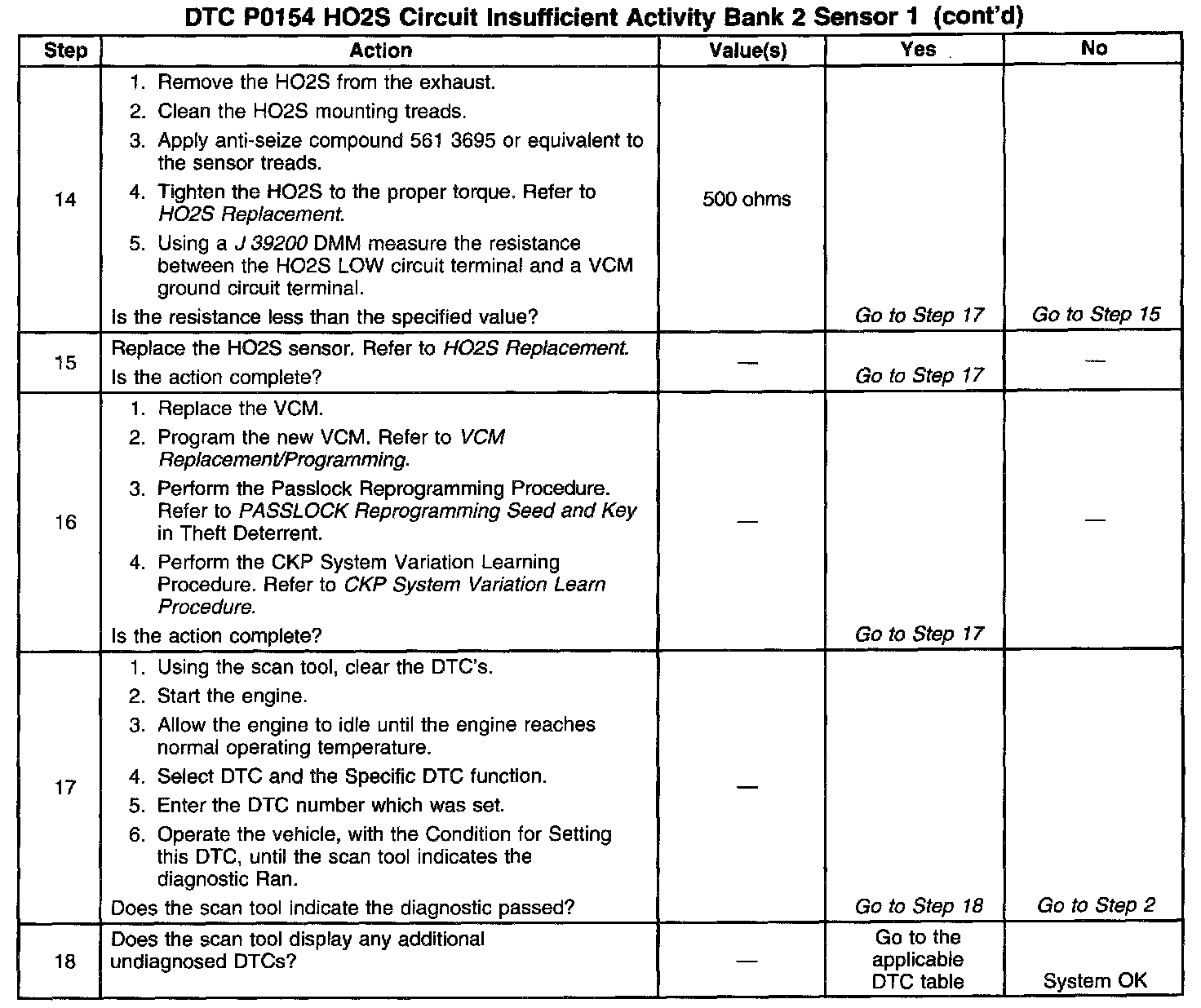

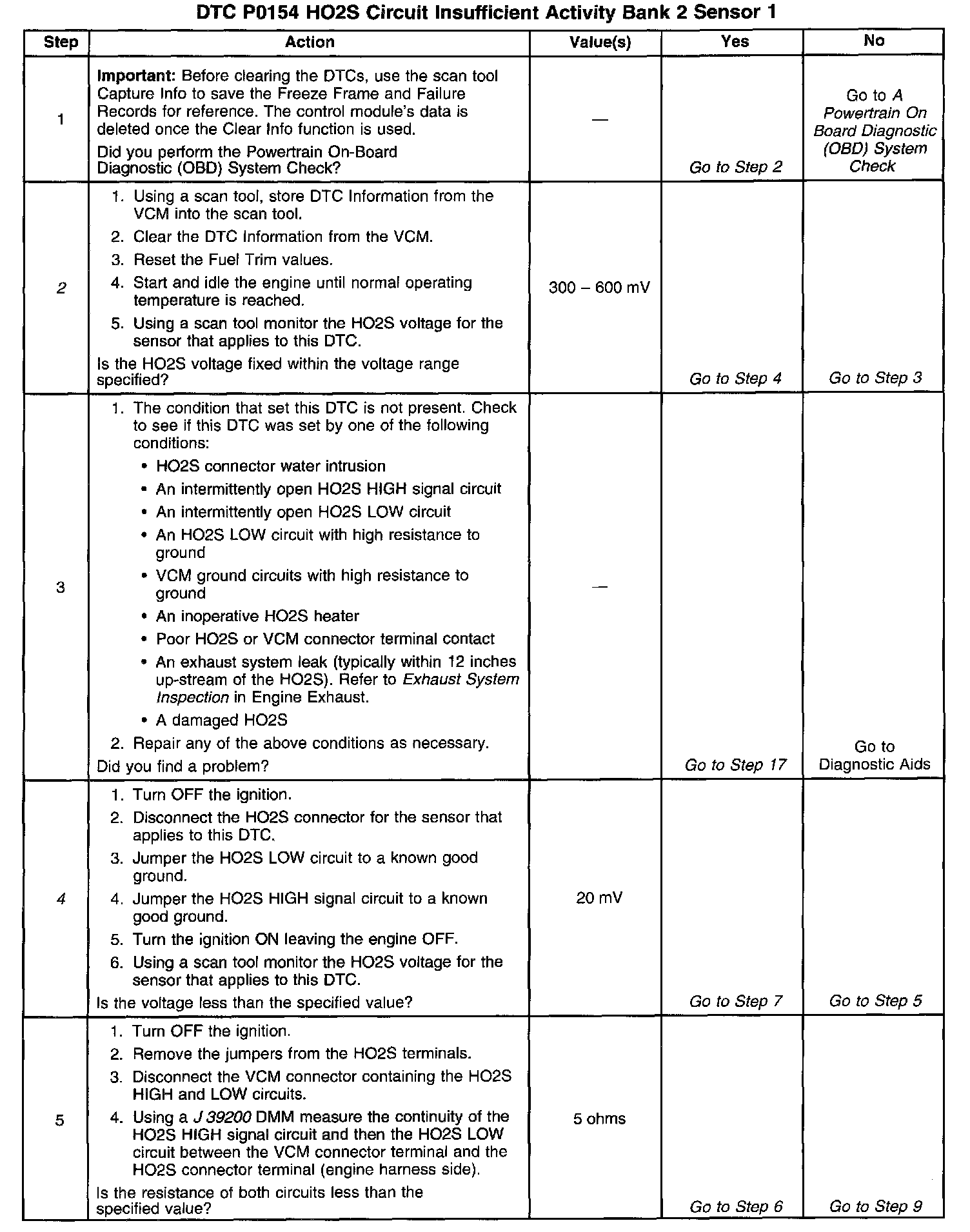

The numbers below refer to the step numbers on the diagnostic table.
2. This step checks for proper sensor activity. When in Closed Loop fuel control the HO2S voltage should rapidly swing above and below the bias voltage.
4. This step checks the VCM and the HIGH and LOW circuits between the VCM and the HO2S connector for proper operation.
7. This step checks for proper HO2S heater circuit operation up to the HO2S connector.
8. This step checks for proper circuit resistance between the HO2S LOW circuit and VCM ground.
13. This step checks for proper circuit resistance between the HO2S LOW circuit and VCM ground with a COLD sensor. A loose HO2S or poor thread to exhaust electrical contact will cause higher resistance when the HO2S is cold. Although 500 ohms is allowed, typical resistance should be less than 50 ohms.
