B1015

Circuit Description
When you first turn the ignition switch to the RUN position, the Inflatable Restraint Sensing and Diagnostic Module (SDM) perform tests to diagnose critical malfunctions within the SDM. The SDM then measures the following circuits in order to ensure that they are within their respective normal voltage ranges:
^ IGNITION 1
^ Deployment loop voltages

Then the SDM proceeds with the RESISTANCE MEASUREMENT test. During one portion of the RESISTANCE MEASUREMENT test, the SDM performs the following steps:
^ Grounds the PASSENGER SIDE LOW terminal 4 through an internal current sink
^ Connects the PASSENGER SIDE HIGH terminal 1 to an internal constant current source. This current produces proportional voltage drops in the deployment loop
^ Measures the voltage difference between PASSENGER SIDE HIGH and PASSENGER SIDE LOW
^ Calculates the resistance of the passenger deployment loop using the measured voltage

Conditions for Setting the DTC
^ The driver and passenger deployment loops are not open.
^ The driver and passenger deployment loops are not shorted to voltage.
^ The passenger deployment loop is not shorted to ground.
^ The passenger deployment loop resistance is more than 3.0 ohms. The passenger deployment loop consists of the following circuits:
- The Inflatable Restraint Instrument Panel (IP) module
- The harness wiring of circuit 1403
- The harness wiring of circuit 1404
- The connector terminal contact

The RESISTANCE MEASUREMENT test inspects for this malfunction. This test only occurs once each ignition cycle when IGNITION 1 is within the normal operating voltage range.

Action Taken When the DTC Sets
^ The SDM sets a diagnostic trouble code.
^ The, SDM turns ON the AIR BAG warning lamp.

Conditions for Clearing the DTC
^ Current DTC
The resistance of the passenger deployment loop is less than 3.0 ohms and the ignition switch is cycled.
^ History DTC
- You issue a scan tool CLEAR CODES command.
- After 250 malfunction free ignition cycles have occurred.

When you issue a scan tool CLEAR CODES command and the malfunction is still present, the DTC will not reappear until the next ignition cycle.

Diagnostic Aids
A poor connection may cause an intermittent condition. Inspect the following for a poor connection:
^ The Inflatable Restraint IP module harness connector terminals A and B.
^ The SDM terminals 4 and 1.
^ The wire to terminal connections in circuit 1403.
^ The wire to terminal connections in circuit 1404.

The diagnostic table directs the technician to note the entry value of PASSENGER RESISTANCE. Comparing the value of PASSENGER RESISTANCE over multiple ignition cycles may be helpful in determining if an intermittent condition exists.
When measurements are requested in this table, use the J 39200 DMM with the correct terminal adapter from the J 35616-A Connector Test Adapter Kit. When an inspection for proper connection is requested, refer to Testing for Electrical Intermittents. When a wire, connector or terminal repair is requested, use the J 38125-B Terminal Repair Kit and refer to Wiring Repairs.

Test Description

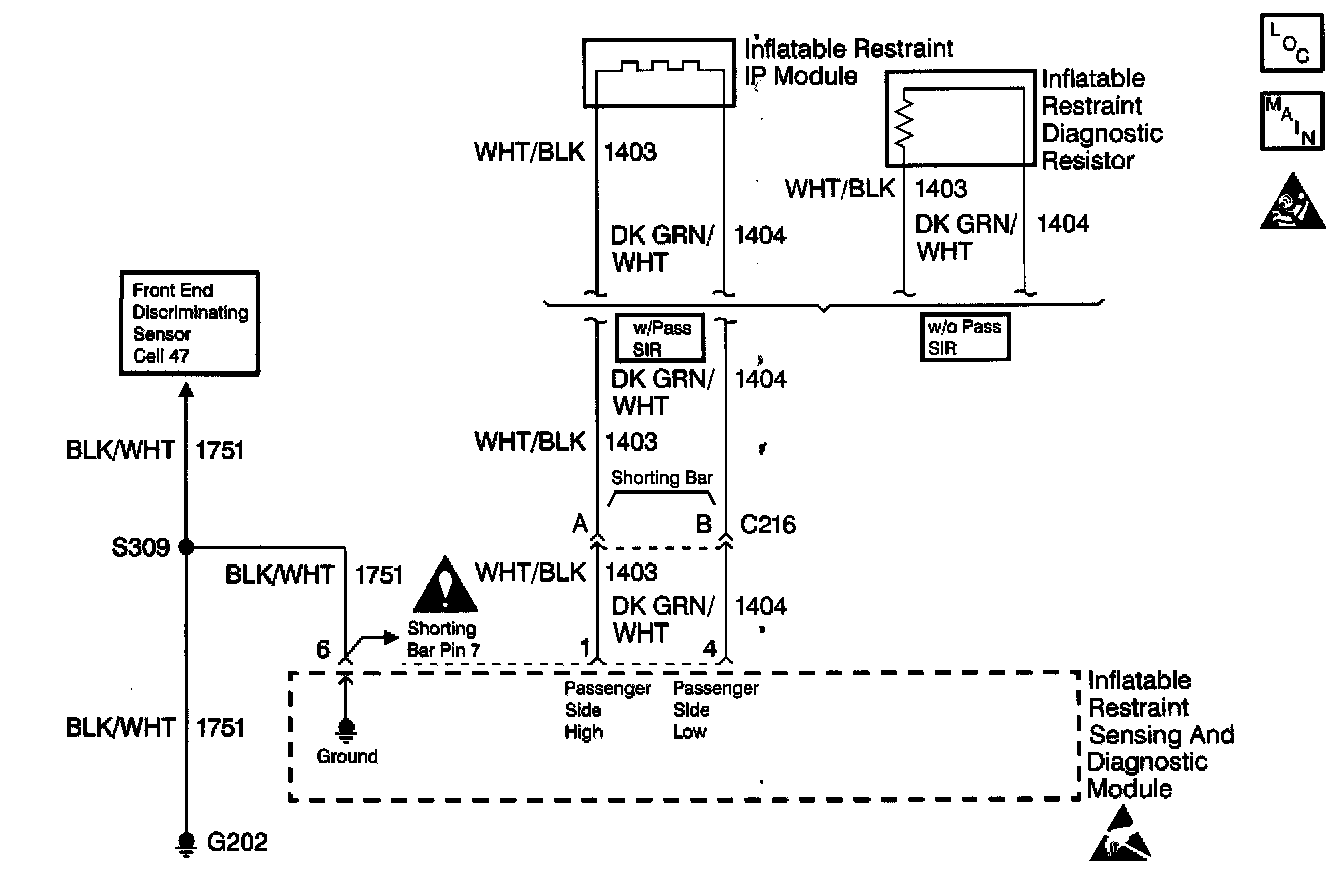

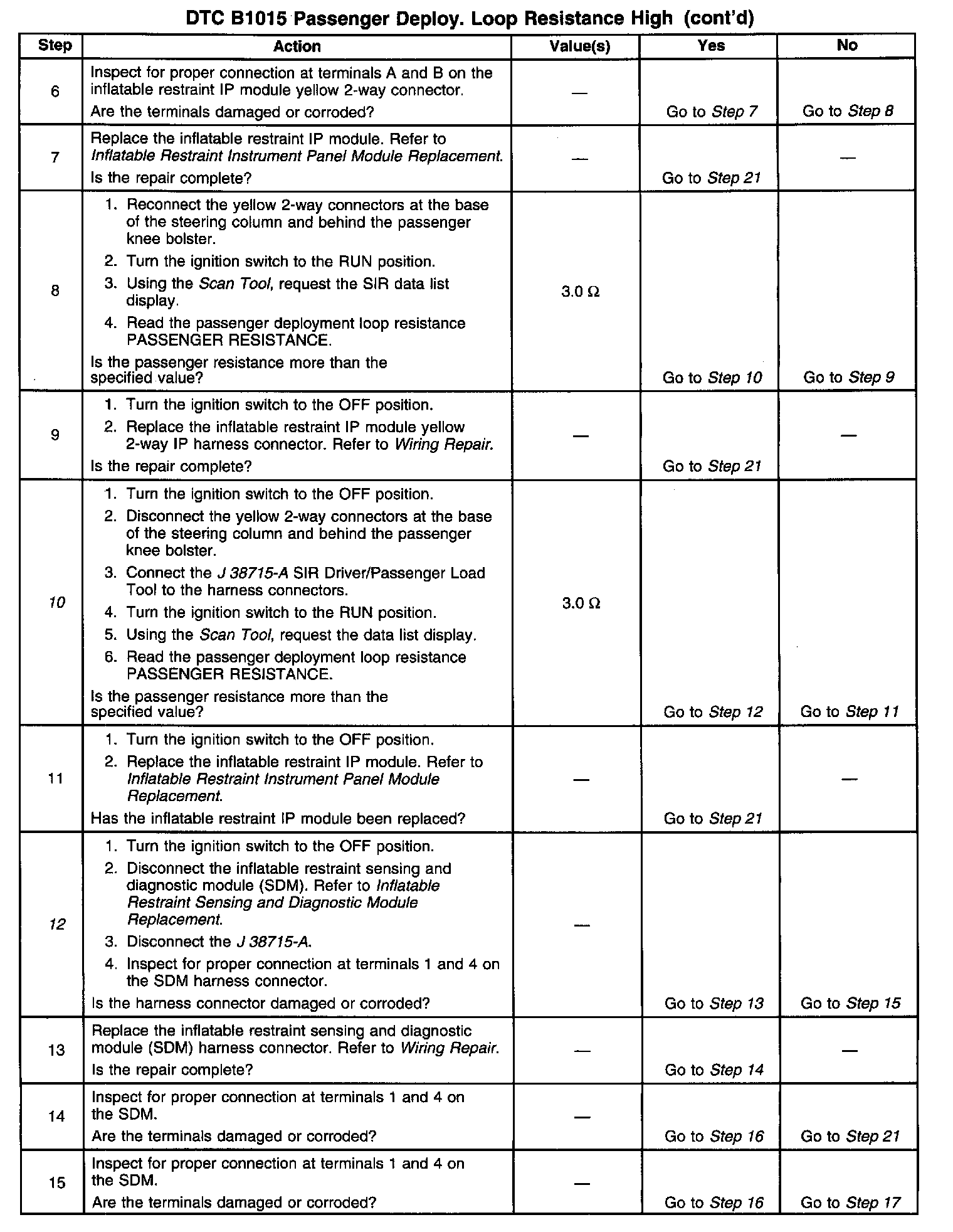

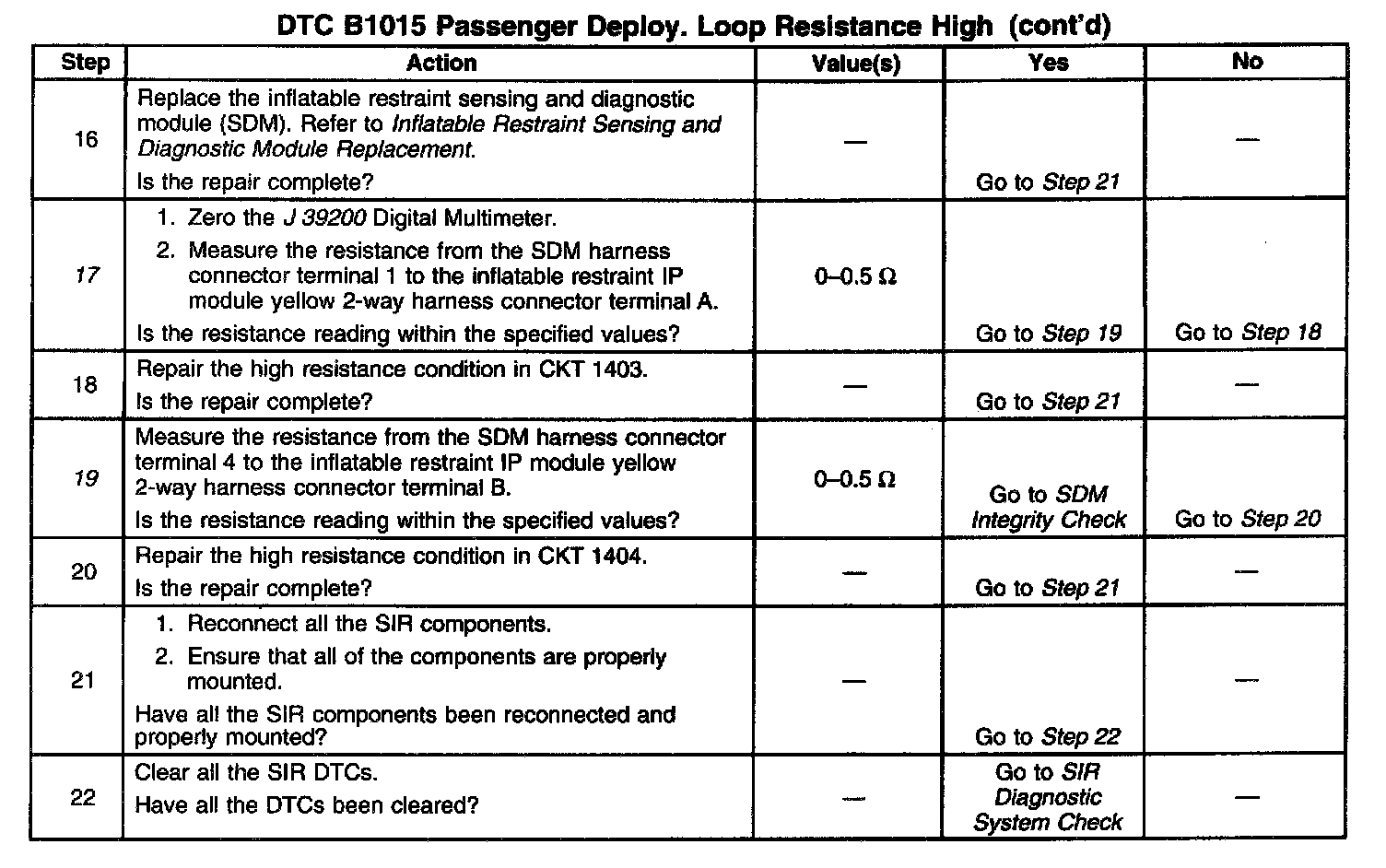

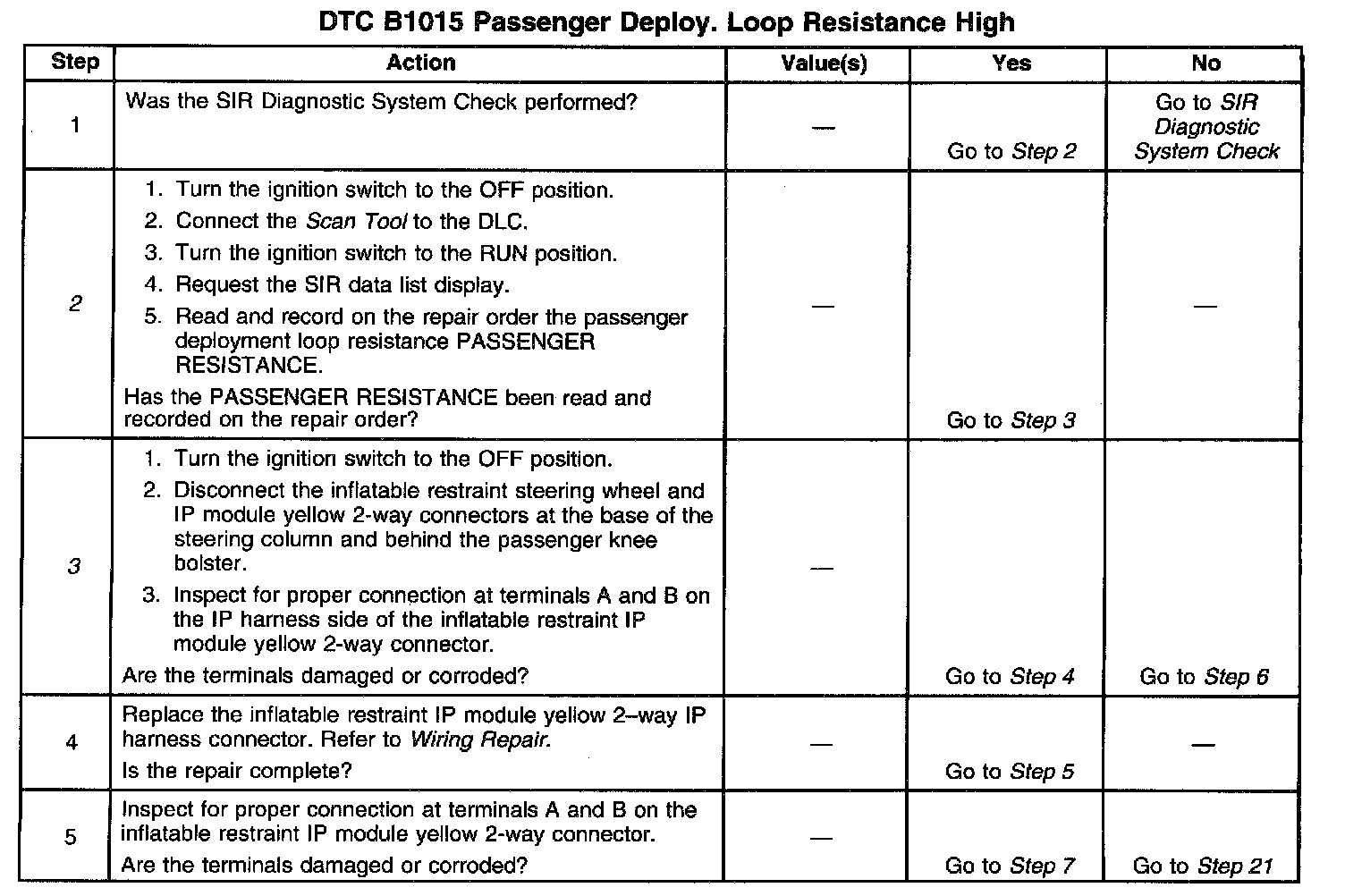

The numbers below refer to the step numbers on the diagnostic table:
2. This test determines the deployment loop resistance measured by the Inflatable Restraint Sensing and Diagnostic Module (SDM).
3. This test inspects for proper contact or corrosion of the yellow 2-way connector.
10. This test isolates the malfunction to one side of the Inflatable Restraint IP module yellow 2-way connector.
12. This test inspects for proper contact or corrosion of the SDM connector.
17. This test determines whether the malfunction is in circuit 1403.
19. This test determines whether the malfunction is in circuit 1404.
