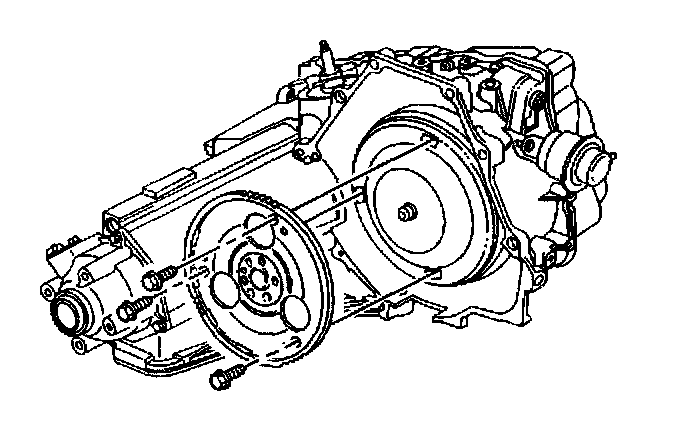

Flywheel Torque Specifications






Engine Flywheel To Torque
Converter Bolt(s) 63 Nm (47 lb ft)
Engine Flywheel Bolt 71 Nm (52 lb ft)
