Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

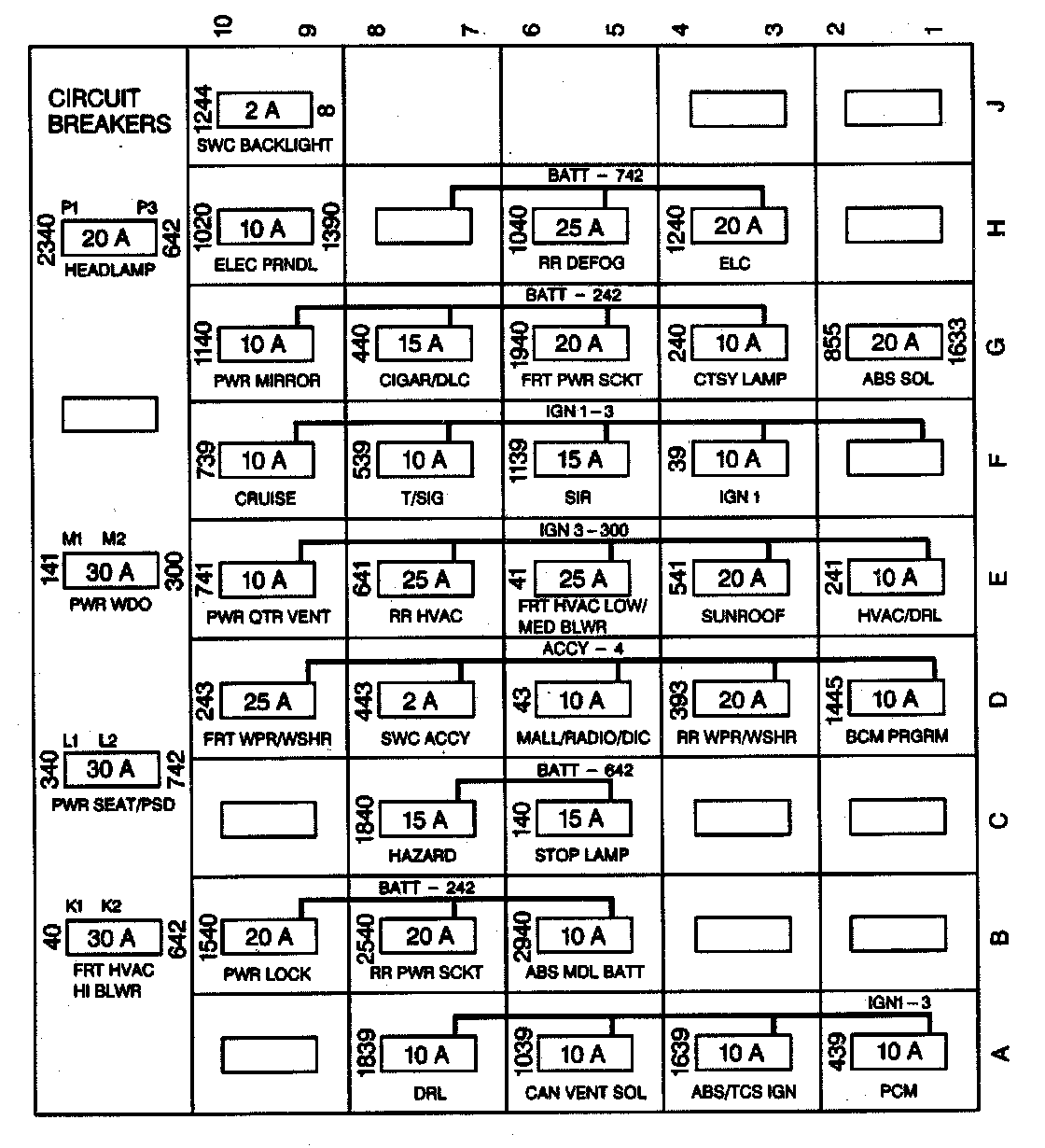

I/P Fuse Block
I/P Fuse Block

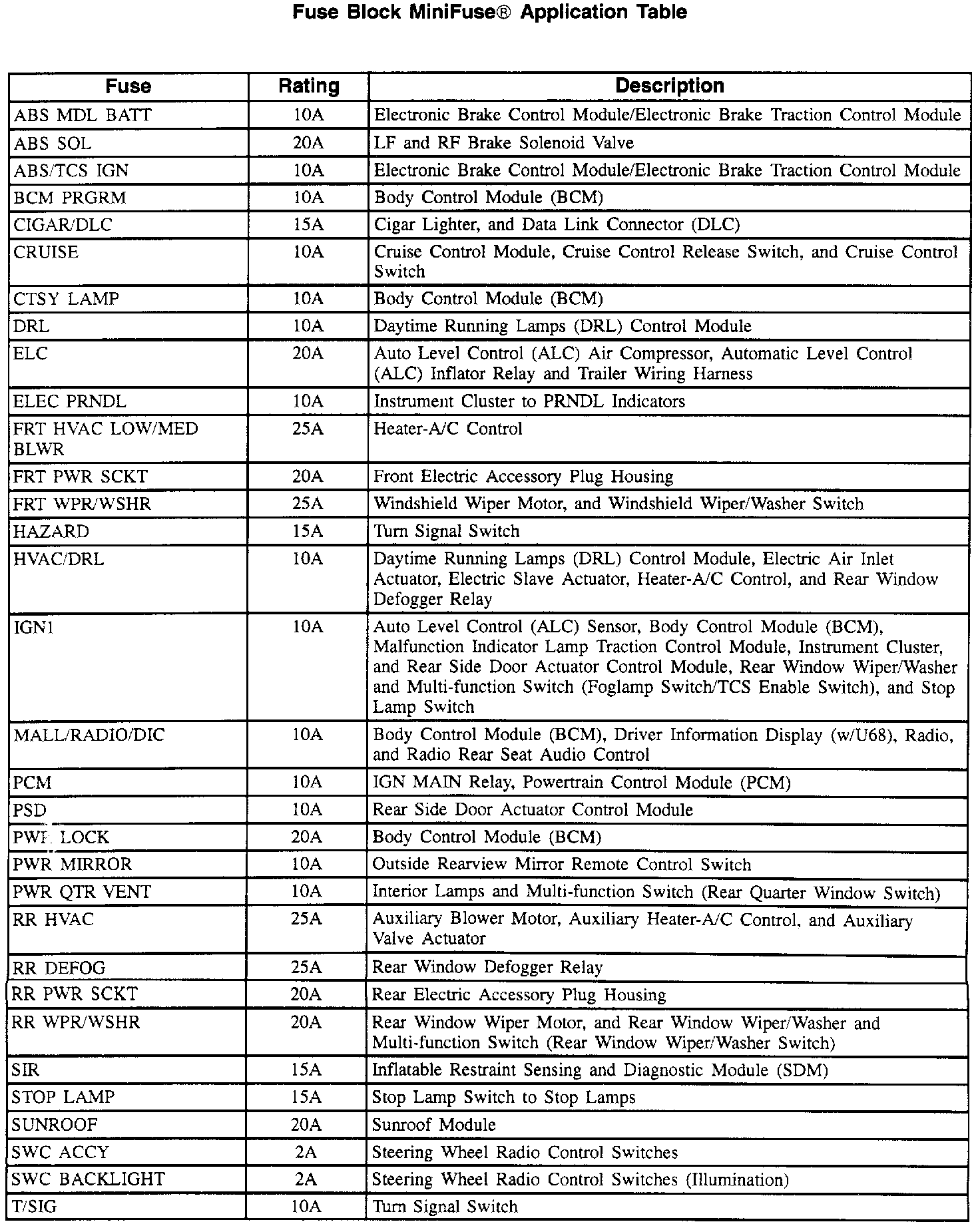

Fuse Block Application Table (Part 1 Of 2):

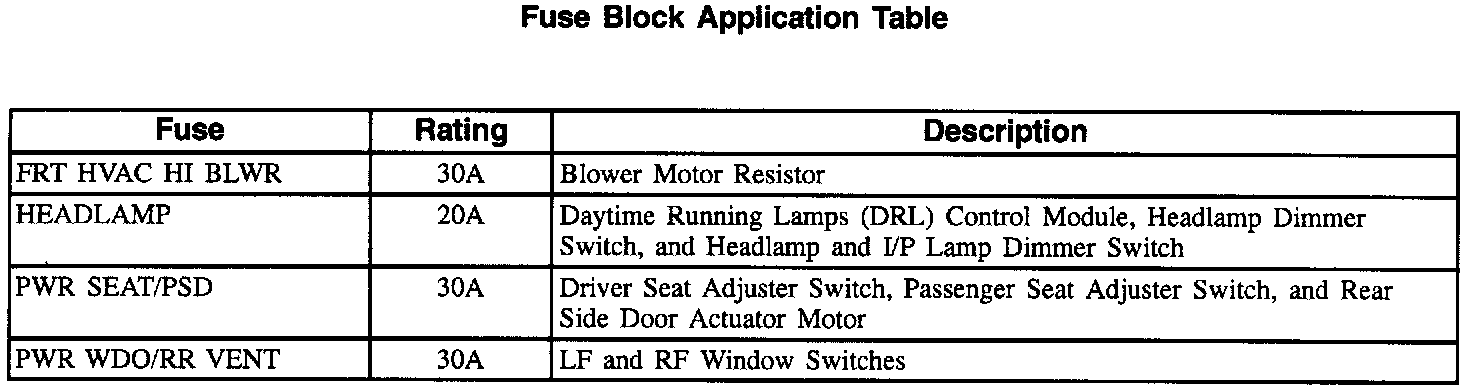

Fuse Block Application Table (Part 2 Of 2):
