Map Light
Map Light

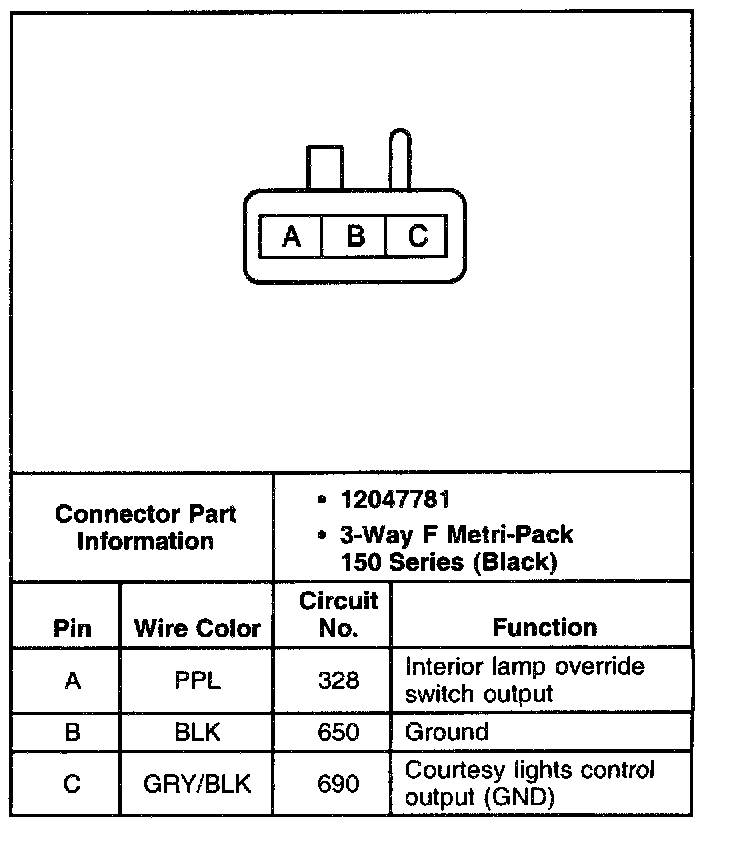

Windshield Header Courtesy/Reading Lamps:
Right Rear Roof Rail Reading Lamp:
Right Roof Rail Reading Lamp:
Left Roof Rail Reading Lamp:
