Compressor/Pump, Suspension Control
Compressor/Pump, Suspension Control

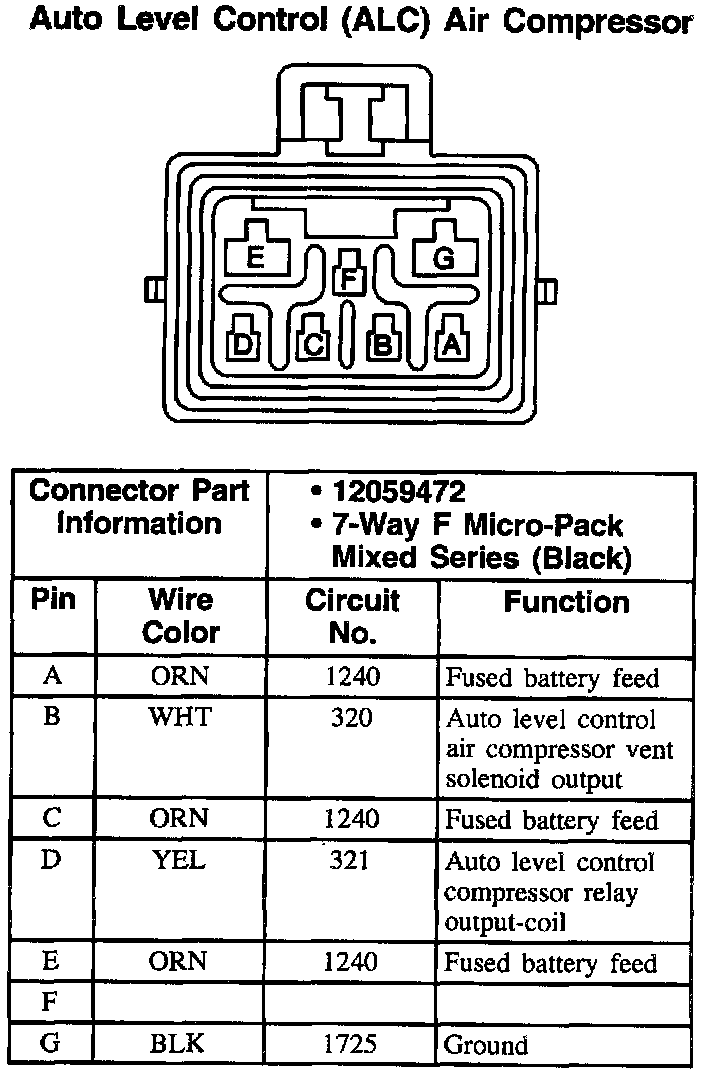

Auto Level Control (ALC) Air Compressor:
