Relay Center

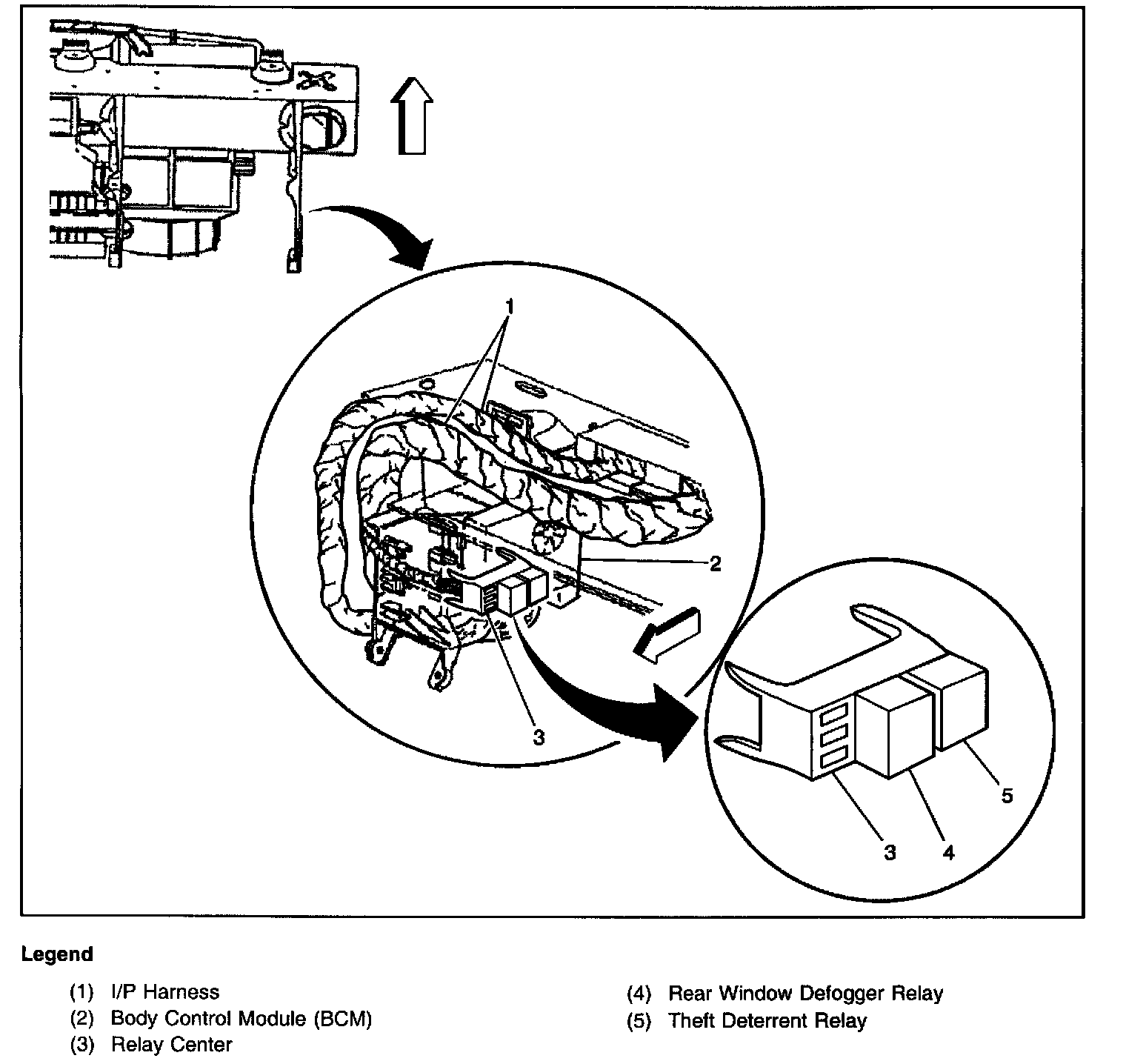

RH Side IP:
Right side of IP, mounted to the bracket along with the BCM, near the rear top right side of the IP compartment
