Chevy Truck
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Auto Level Control (ALC) Air Compressor

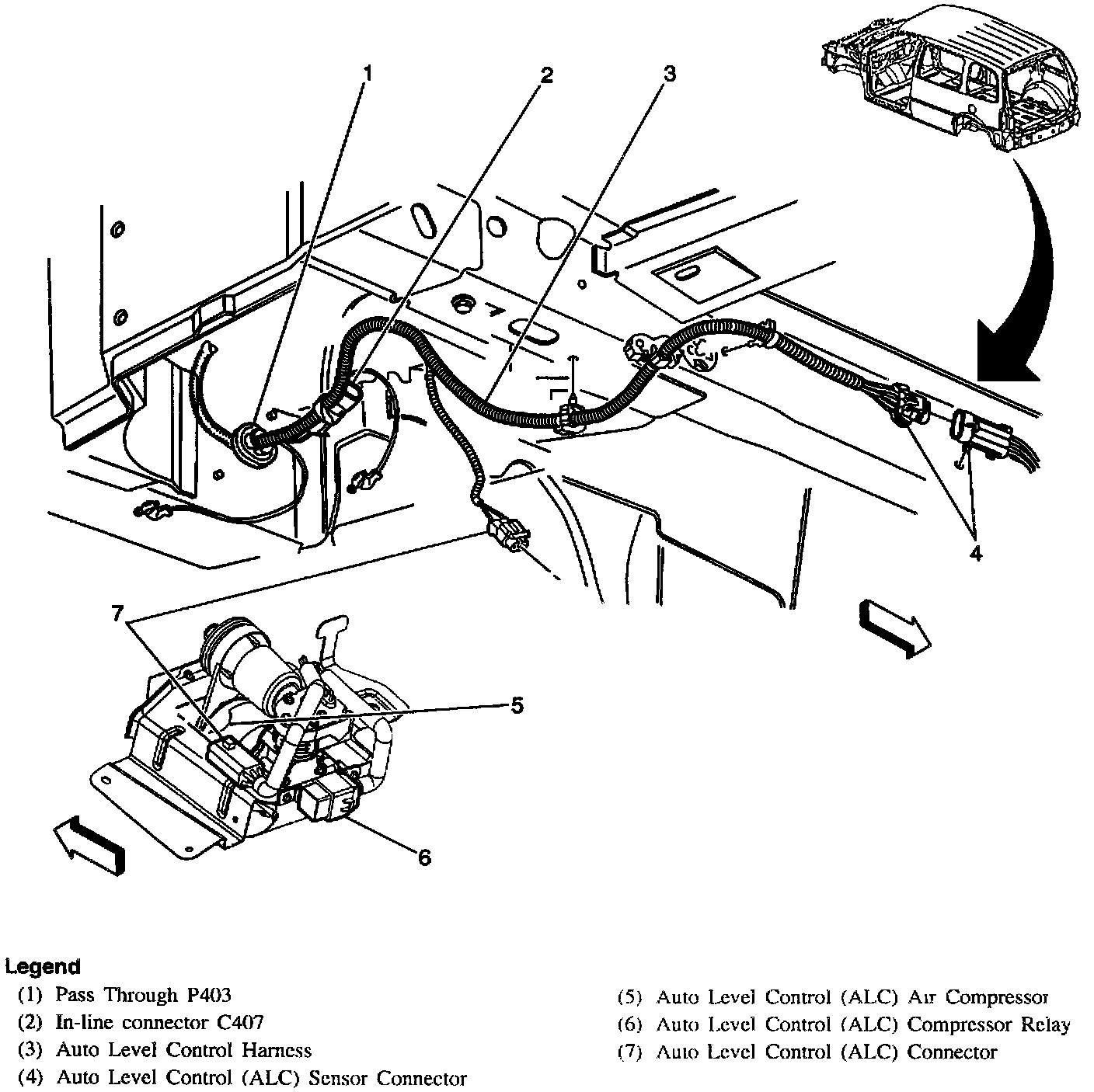

Auto Level Control (ALC) Air Compressor
Below Vehicle, Rear Of LR Wheelhouse:
