Component Locations

3-Speed Automatic Transmission:

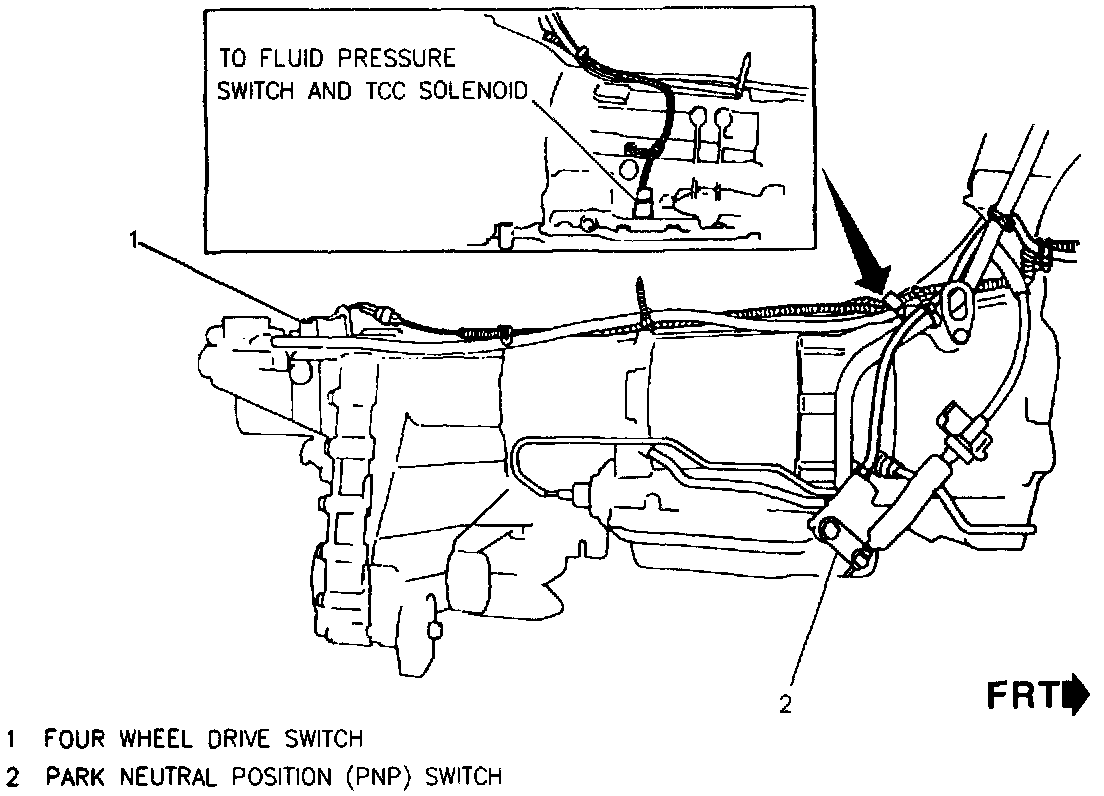

RH side of the transmission (3-Speed Automatic Transmission)
