Home >> Chevy Truck >> 1998 >> Tracker 2WD L4-1.6L VIN 6 >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations >> Window/Door Lock Switch Connector, LH Front

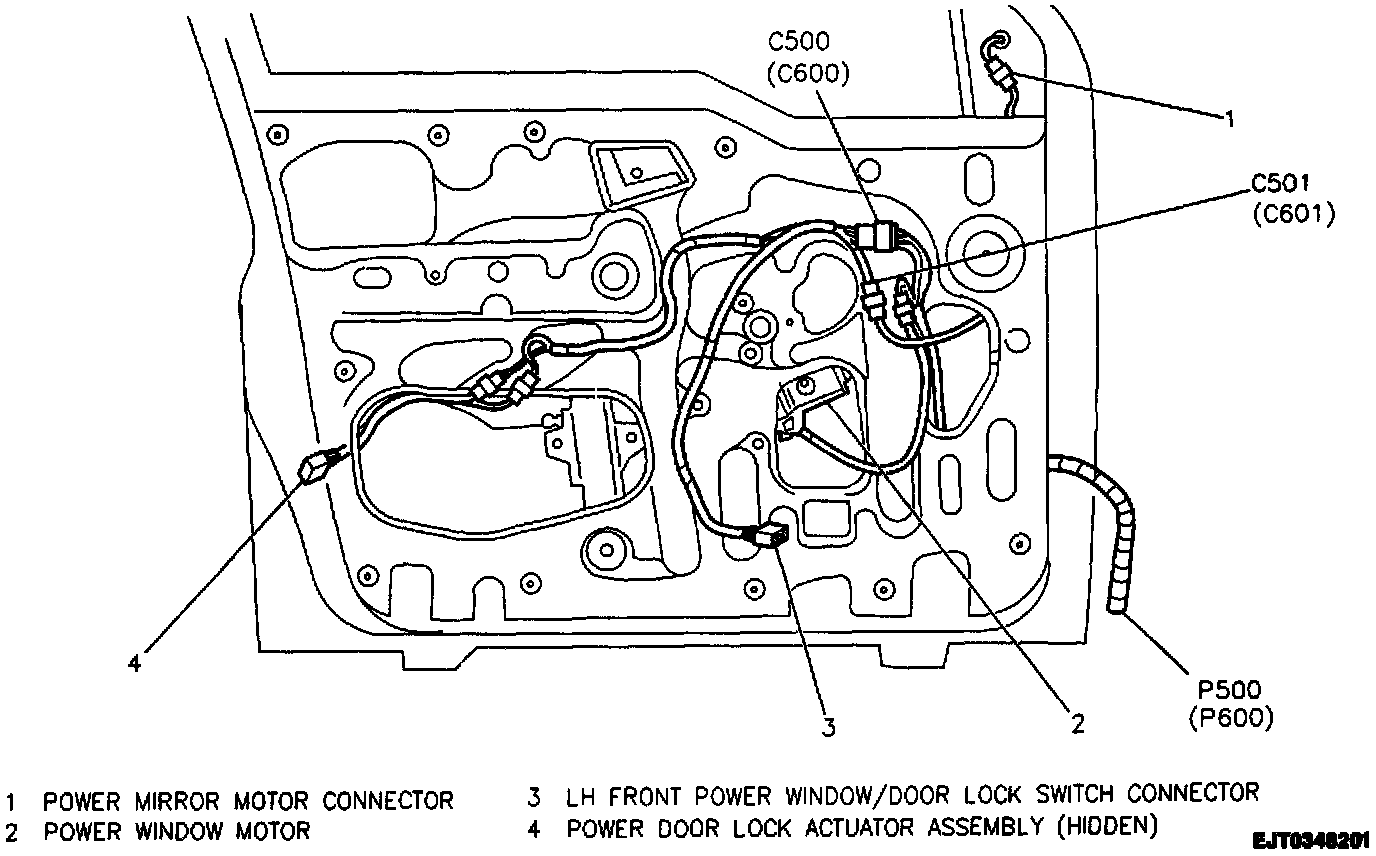

Window/Door Lock Switch Connector, LH Front

LH Front Door (4-Door With Power Opt.) (RH Similar):
