Fuse Block 1
Fuse Block 1

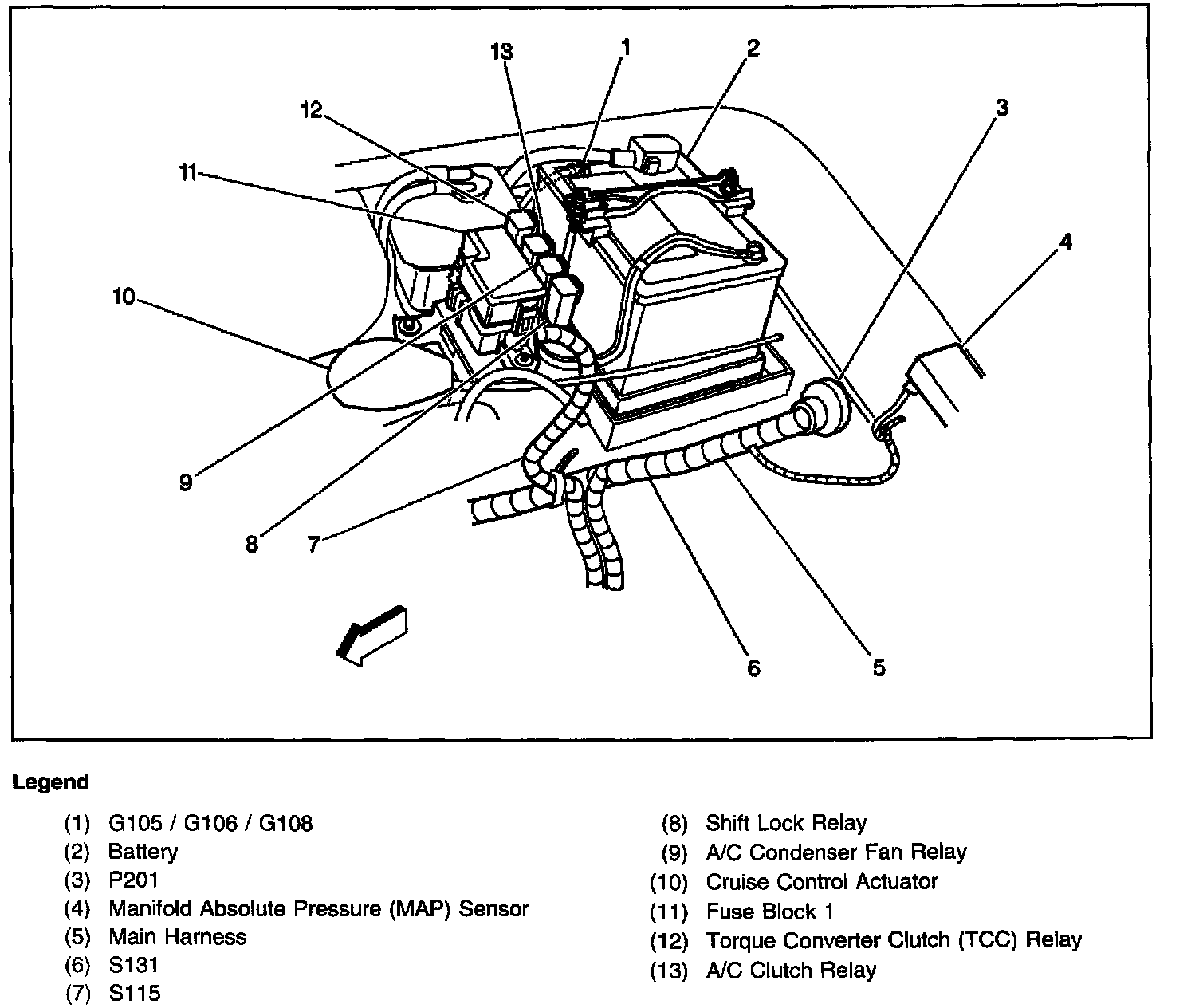

Right Front Engine Compartment:

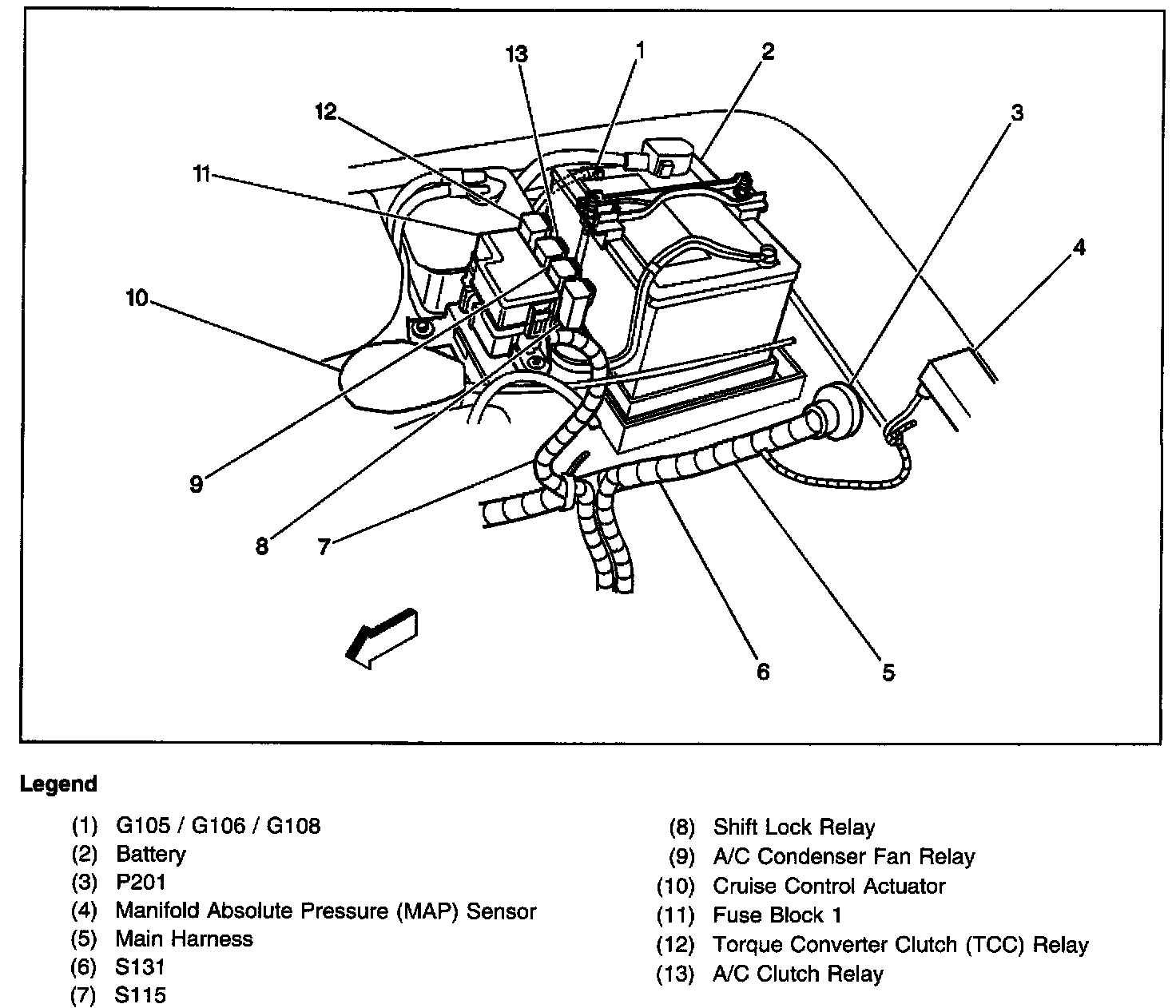

Right Rear Engine Compartment:

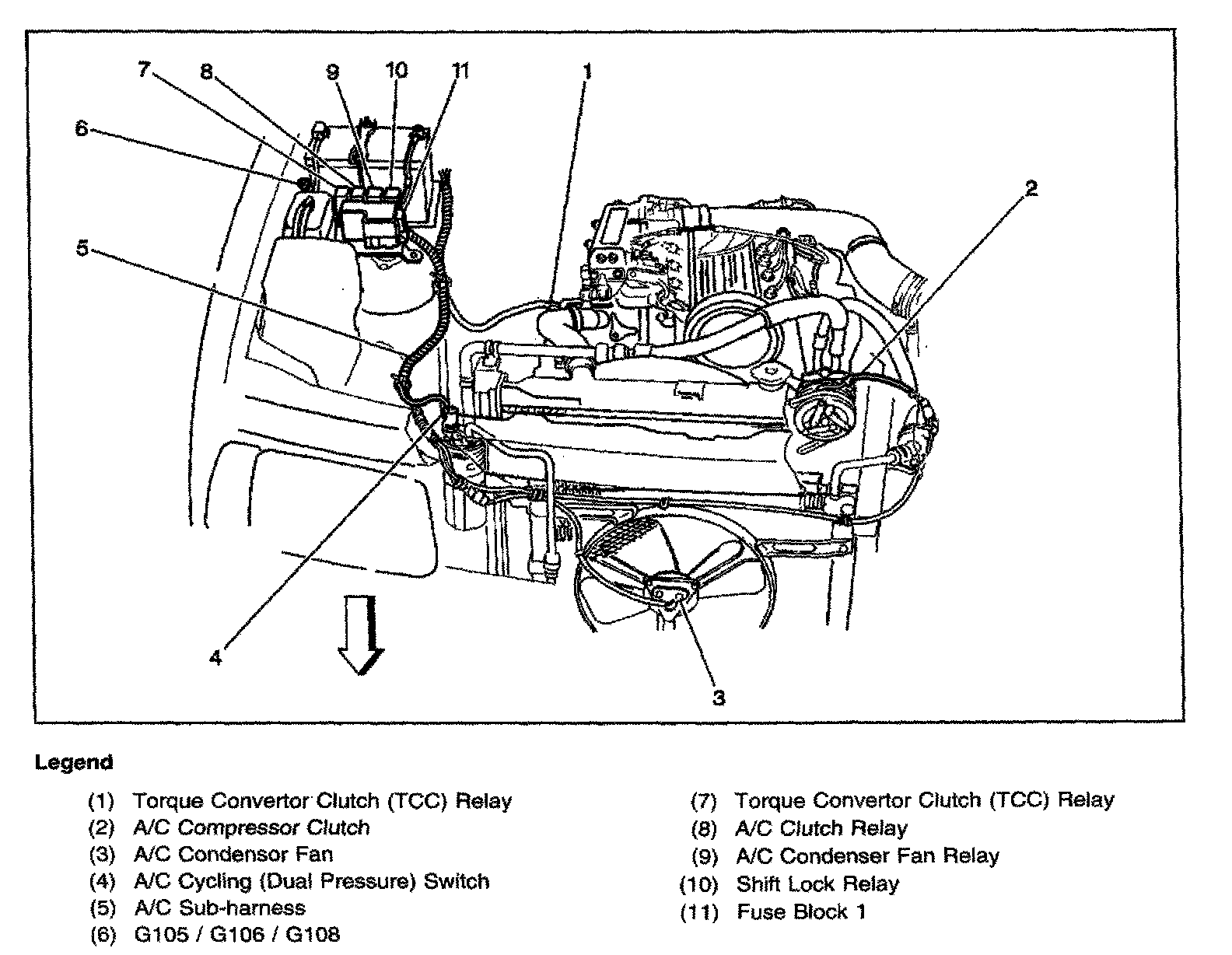

RH Engine Compartment:

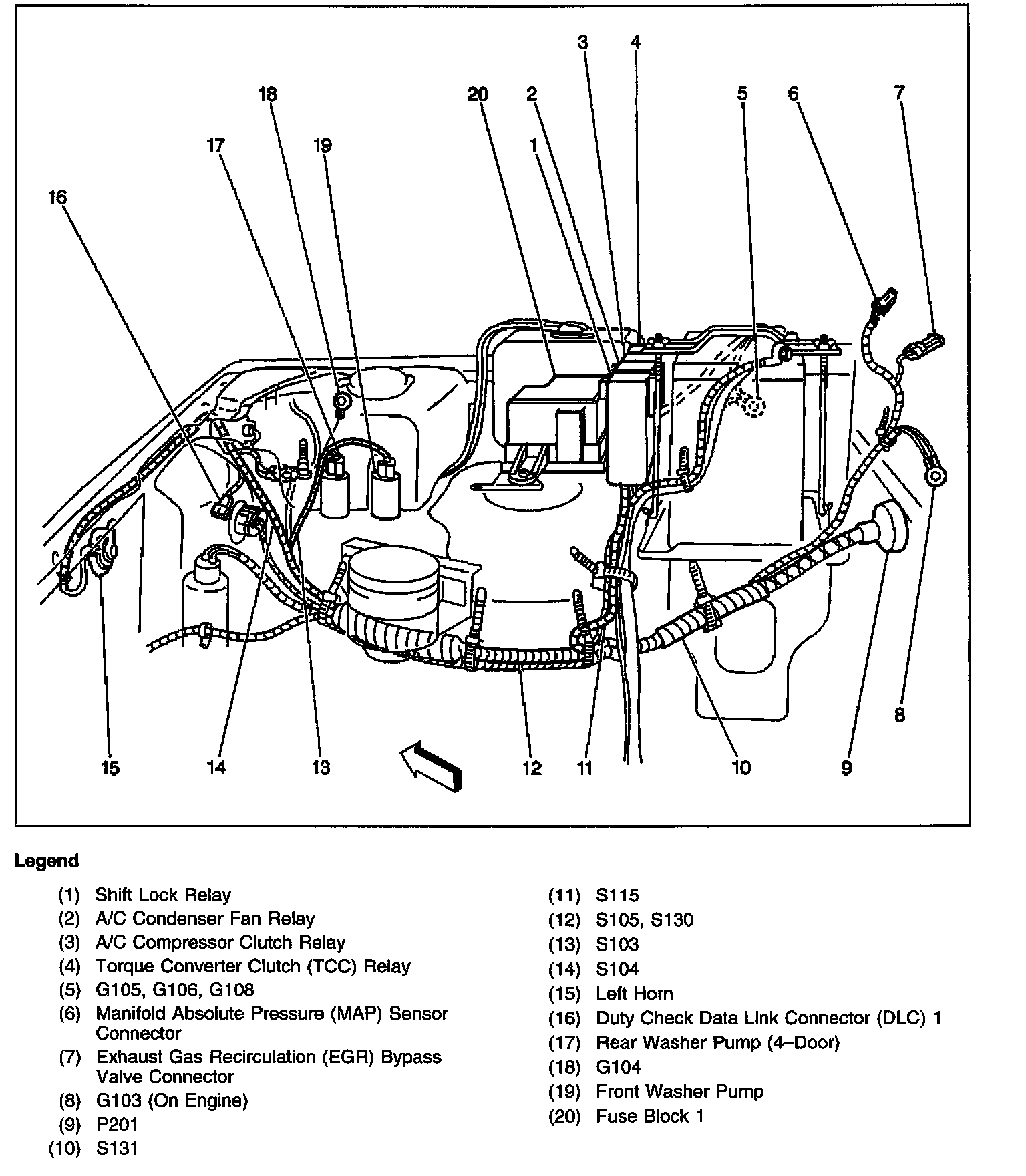

Right Rear Engine Compartment:
RH engine compartment in front of the battery
