Home >> Chevy Truck >> 1998 >> Express 1/2 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Data Sensors >> Misc. Sensors

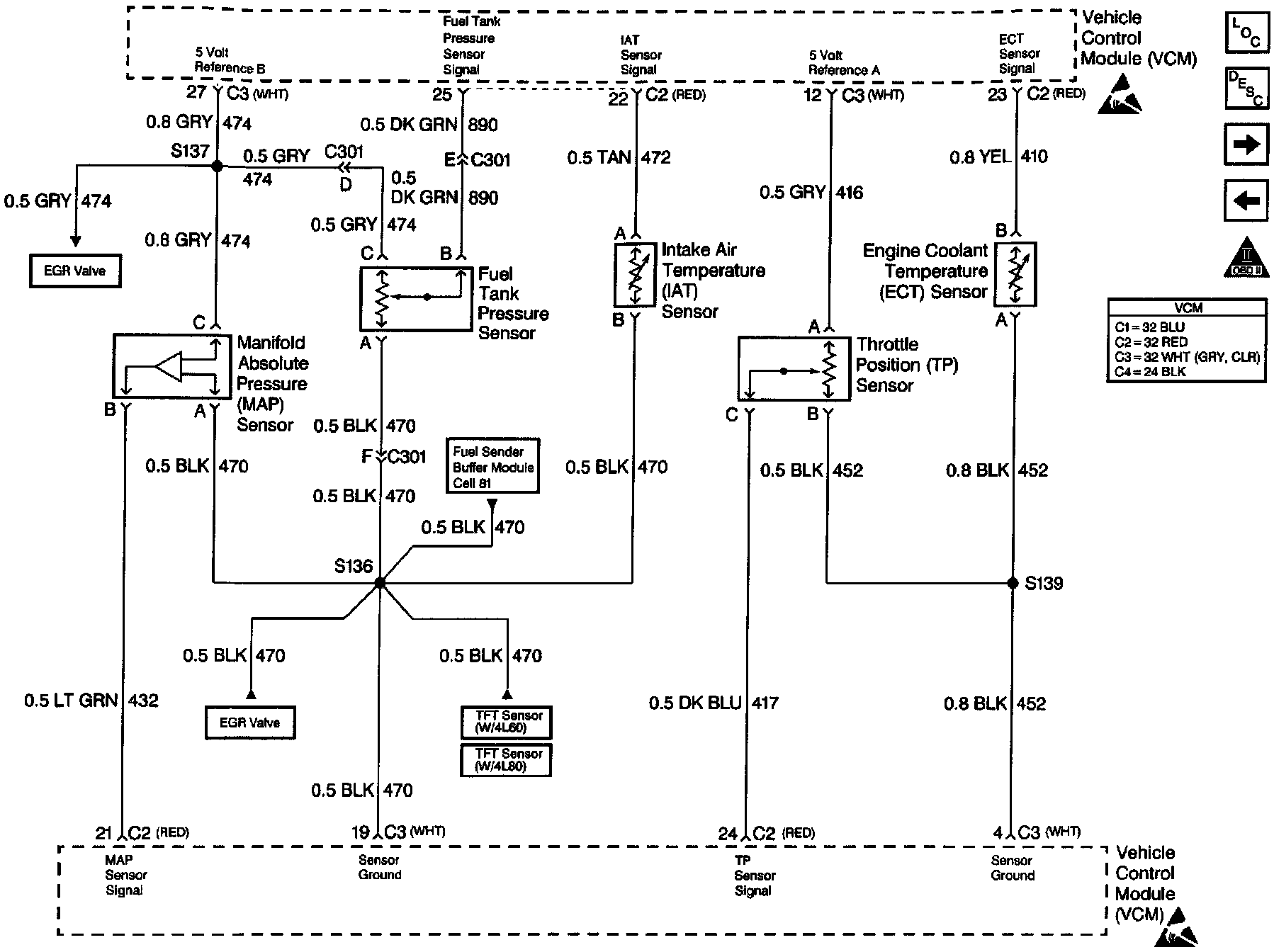

Misc. Sensors

Electrical:
