Home >> Chevy Truck >> 1998 >> Express 1/2 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Vehicle Control Module (VCM) >> C2 Red-32 Pin

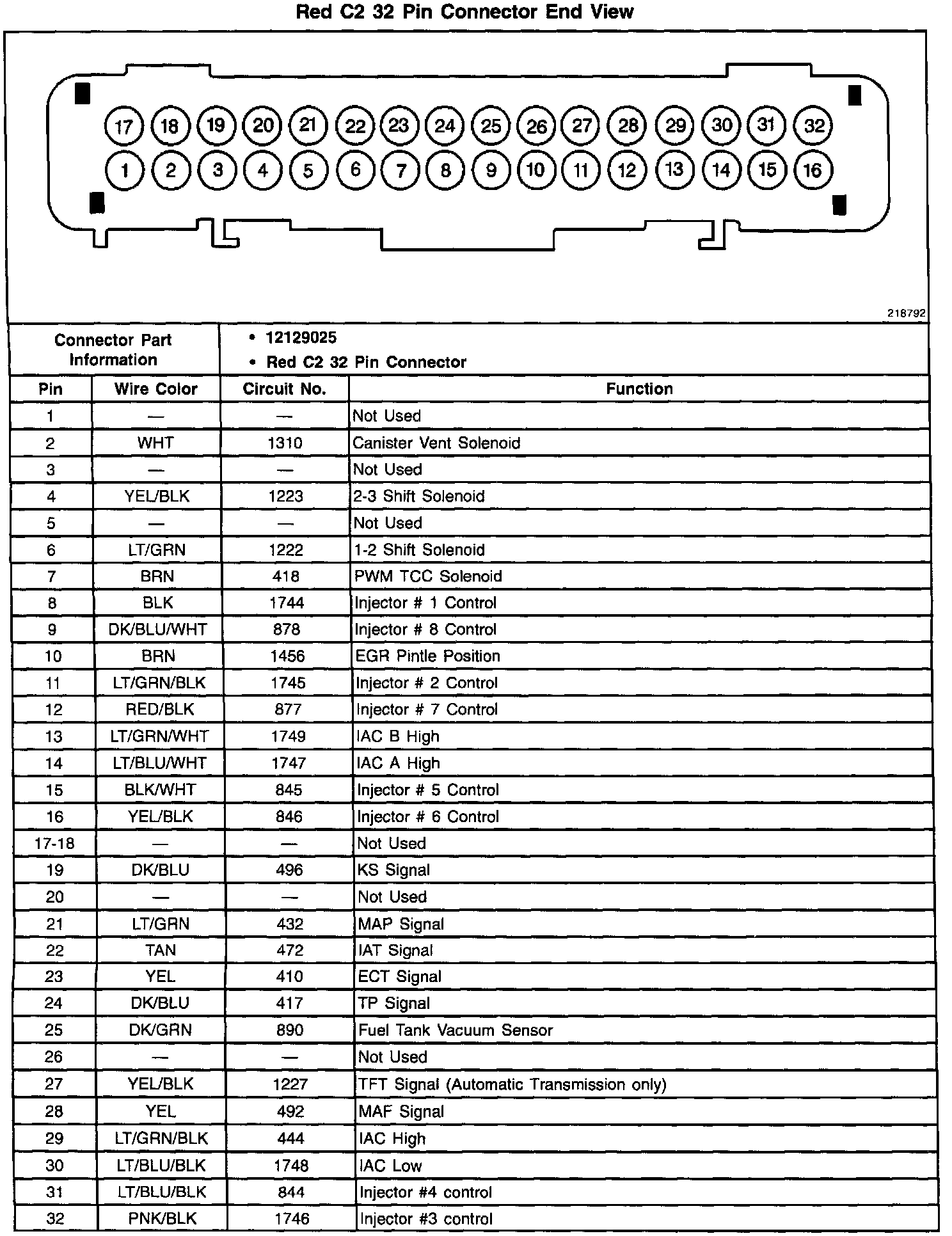

C2 Red-32 Pin

Diagram Chart:
