TFP Valve Position Switch Resistance Check

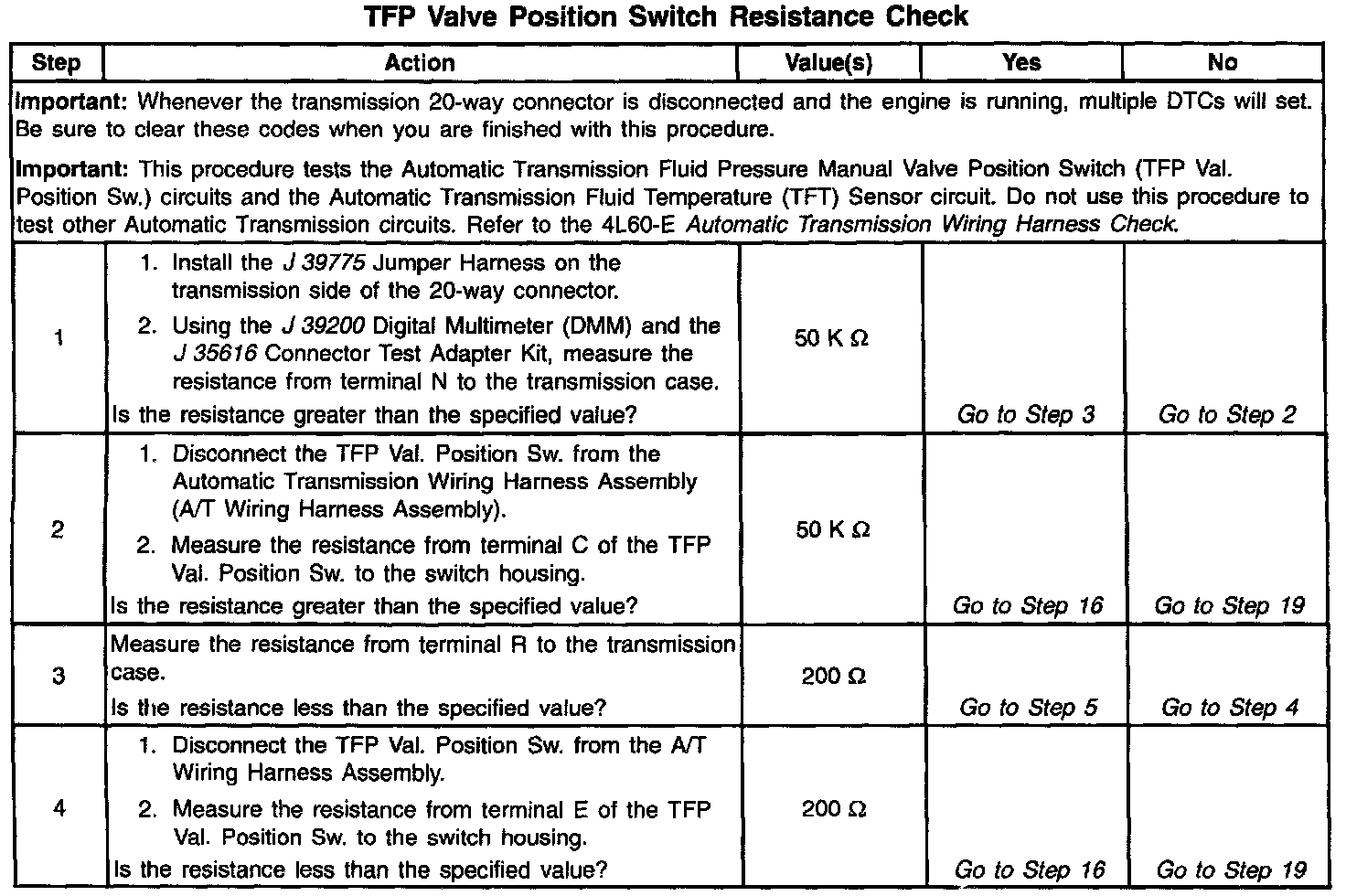

Part 1 Of 3:

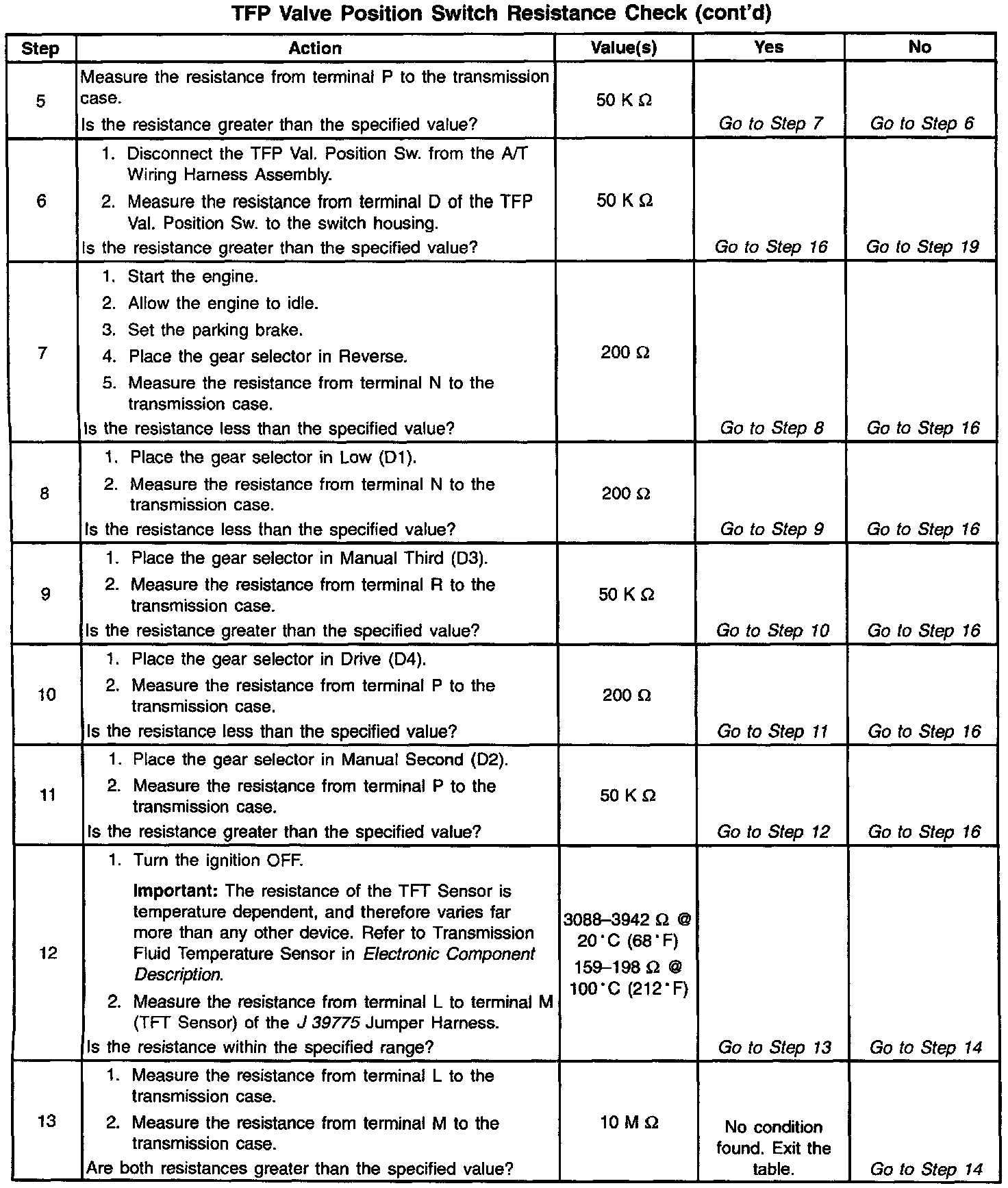

Part 2 Of 3:

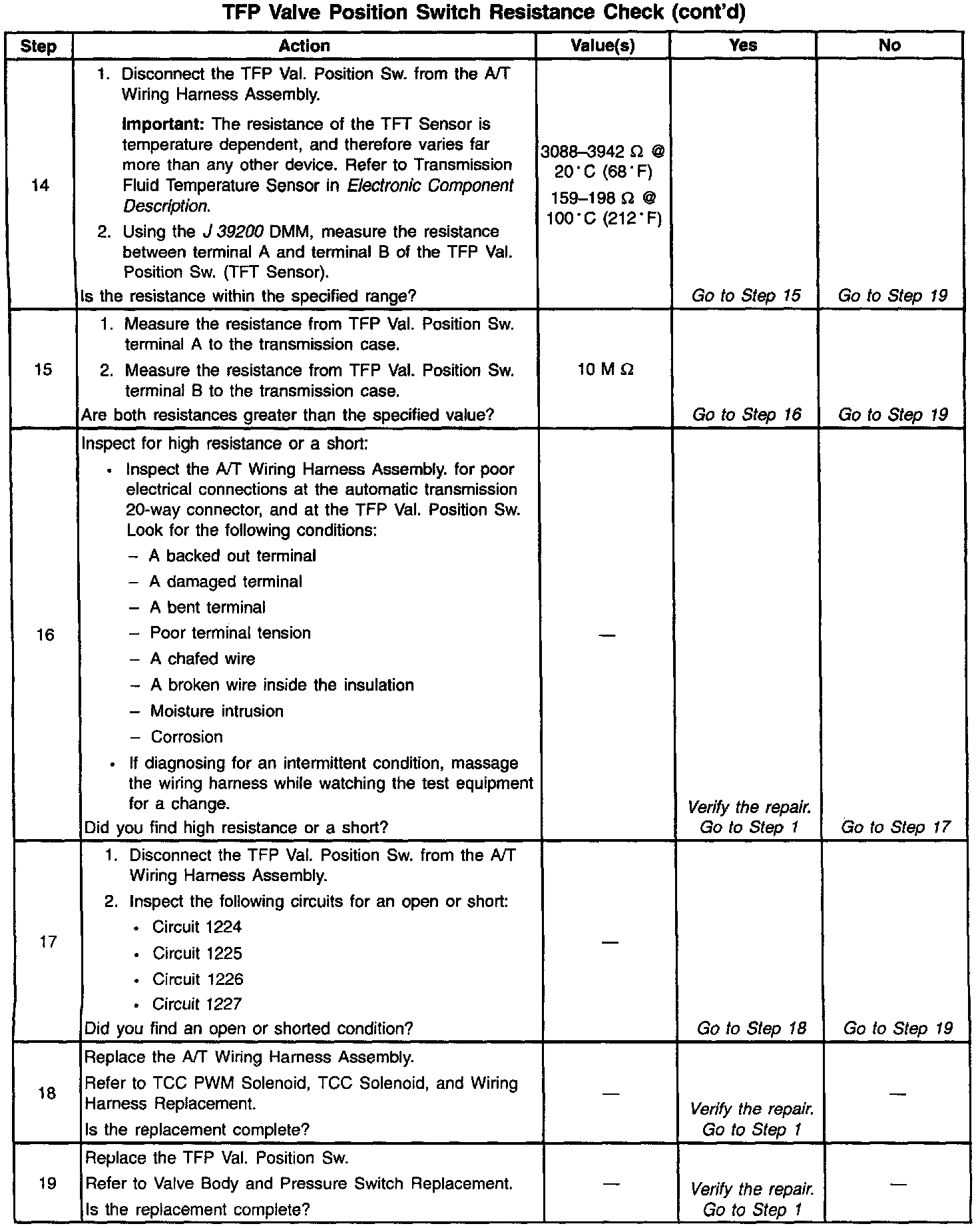

Part 3 Of 3:



Diagnostic Chart:



Diagnostic Chart:



Diagnostic Chart:
