Chevy Truck
>>
1998
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - HVAC
>>
Blower Motor Relay
>>
Diagrams
>>

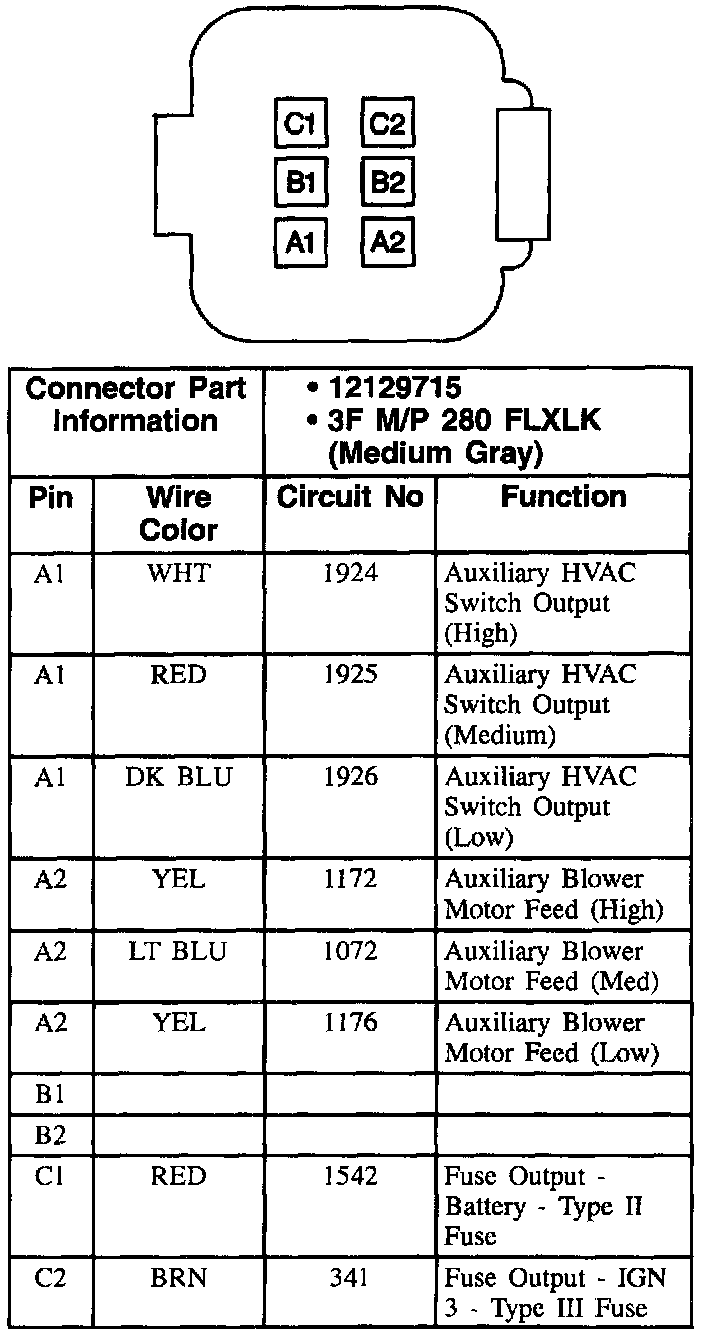

Auxiliary Blower Motor Relay, Low/Med/High Connectors
Auxiliary Blower Motor Relay, Low/Med/High Connectors
Auxiliary Blower Motor Relay, Low/Medium/High Connectors:
