Overdrive Carrier Assemble

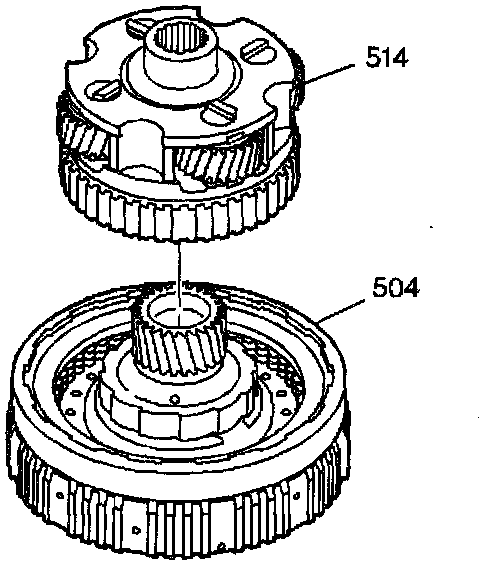

1. Assemble the overdrive carrier assembly (514) and the overrun clutch housing (504).
2. Rotate the overdrive carrier assembly while lining up the overdrive clutches.

IMPORTANT: Do not damage the turbine shaft oil seals.

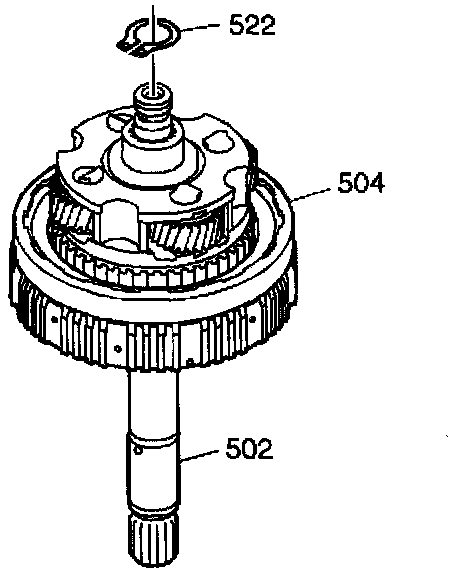

3. Install the turbine shaft (502) through the overrun clutch housing (504).
4. Install the turbine shaft retainer ring (522).
