G200

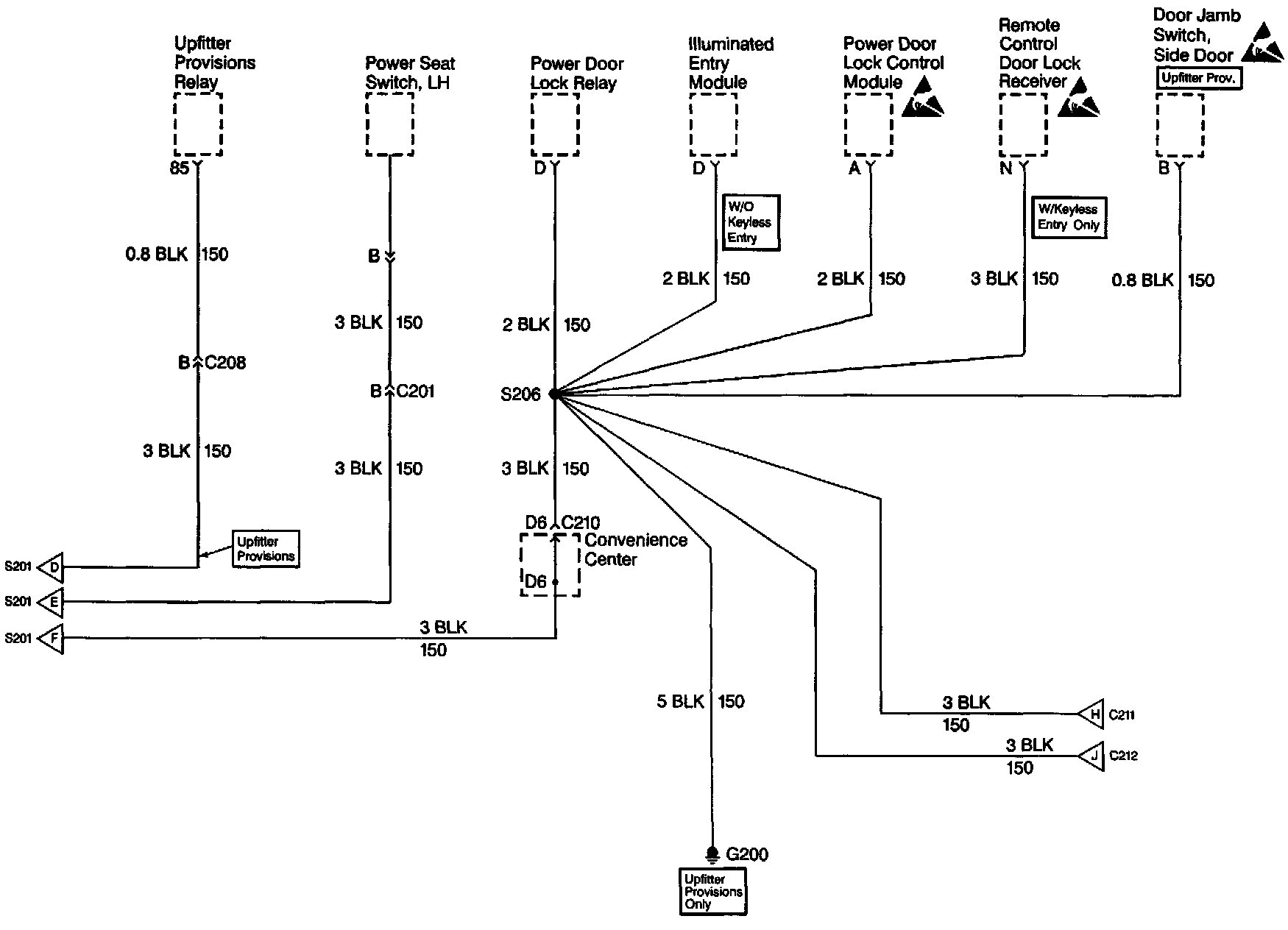

Ground Distribution (Part 3 Of 7):

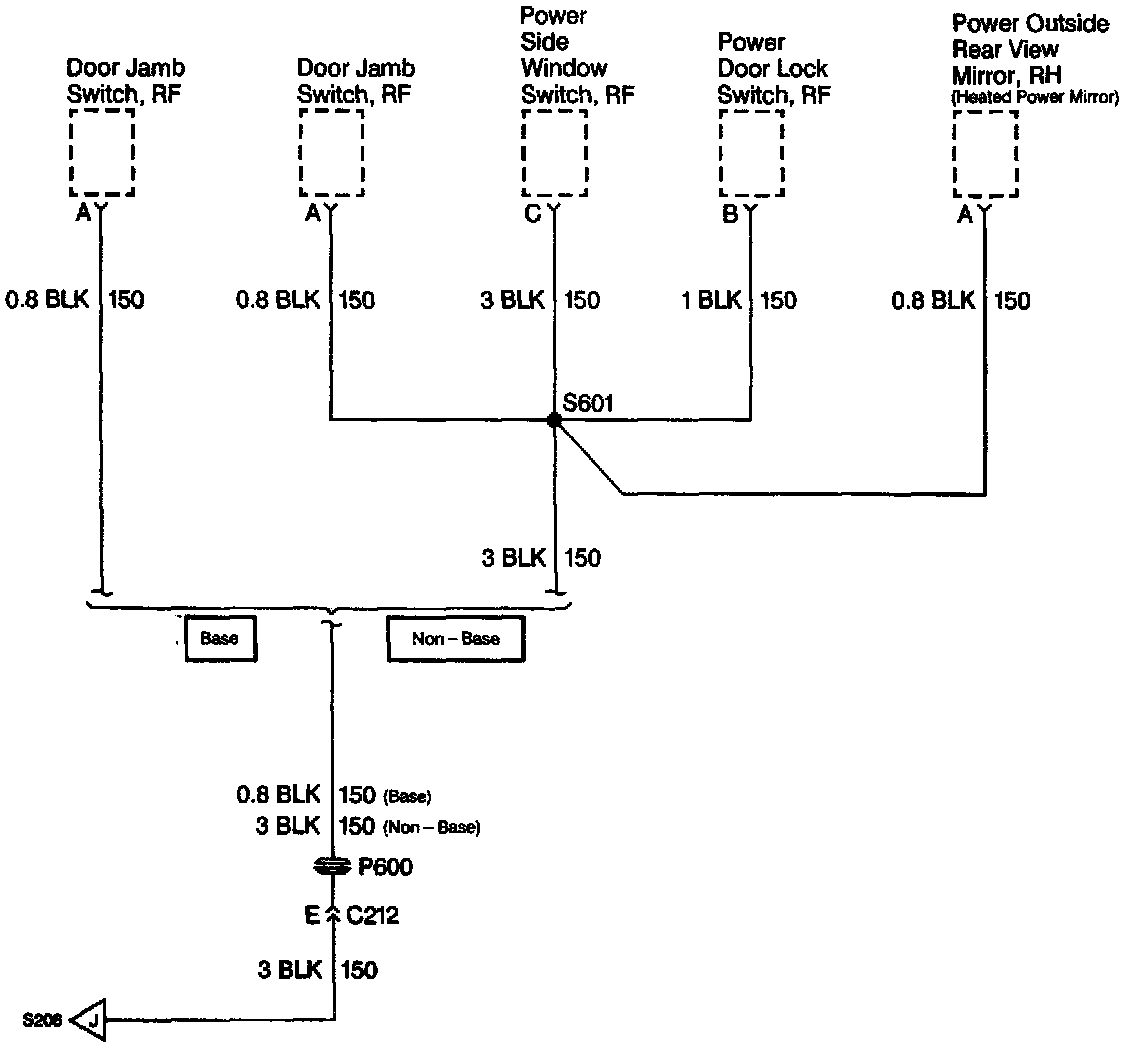

Ground Distribution (Part 4 Of 7):

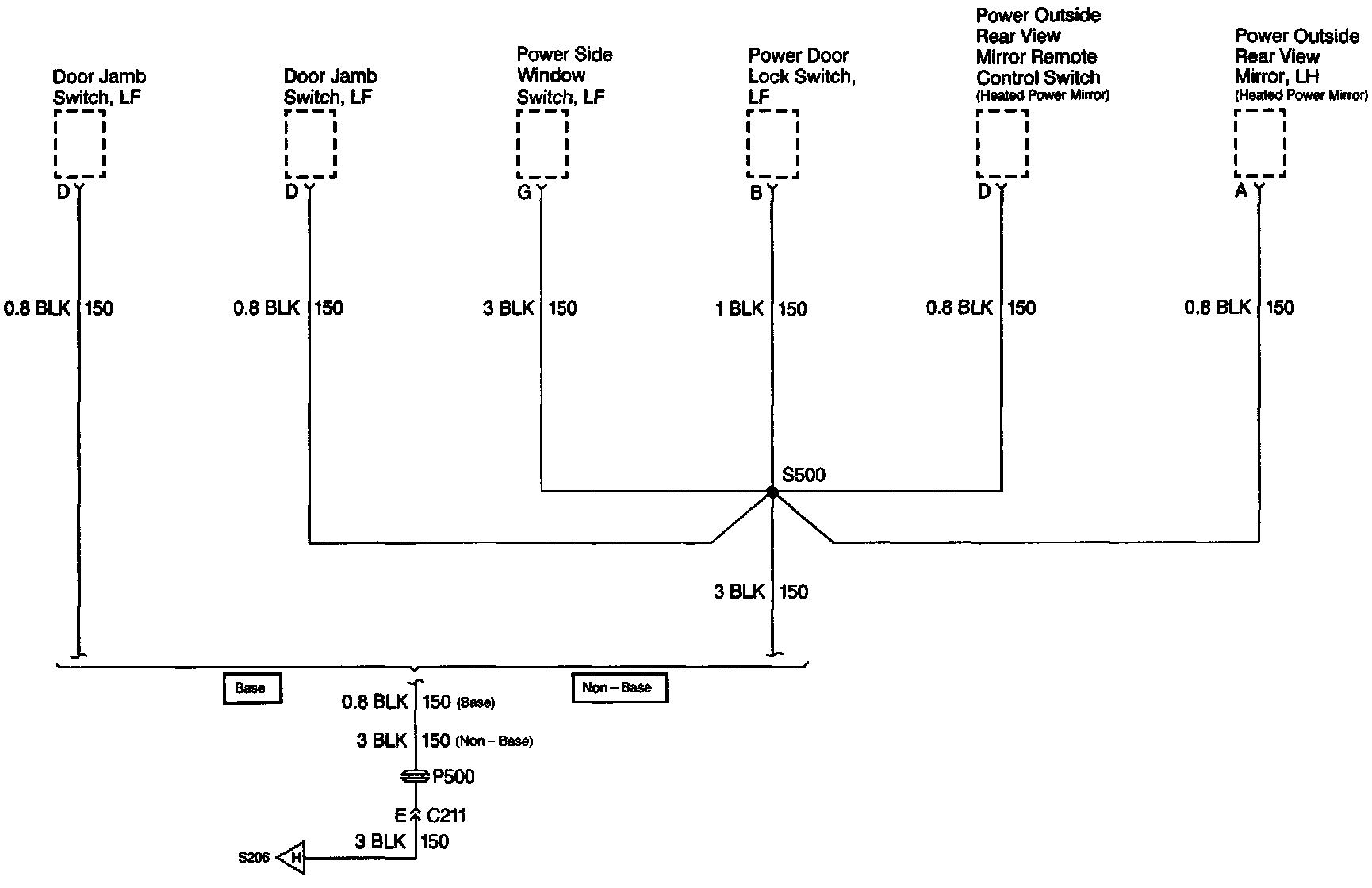

Ground Distribution (Part 5 Of 7):
