Shift Solenoid: Service and Repair

REMOVAL PROCEDURE
1. Remove the oil pan and the oil filter.

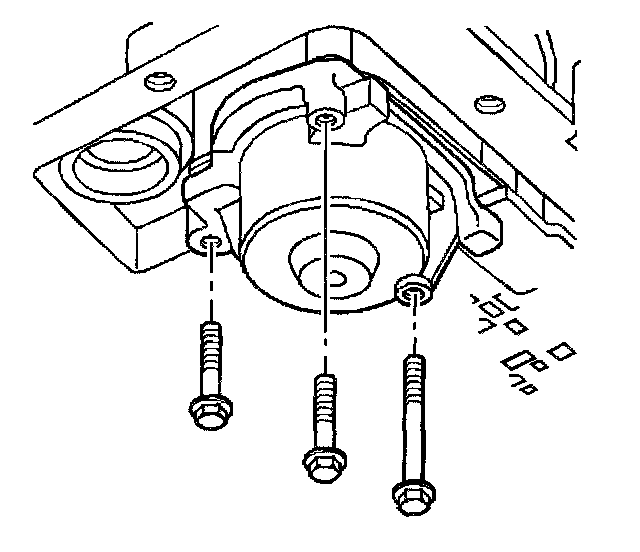

2. Remove the accumulator cover bolts.

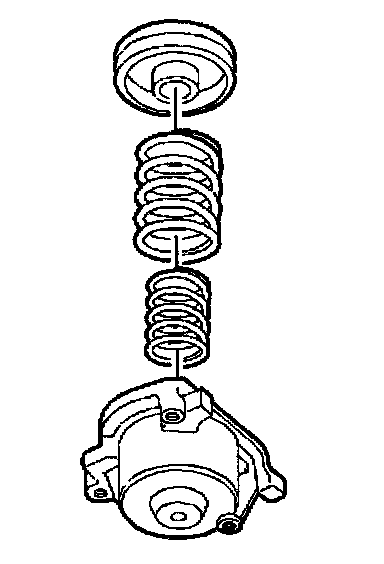

3. Remove the 1-2 accumulator cover.
4. Remove the piston.

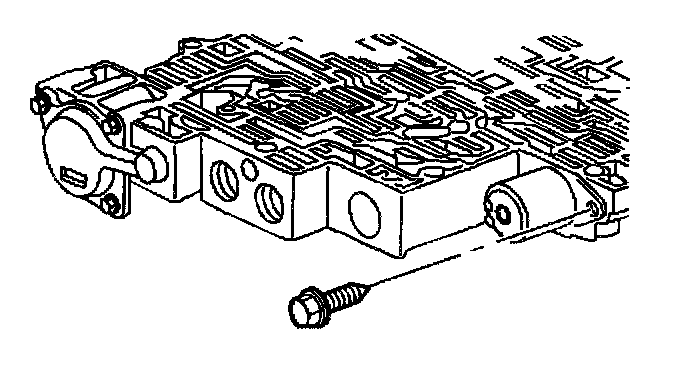

5. Remove the springs.

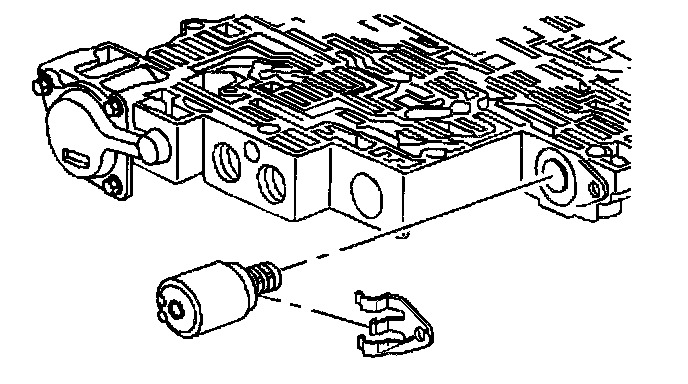

6. Disconnect the component electrical connectors.





7. Remove the pressure control solenoid retainer bolt/screw.





8. Remove the pressure control solenoid retainer.
9. Remove the pressure control solenoid.

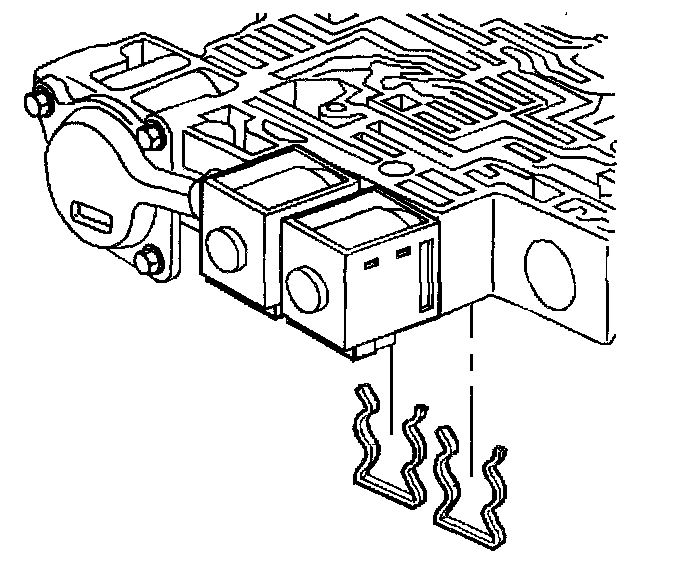

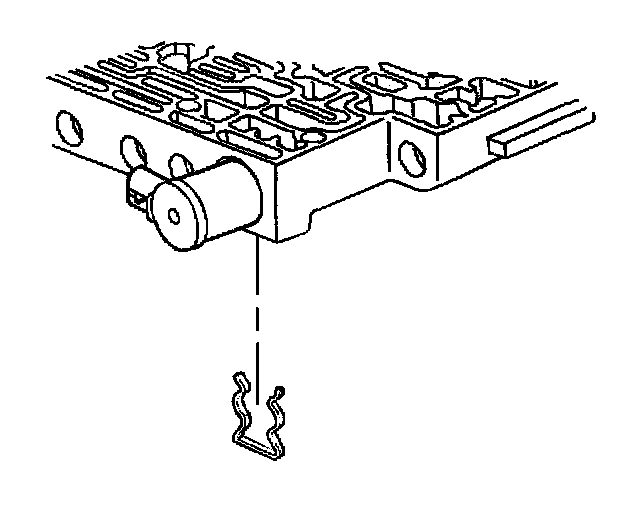

10. Remove the shift solenoid retainers.





11. Remove the shift solenoids.

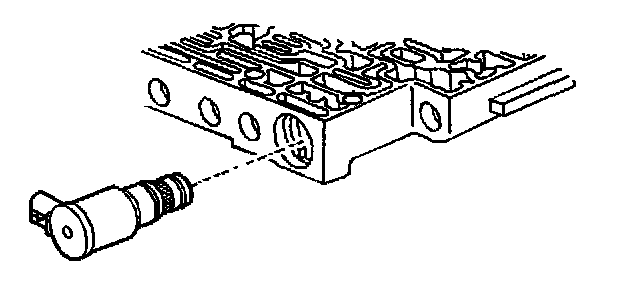

12. Remove the 3-2 control solenoid retainer.





13. Remove the control solenoid.

INSTALLATION PROCEDURE

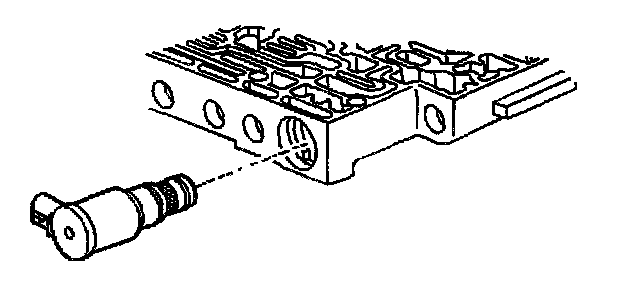

1. Install the 3-2 control solenoid.





2. Install the 3-2 control solenoid retainer.

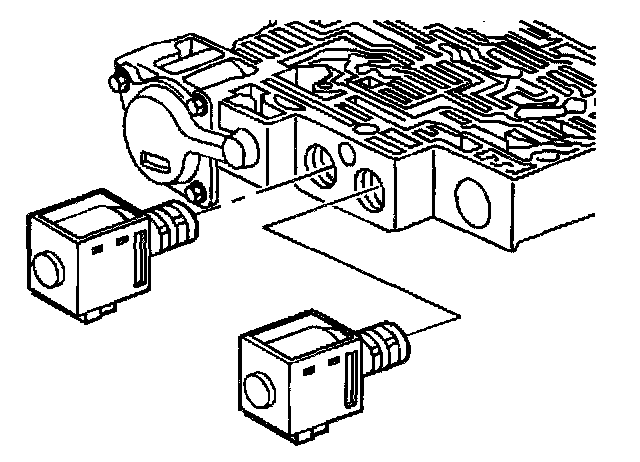

3. Install the shift solenoids.

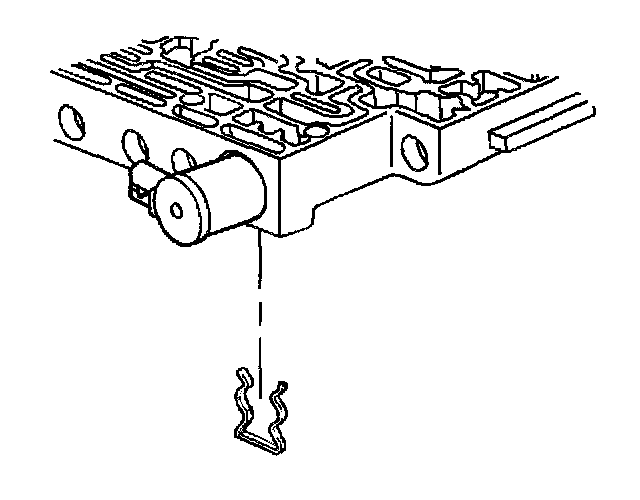

4. Install the shift solenoid retainers.

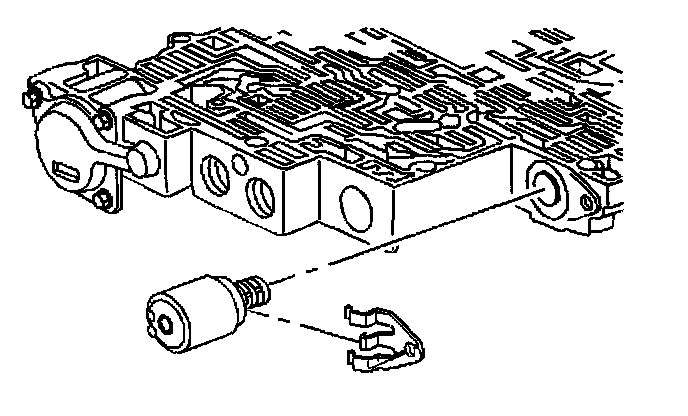

5. Install the pressure control solenoid.
6. Install the pressure control solenoid retainer.





7. Install the pressure control solenoid retainer bolt/screw.
Position the pressure control solenoid with the electrical tabs facing outboard.
8. Connect the component electrical connectors.





9. Install the 1-2 accumulator piston to the accumulator cover.
Replace piston seal.
The piston legs must face toward the case when installed.
10. Install the 1-2 accumulator springs into the piston.
11. Install the 1-2 accumulator cover.

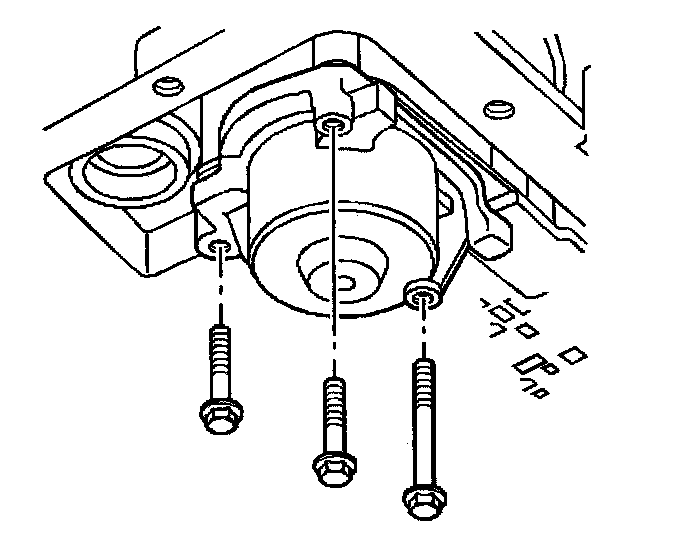

12. Install the 1-2 accumulator cover bolts.
^ Tighten the bolts to 11 Nm (97 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

13. Install the oil pan and the oil filter.
