Throttle Cable/Linkage: Description and Operation

Accelerator Controls:

DESCRIPTION

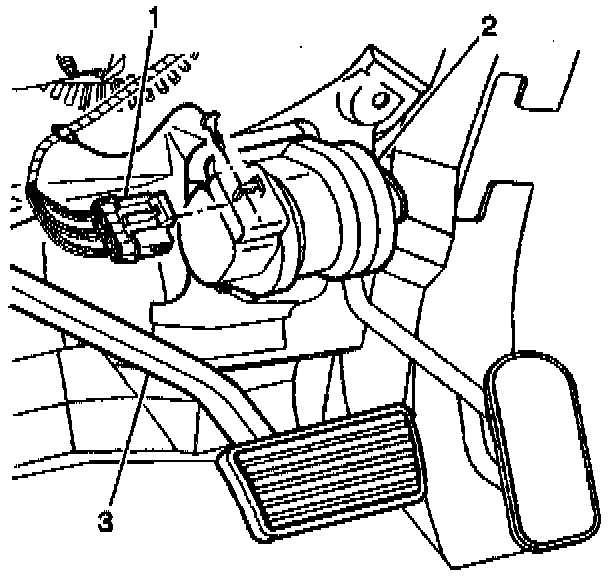

The accelerator control system is an electronically controlled throttle type with an accelerator pedal attached to an accelerator pedal position module (2). This module sends the signals to the PCM which then controls the fuel injection pump.
