Fuel Injector Line: Description and Operation

Description:

DESCRIPTION

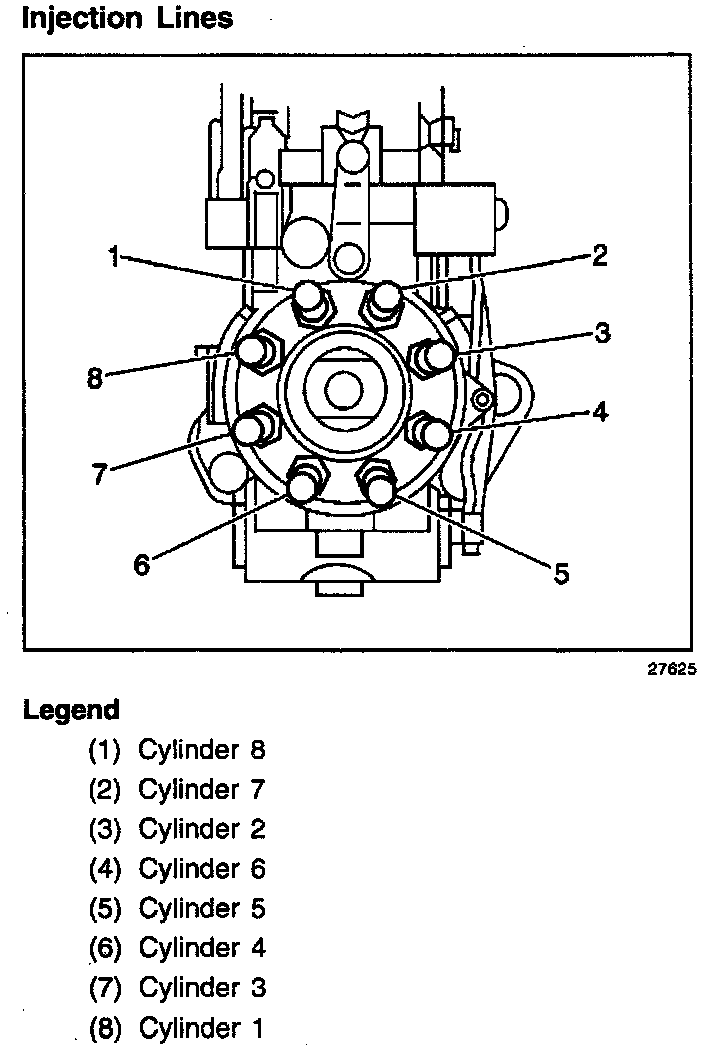

The high-pressure discharge fittings on the head of the injection pump connect to the injection nozzles with steel lines of equal length and interior volume.

OPERATION
When the engine is running, the fuel is contained in the injection lines. During engine operation, a residual pressure of approximately 500 psi is maintained in each injection line. As the injection occurs in each line, a small amount of fuel enters the line, pushing a similar amount into the nozzle at the other end with a pressure wave.
