Fuel Level Sensor: Diagrams

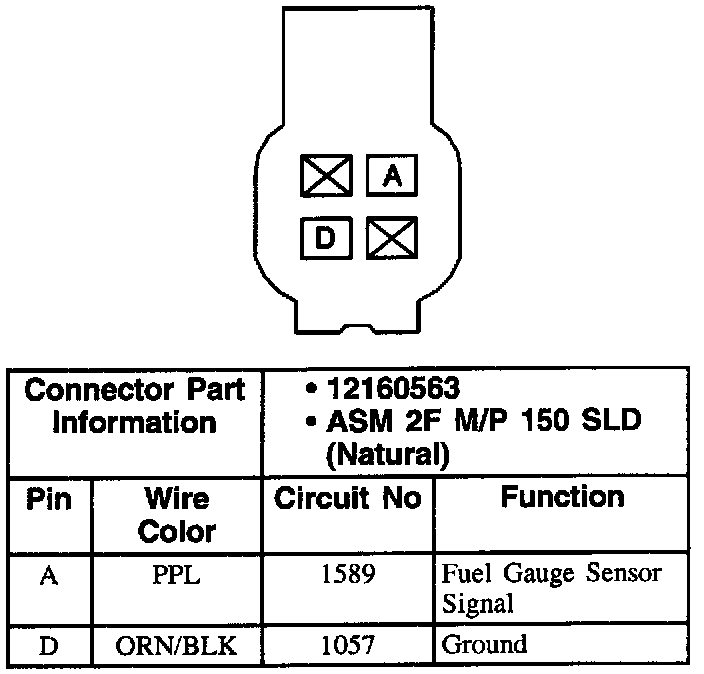

Fuel Tank Level Sender Connector (Diesel):

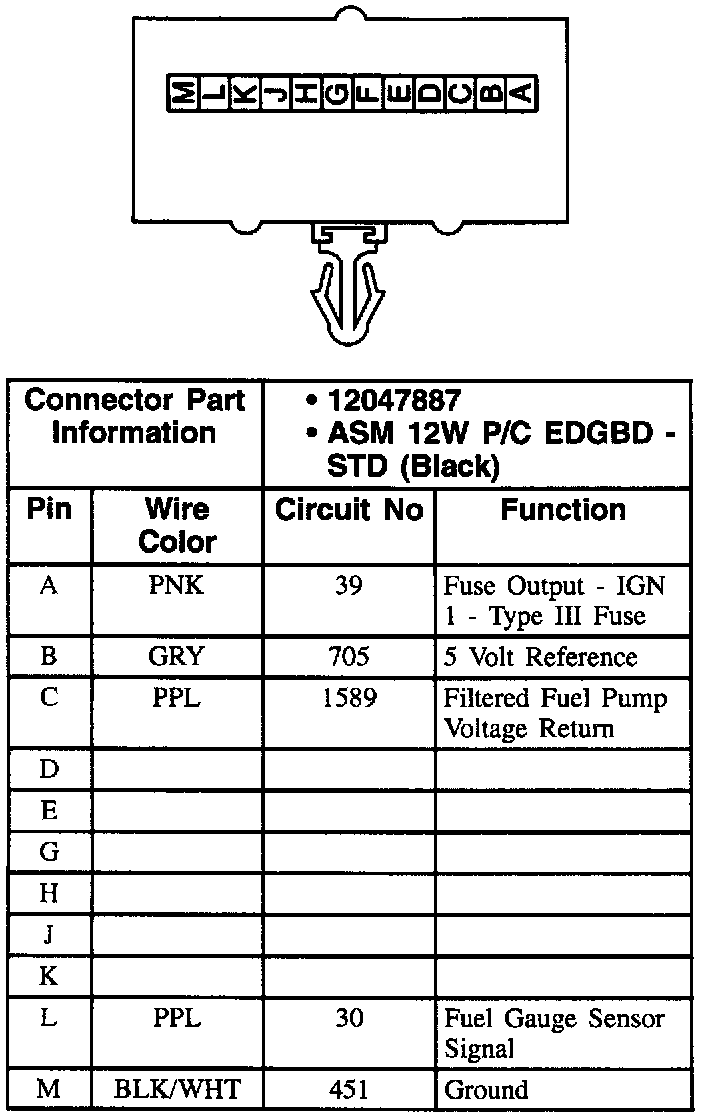

Fuel Sender Buffer Module Connector:
