Chevy Truck
>>
1998
>>
Express 1 Ton Van V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Locations
>>
Compressor Components - Disassembly
>>
Direct Mounted
Direct Mounted

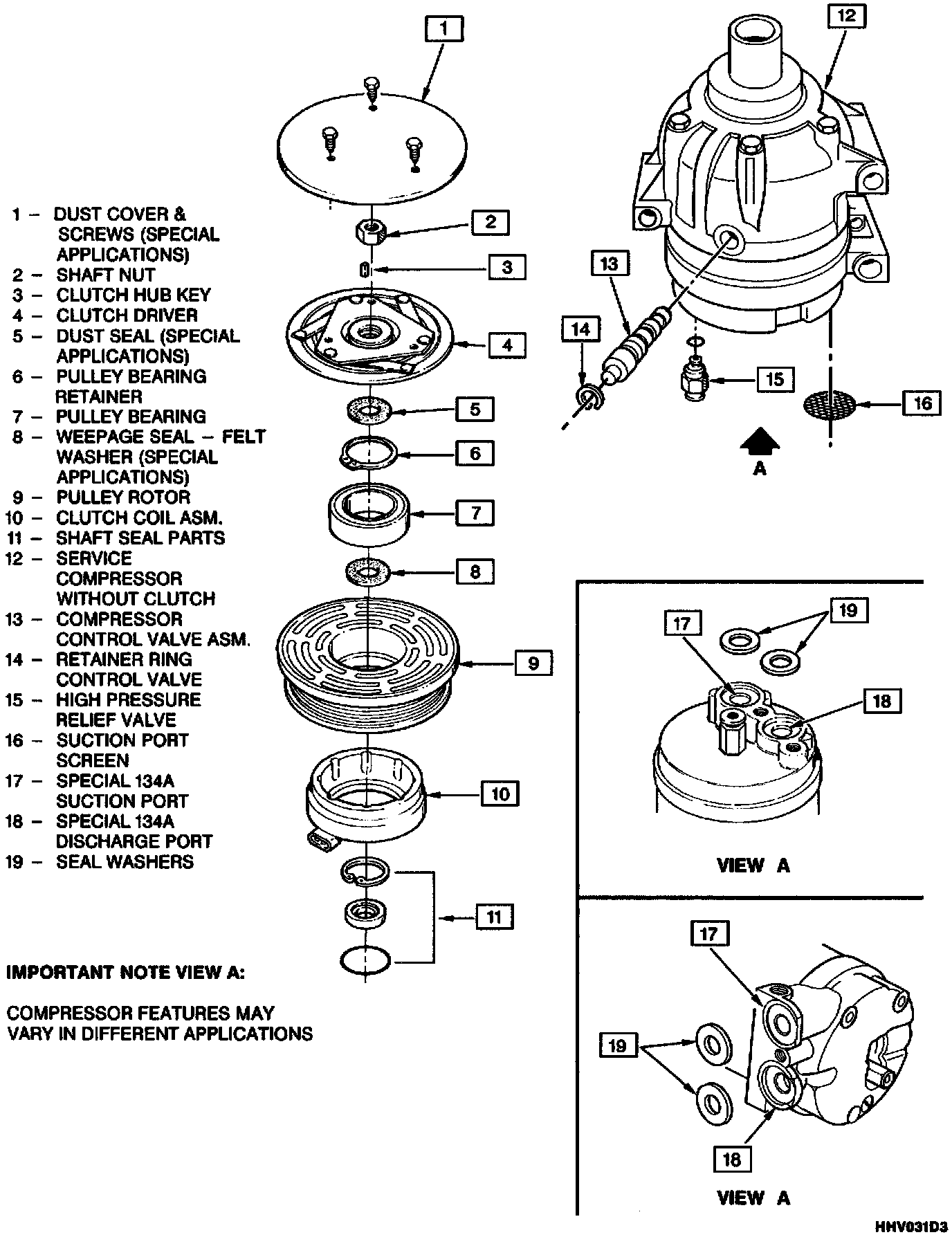

Compressor Components - Disassembled View:
