Valve Lifter Removal

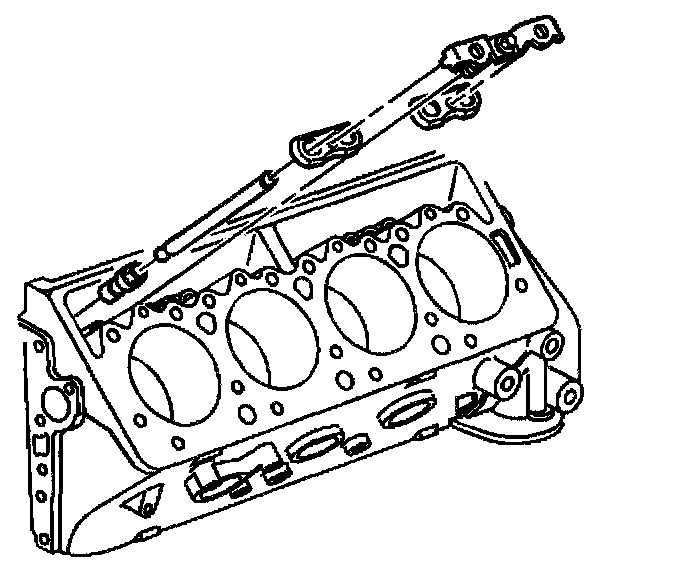

1. Remove the valve lifter retaining clamp retaining bolts.

IMPORTANT: When removing the valve lifters, place the lifters in an organizer rack. The lifters must be installed in the same bore from which they were removed.

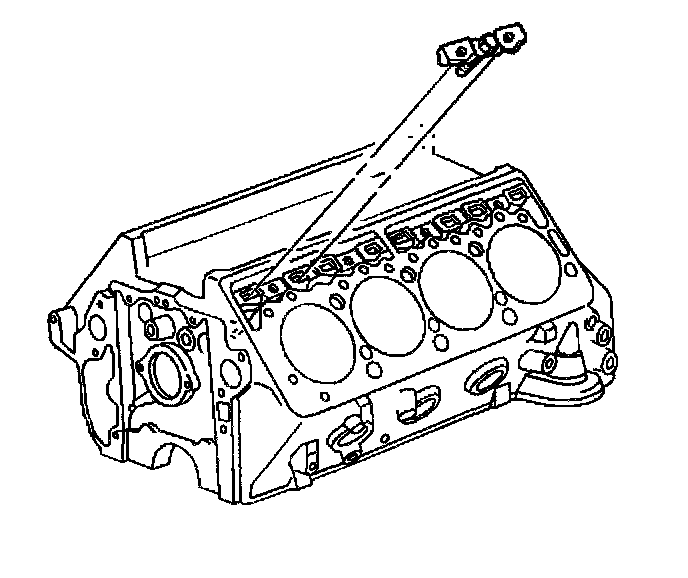

2. Remove the valve lifter retaining clamps.

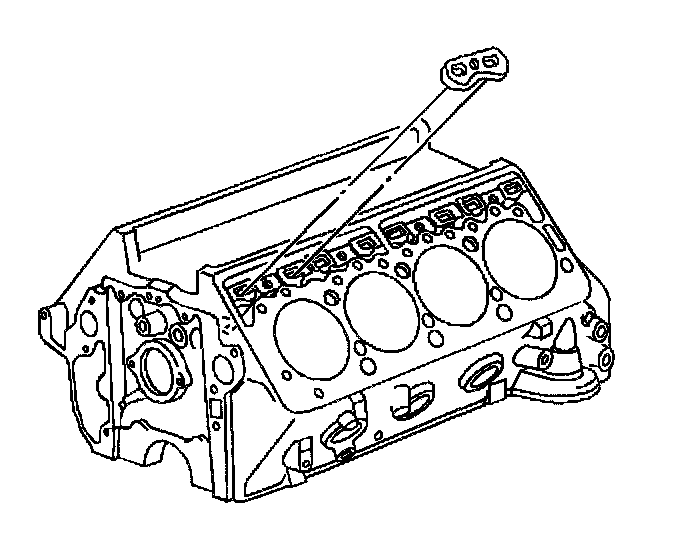

3. Remove the valve lifter guide plates.





4. Remove the valve lifters.
