Turbocharger Installation

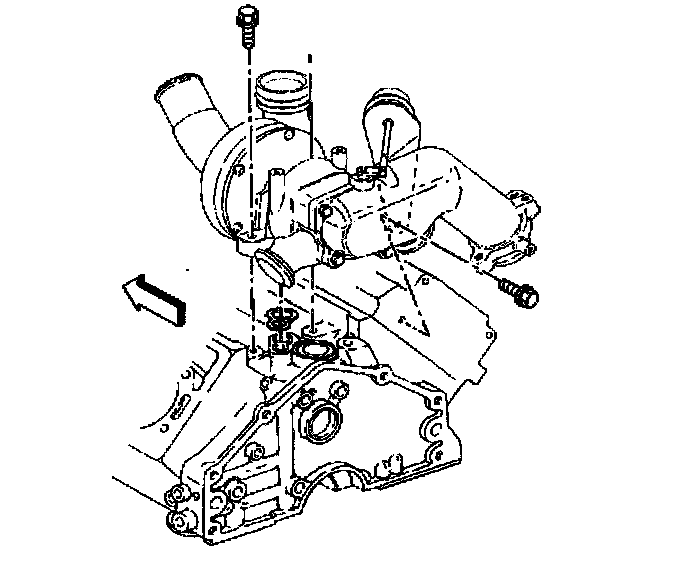

1. Install the sea] onto the engine block.
2. Install the turbocharger.
3. Install the turbocharger mounting bolts.
^ Tighten the turbocharger mounting bolts to 65 Nm (48 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

4. Install the wastegate actuator bracket mounting bolts.
^ Tighten the wastegate actuator bracket mounting bolts to 65 Nm (48 ft. lbs.).

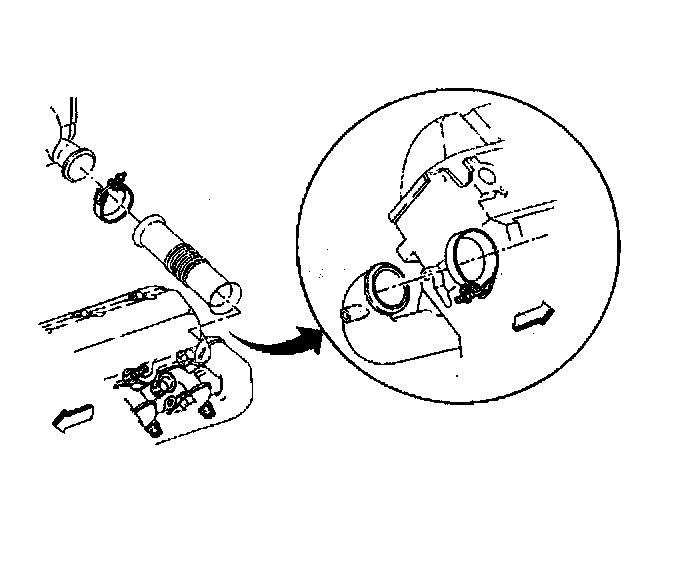

5. Slide the exhaust clamps over the exhaust manifold and turbocharger.

IMPORTANT: In order to ensure heat shield clearance, locate the exhaust pipe clamps as shown.





6. Install the right hand side exhaust pipe.
7. Place the clamps in the correct position.
^ Tighten the clamps to 10 Nm (90 inch lbs.).

IMPORTANT: Tighten the clamps at the exhaust manifold end first.

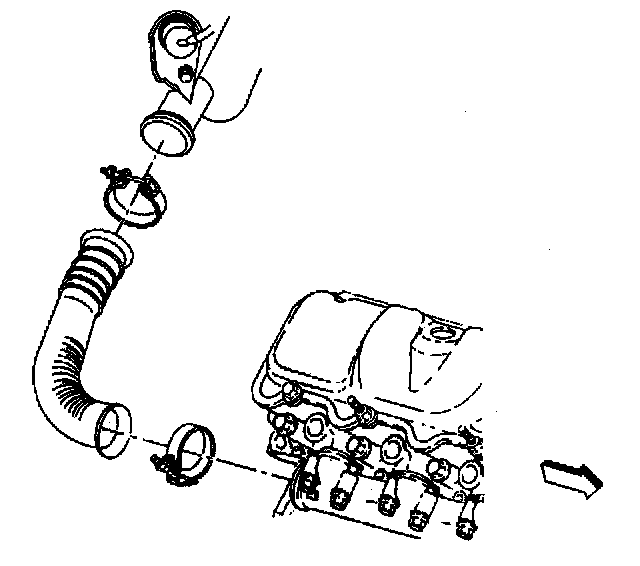

8. Install the left hand side exhaust pipe.
9. Place the clamps in the correct position.
^ Tighten the clamps to 10 Nm (90 inch lbs.).

IMPORTANT: Tighten the clamps at the exhaust manifold end first.
