Oil Pump Installation

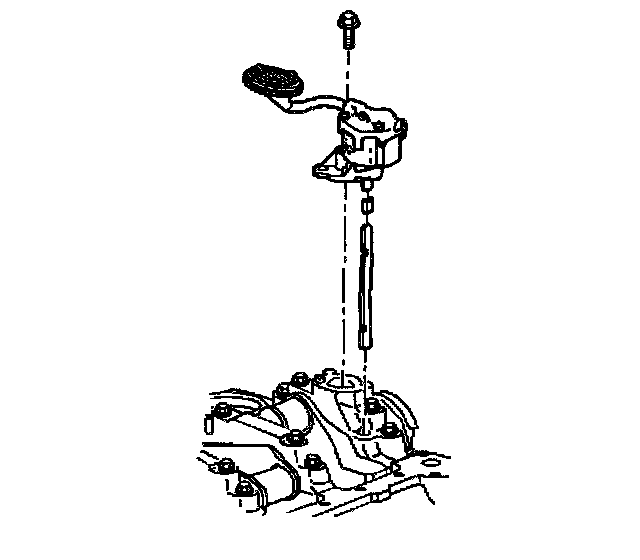

1. Install the oil pump with the driveshaft.
2. Install the oil pump bolts.
^ Tighten the oil pump bolts to 90 Nm (65 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.
