Oil Pump Assemble

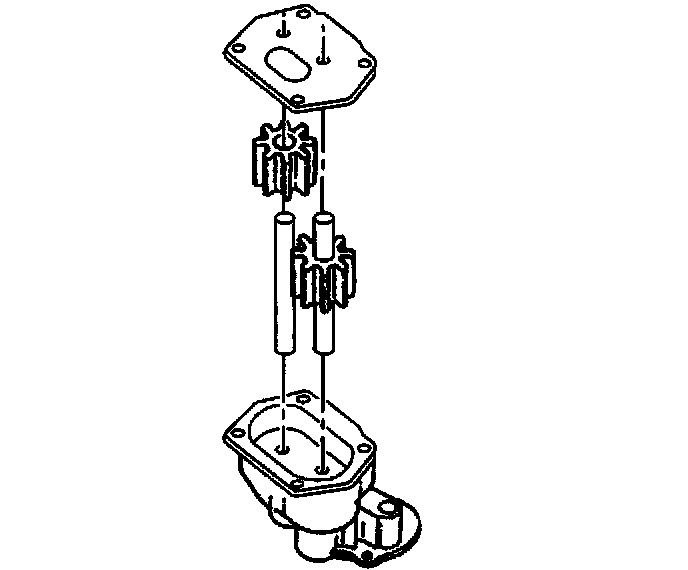

1. Install the driven gear.
2. Install the idler shaft.
3. Install the drive gear with the shaft. Align the marks made during disassembly.

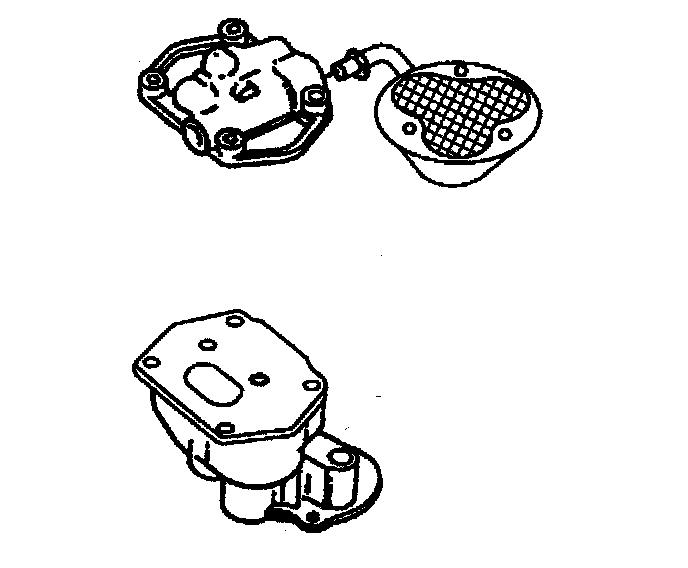

4. Install the spacer plate.





5. Install the oil pump cover.





6. Install the oil pump cover screws.
^ Tighten the bolts to 16 Nm (12 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

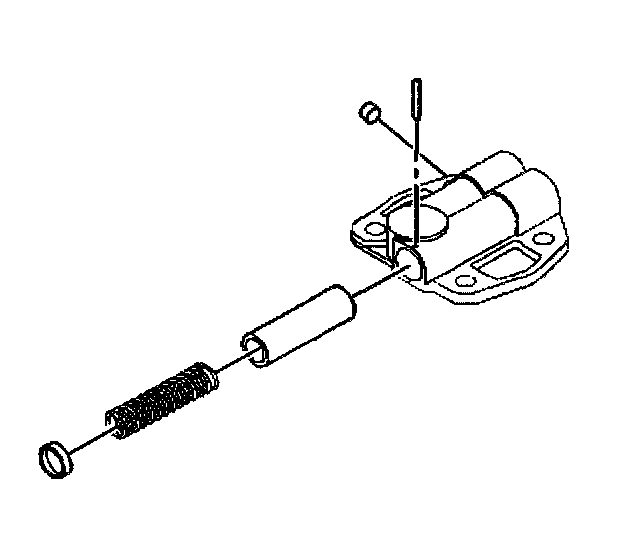

7. Install the pressure regulator valve.
8. Install the spring.
9. Install the roll pin.

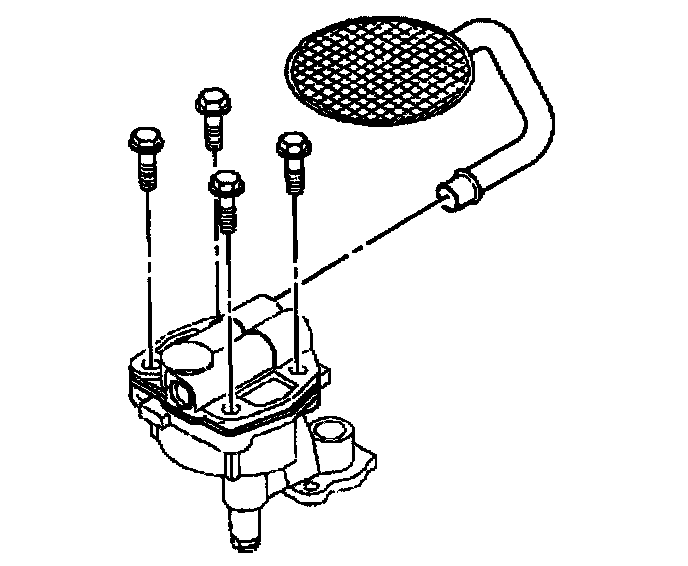

10. Install the pick-up tube and screen assemble if necessary. Align the tube in the same location as removed from.
11. Prime the oil pump by filling the cavity with clean engine oil.

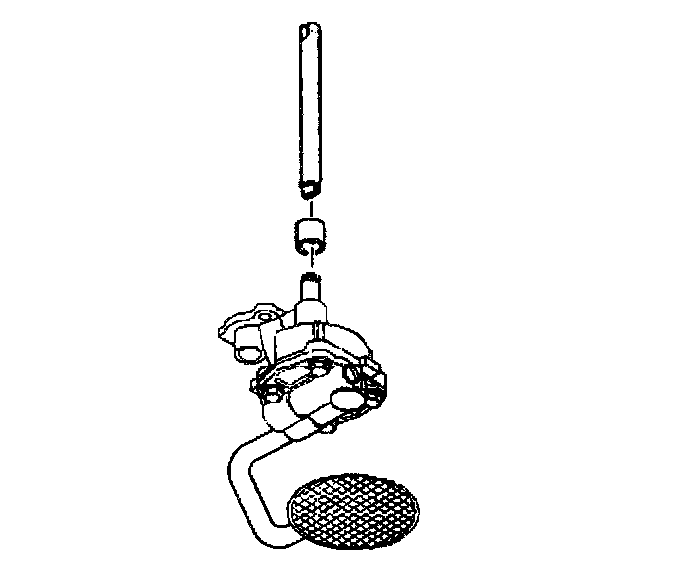

12. Inspect the oil pump.
^ Turn the drive shaft by hand and check for smooth rotation.
^ If the oil pump does not rotate smoothly, check for proper assembly.
^ If necessary replace the oil pump assembly.
