Oil Pan Removal

1. Remove the transmission oil cooler line retaining clip retaining nuts.
2. Remove the transmission oil cooler line retaining clip.

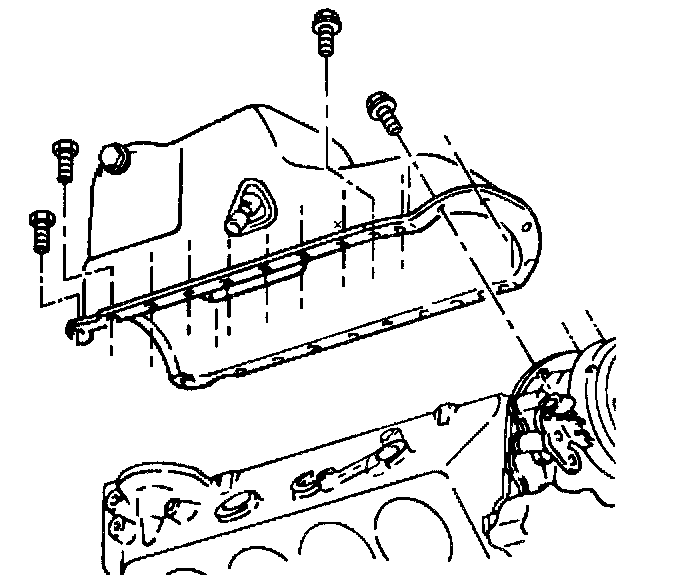

3. Remove the oil pan retaining bolts.
4. Remove the oil pan.

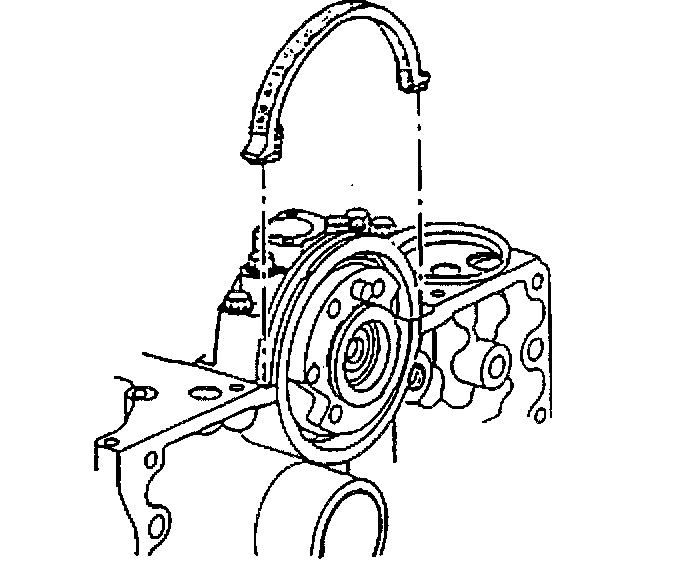

5. Remove the seal.
