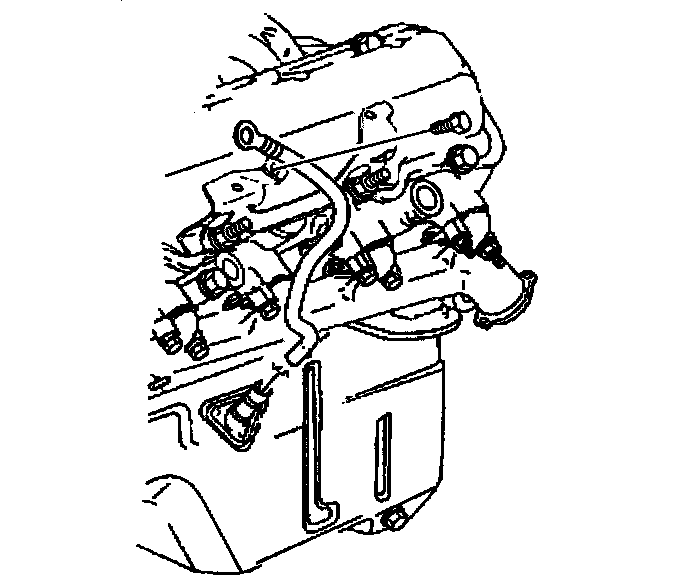

Oil Level Indicator and Tube Installation

1. Install a new O-ring seal to the oil level indicator tube.
Install the oil level indicator tube to the engine.
2. Install the oil level indicator tube bracket bolt.
^ Tighten the bolt to 4 Nm (35 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.
