Exhaust Manifold Installation

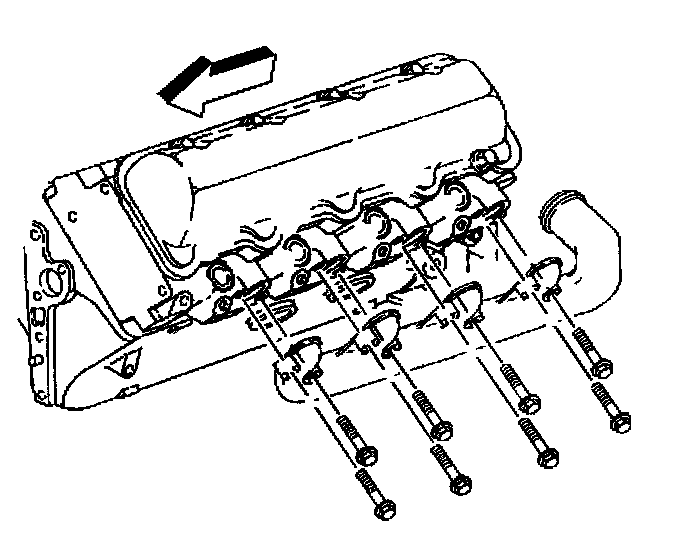

1. Install the left exhaust manifold and the bolts.
^ Tighten the bolts to 35 Nm (26 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

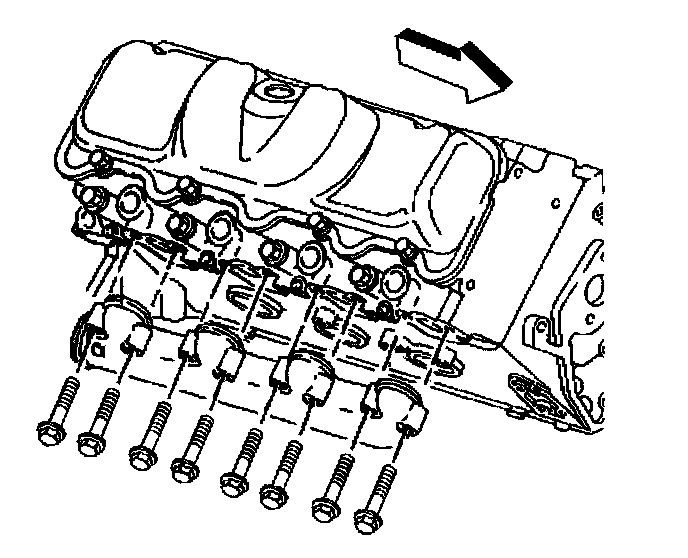

2. Install the right exhaust manifold and the bolts.
^ Tighten the bolts to 35 Nm (26 ft. lbs.).
