Camshaft Removal

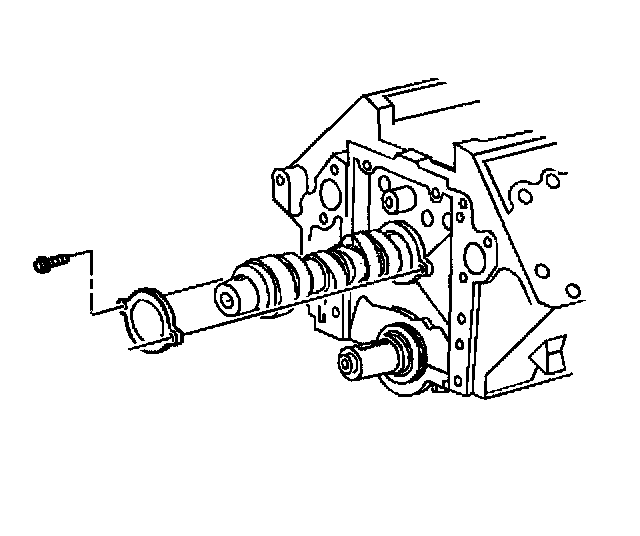

1. Remove the camshaft thrust plate retaining bolt
2. Remove the camshaft thrust plate.

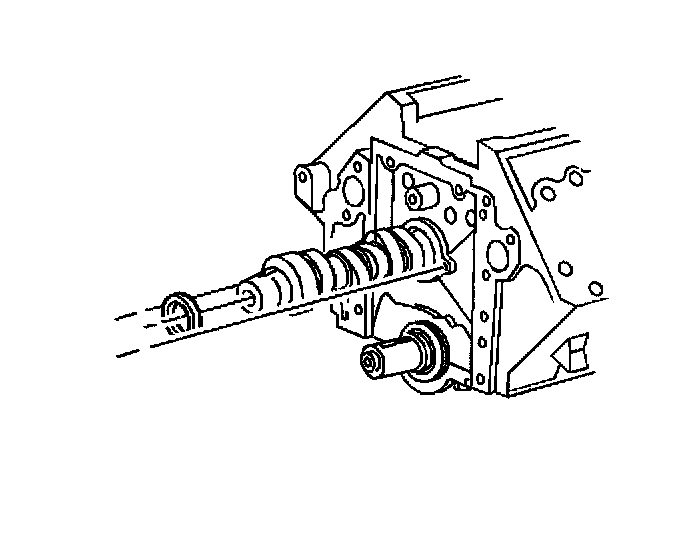

3. Remove the camshaft thrust plate spacer.

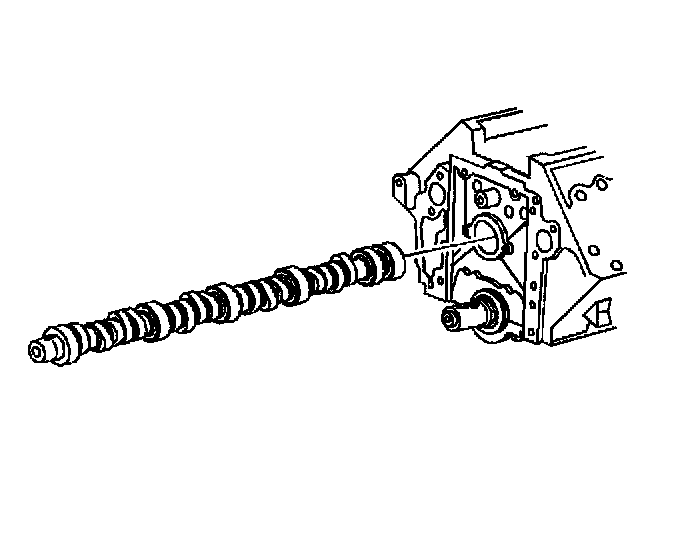

4. Remove the camshaft.

IMPORTANT: Pull the camshaft from the engine cylinder block carefully to avoid damage to the camshaft bearings.
