Accessory Installation

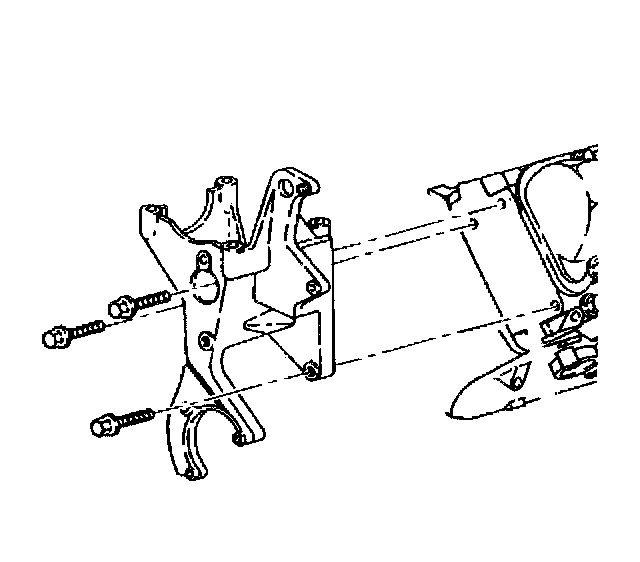

1. Install the left accessory/lift bracket.
2. Install the left accessory/lift bracket retaining bolts.
^ Tighten the bolts to 50 Nm (37 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the left accessory/lift bracket retaining nut (if equipped).
^ Tighten the nut to 50 Nm (37 ft. lbs.).





4. Install the vacuum pump.
5. Install the vacuum pump retaining bolts.
^ Tighten the bolts to 25 Nm (119 ft. lbs.).

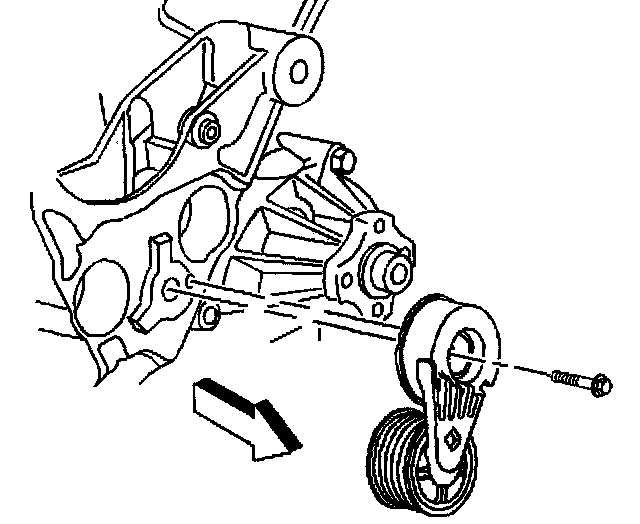

6. Install the drive belt tensioner.
7. Install the drive belt tensioner retaining bolt.
^ Tighten the bolts to 50 Nm (37 ft. lbs.).
