Passlock Sensor

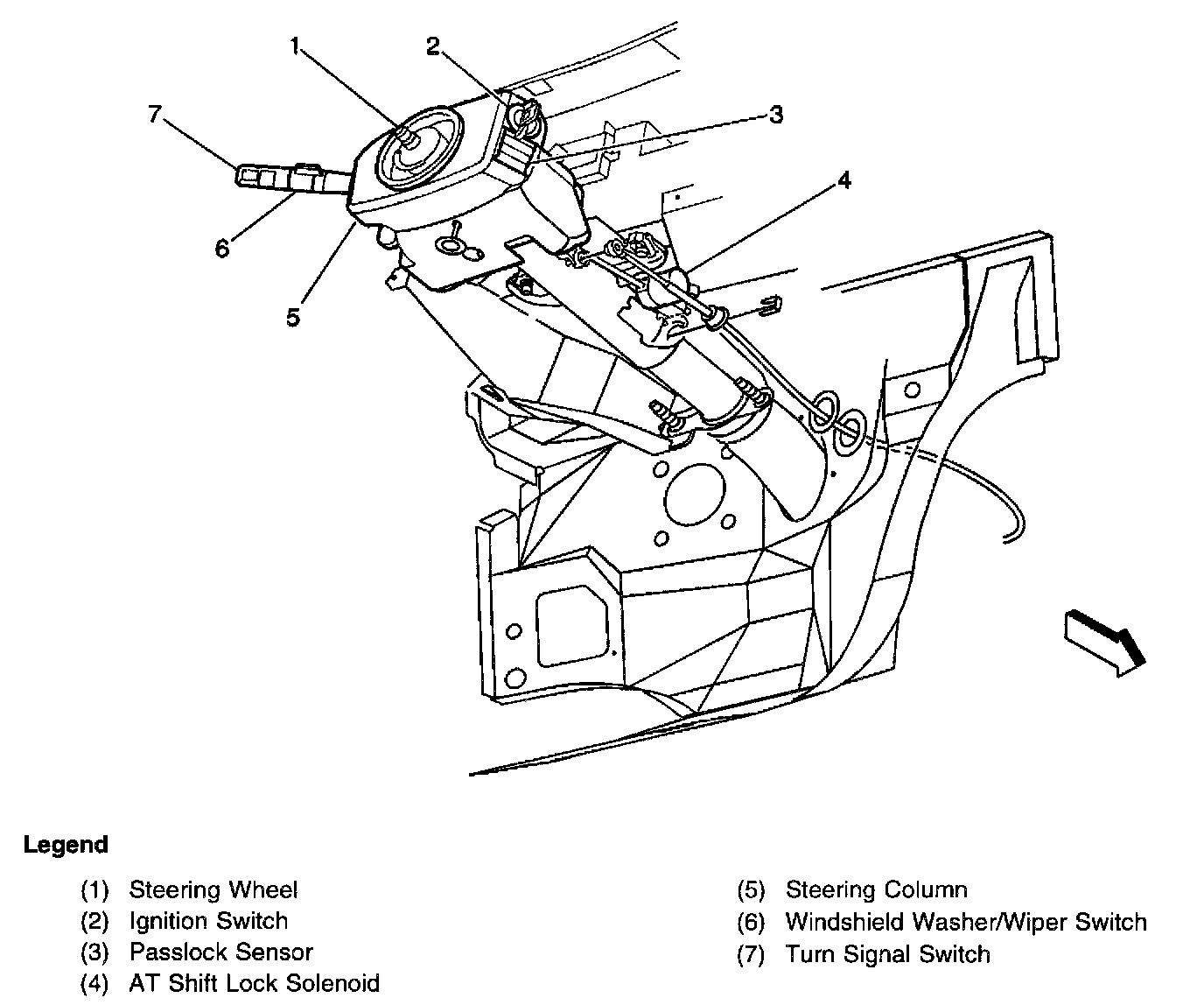

Steering Column View:

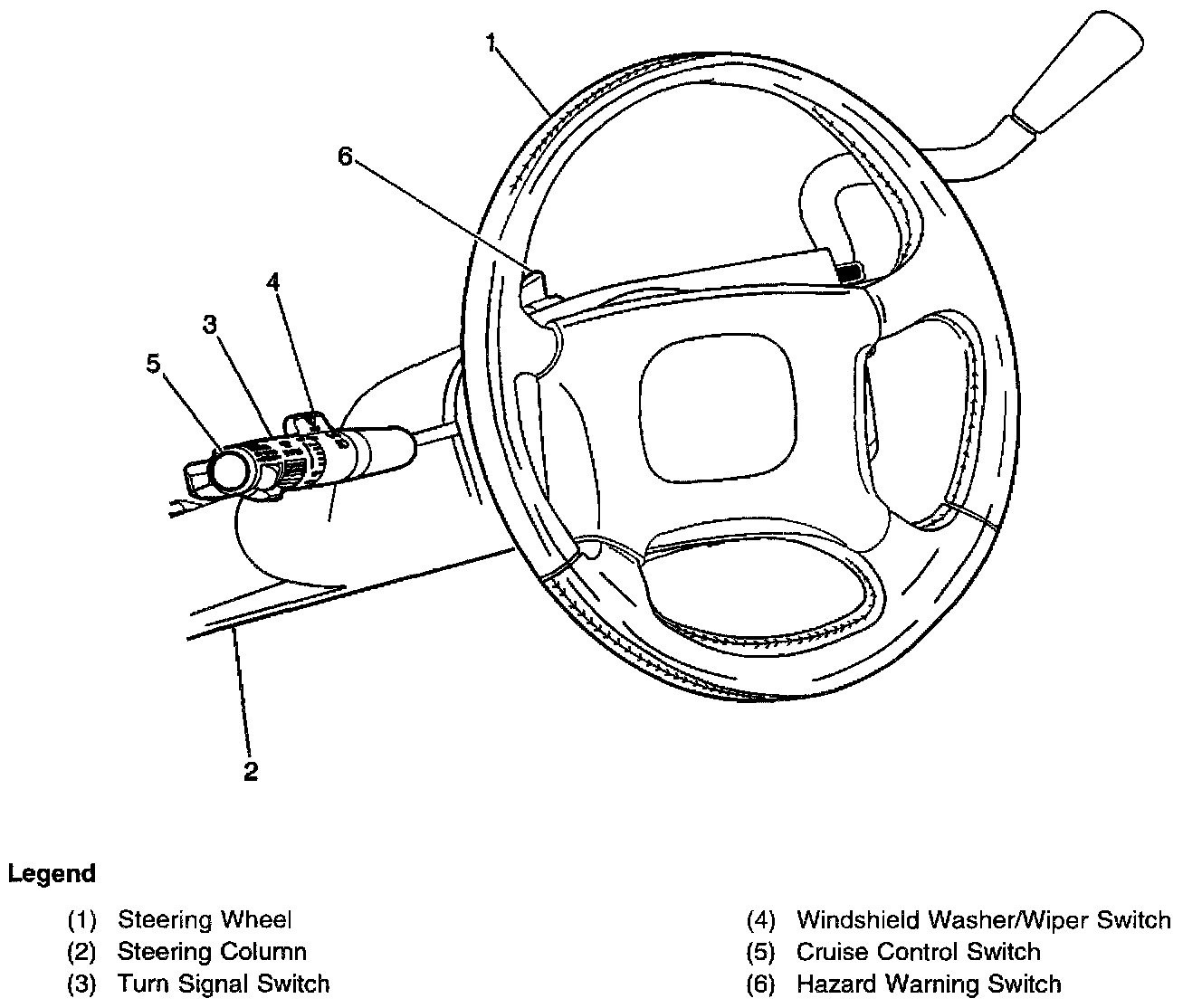

Steering Wheel, Steering Column, Turn Signal Switch, Windshield Wiper/Washer Switch, Cruise Control Switch, Hazard Warning Switch:

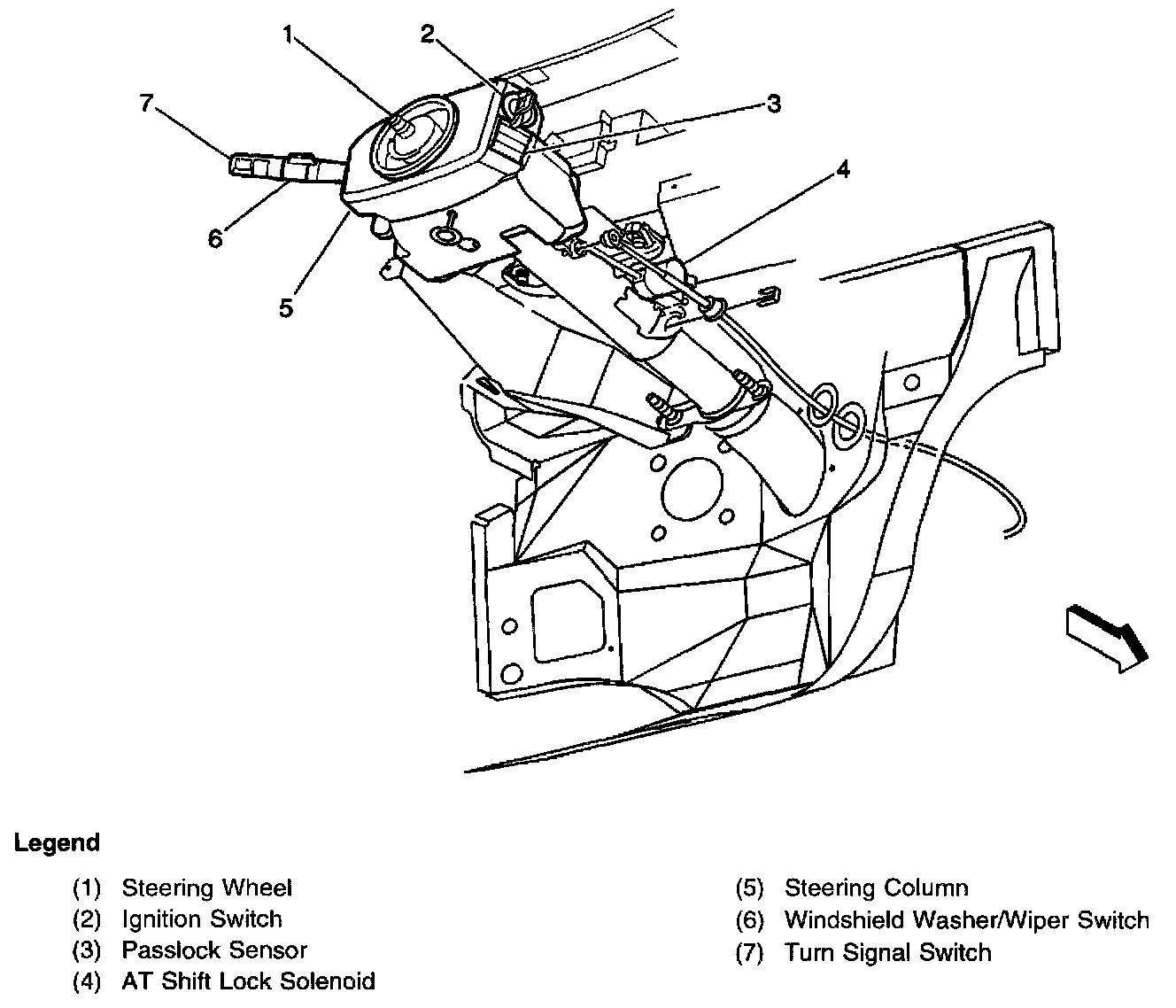

Steering Column View:
