Direct Clutch Assembly Removal

^ Tools Required
- J 38733 Direct Clutch Assembly Remover

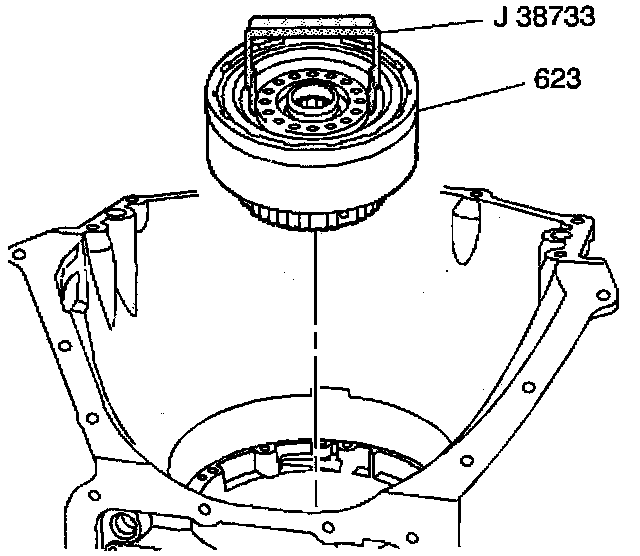

Remove the direct clutch housing (623). Use the J 38733.
